Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual 299
Find Device LeCroy Corporation
5. Select the UTD Version as UTD 1.3 (for devices supporting up to SATA 2.6
specification) or UTD 1.4 (for devices supporting up to SATA 3.0 specification).
6. Select the Compliance Type as Host or Device.
7. Select the Device Type as ATA or ATAPI.
8. When testing SSD devices, select the SSD Drive checkbox, to ensure correct test
results.
9. To view failed test traces in sample viewer check, the Automatically load failed test
traces check box.
10. To save the failed test traces only, check the Save only failed test traces check box.
11. Enter a path and file name for the Compliance Report file, or use the default file
name and path: 
C:\Program Files\LeCroy\SATA Protocol Suite\User\Compliance_Device1.rtf
12. Enter a path and file name for the Saved Traces, or use the default folder: 
C:\Program Files\LeCroy\SATA Protocol Suite\User\
13. After you select tests, click Start.
14. The test runs and after a brief period of time displays the result.

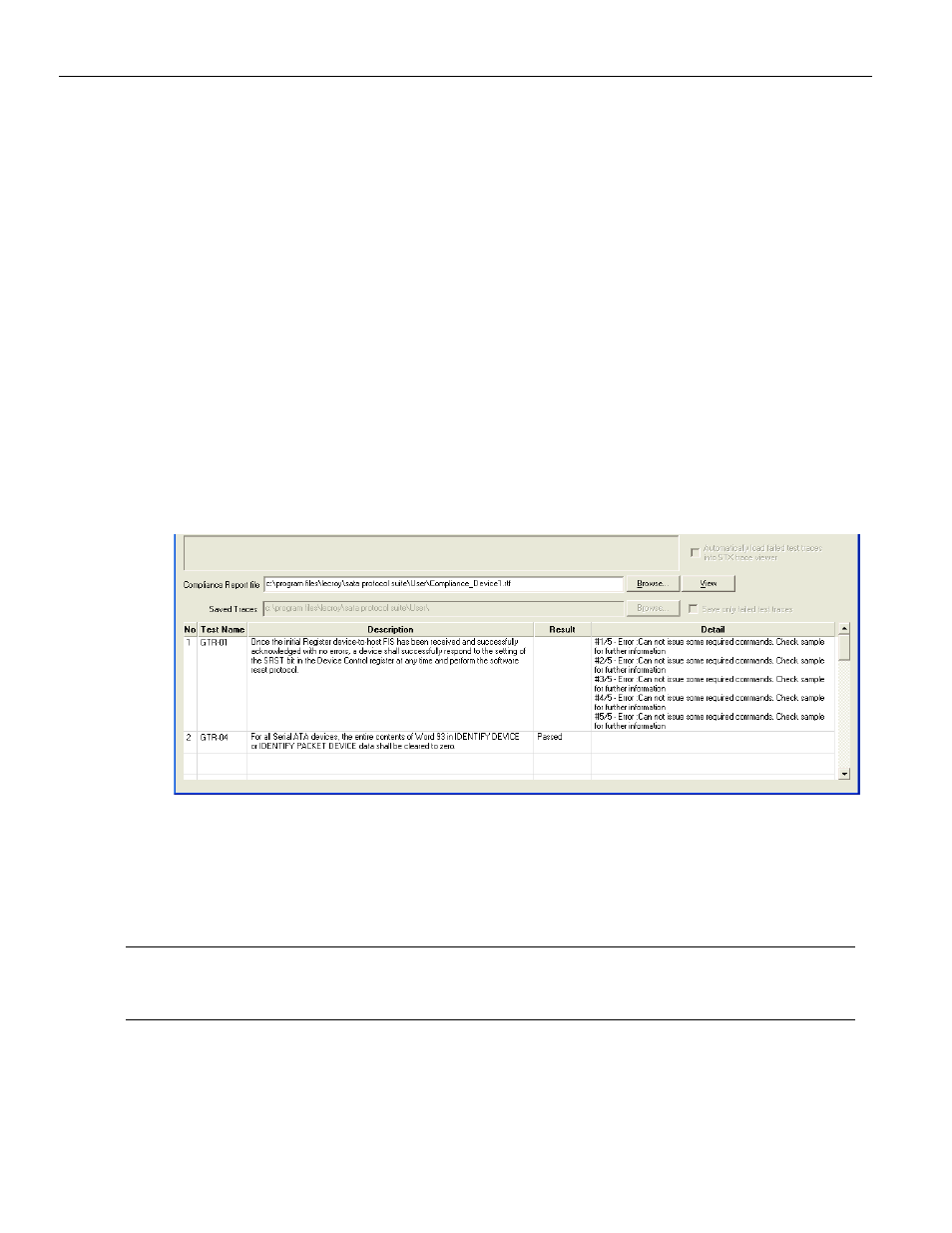

Figure 3.139: SATA: Compliance Test Result
15. To save the current compliance setup for later use, click the Save button to open the
Save As dialog. Assign a meaningful name to the setup and save it as a *.cst
compliance file.
16. To run a previously defined setup, click the Load button and choose a setup.
Note: When you are running Compliance Test, do not connect the analyzer to the Host if testing a
Device. Do not connect the analyzer to the Device if testing Host. Such improper connections can
impact compliance‐test result validity.
