Outgoing Frame Settings
Before selecting Outgoing Frame Settings, select the Types Of Frames and the
Frame Number on which to inject an error. Then check Outgoing Frame in the Generate
Error On area and then the enabled Settings button to display the Outgoing Frame
Setting dialog.

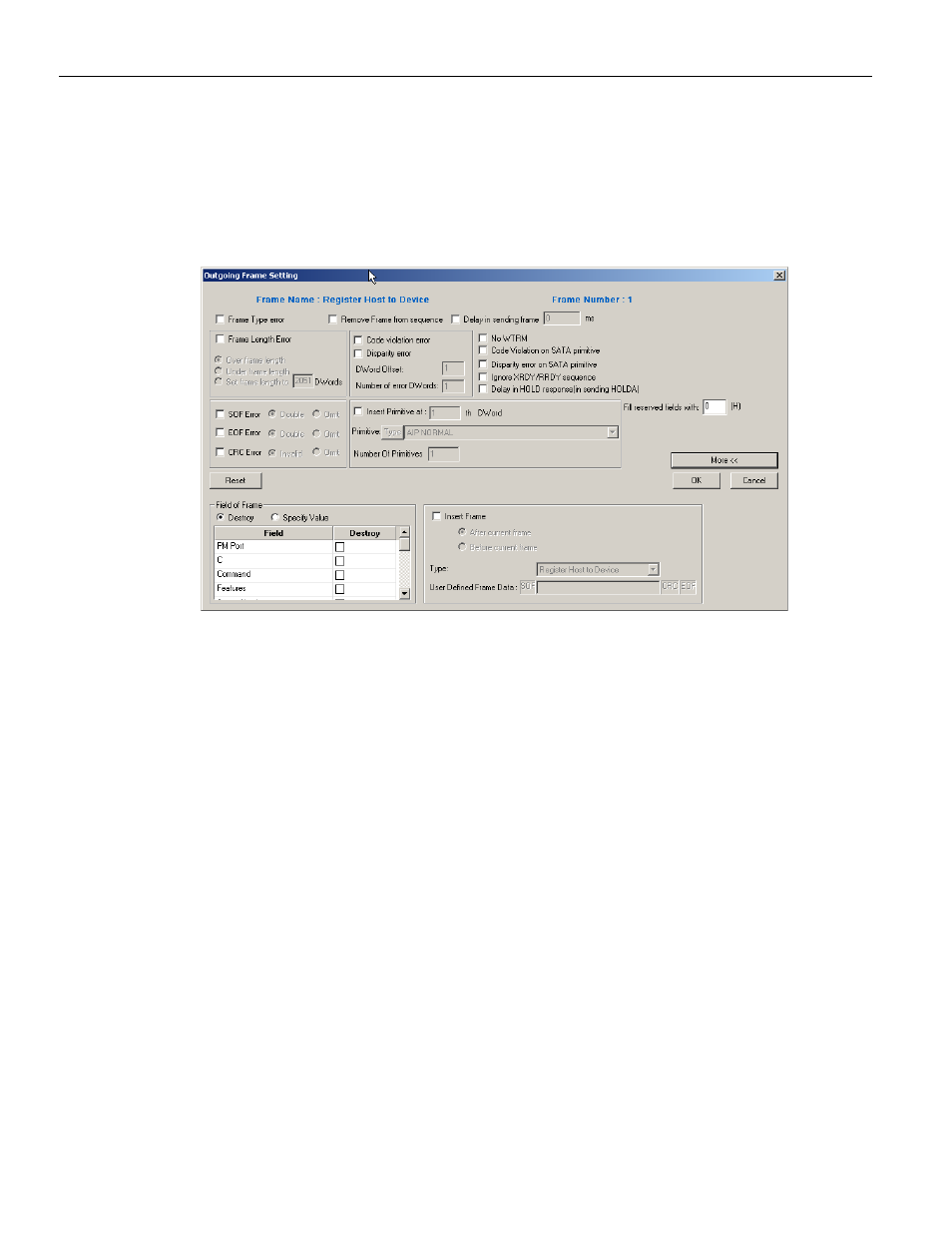

Figure 2.181: Outgoing Frame Setting Dialog
Frame Type Error
Check this to introduce a frame type error.
Remove Frame from sequence
Check this to remove frame from sequence.
Delay in sending frame
Check this to delay sending frame and enter a value for the delay.
Additionally check:
 No WTRM
 Code Violation on SATA primitive
 Disparity error on SATA primitive
 Ignore XRDY/RRDY sequence
 Delay in HOLD response (in sending HOLDA)
Frame Length Error
Check Frame Length Error, choose the type of error to introduce and click OK.
Code violation and Disparity error
Check these and specify DWORD offset and the number of error DWORDs.
