LeCroy Corporation Easy Mode (Pre‐Defined Setups)
44 Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual

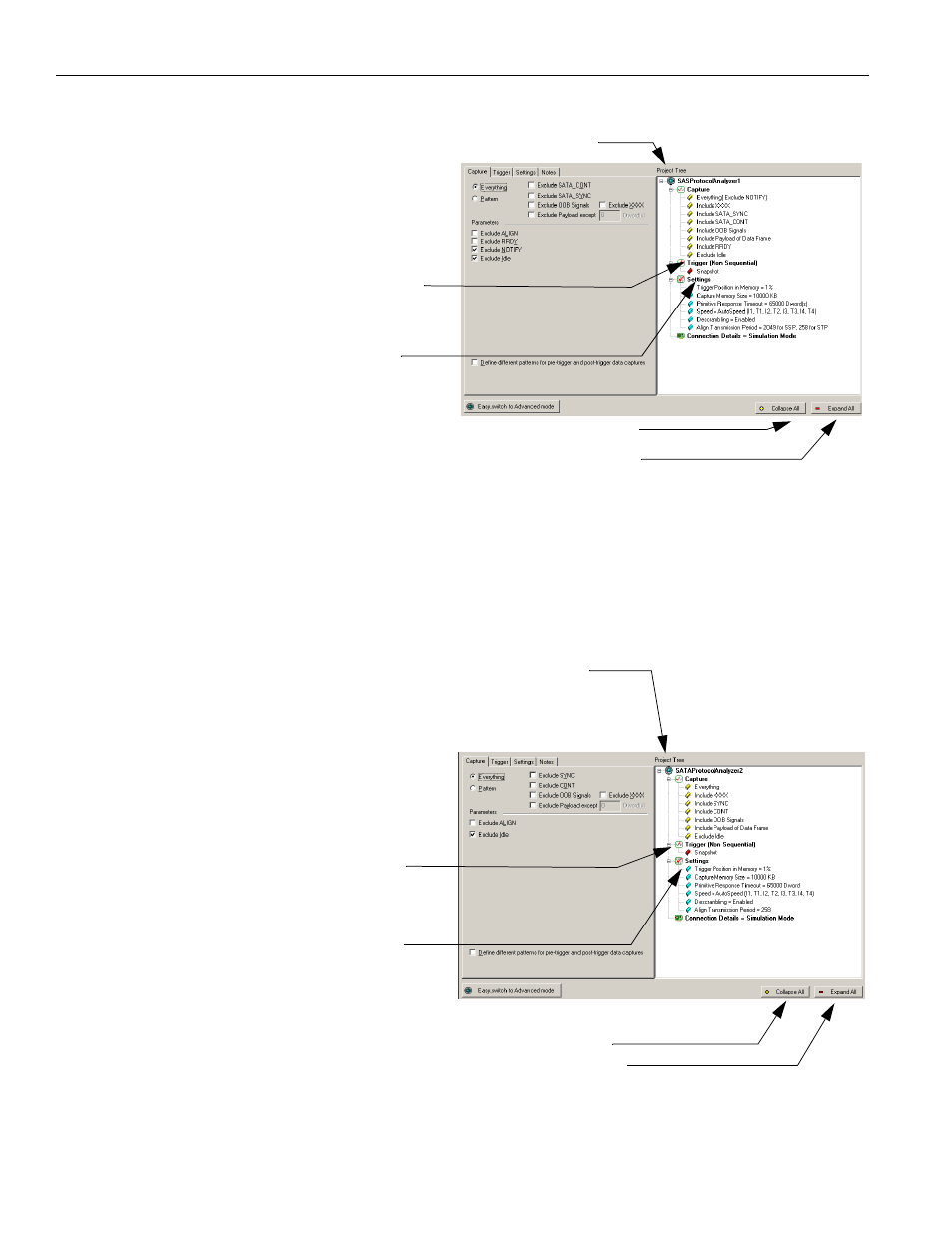

Figure 2.1: SAS: New Analysis Project Dialog
The New Project dialog opens with default settings to capture Everything on the bus and
to Trigger On on Snapshot. (The analyzer captures everything immediately without
triggering on anything in particular.)
SATA: On the Analyzer Menu Bar, click File > New > Protocol Analyzer to open a SATA
Protocol Analyzer dialog.
Figure 2.2: SATA: New Analysis Project Dialog
Project Tree display
What analyzer triggers on
Capture memory settings
Collapse All button hides details in Project Tree
Expand All button expands collapsed Project Tree
Project Tree display
What analyzer triggers on
Capture memory settings
Collapse All button hides details in Project Tree
Expand All button expands collapsed Project Tree
