Protocol errors – Teledyne LeCroy STX M6-1 SAS_SATA Protocol Analyzer User Manual User Manual
Page 81
Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual
79
Easy Mode (Pre‐Defined Setups)
LeCroy Corporation
Protocol Errors
Double‐click Protocol Errors in the Patterns window of the Trigger dialog to open the
Protocol Errors dialog.

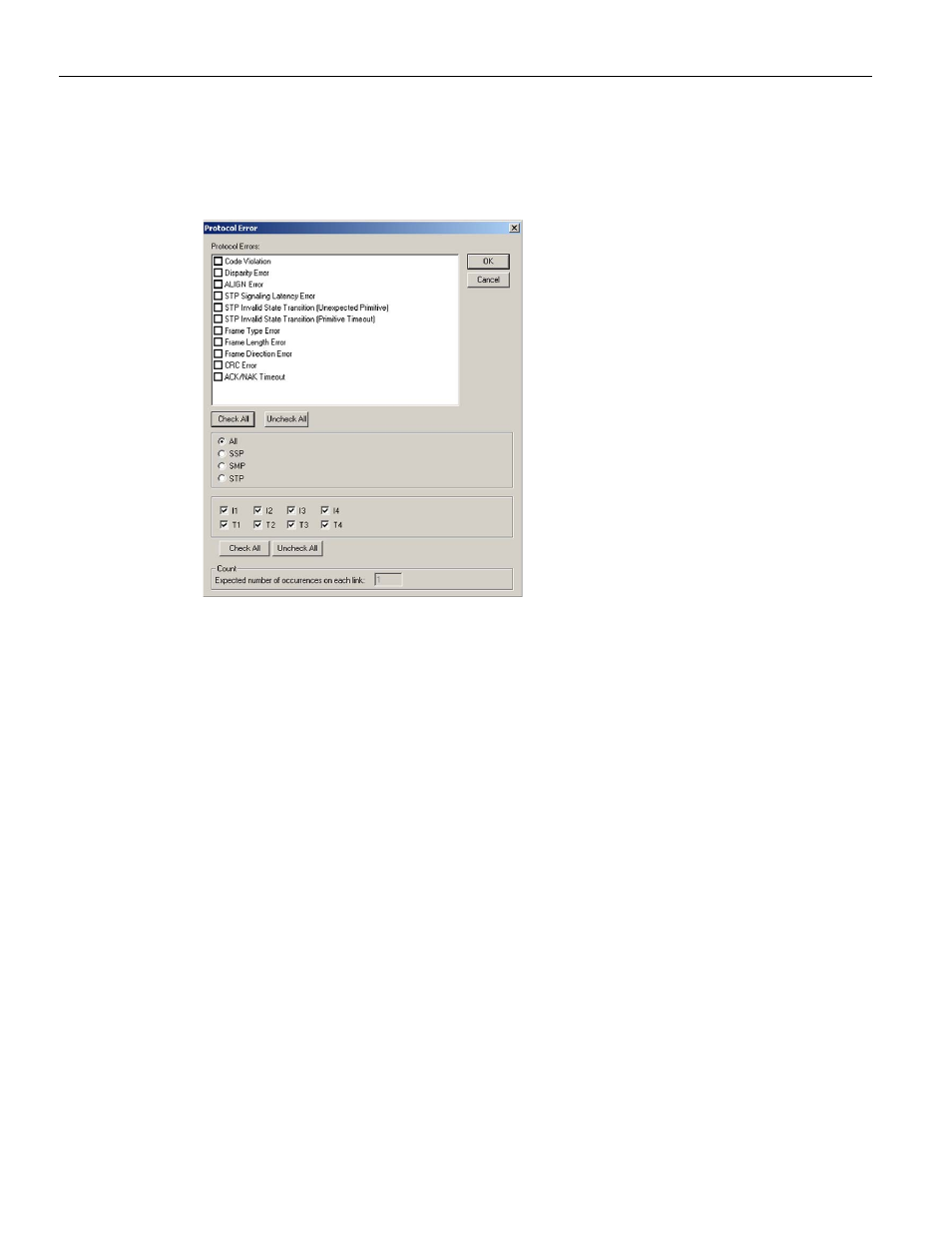

Figure 2.49: SAS: Protocol Errors Dialog
SAS vs. SATA: SATA Dialog shows Port and does not show SSP, SMP, or STP radio buttons.
Check the protocol error(s) on which to trigger and click OK.
