To run a Compliance Test:
1. Click Tools on the main toolbar and choose Compliance Test.

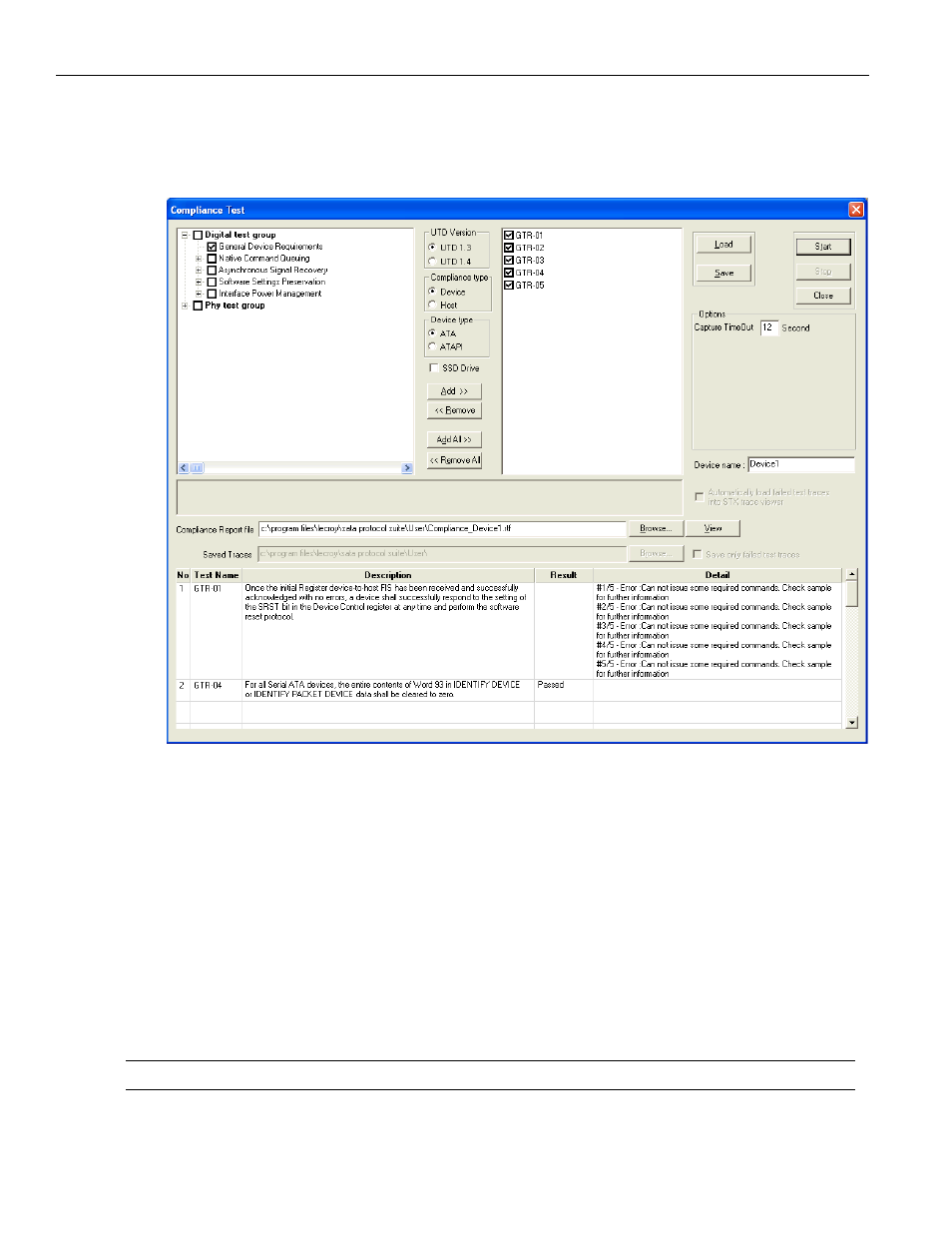

Figure 3.138: SATA: Compliance Test Selection
The Digital Test Group has:
 General Device Requirements: GTR‐01 through GTR‐05
 Native Command Queuing: NCQ‐01 through NCQ‐05
 Asynchronous Signal Recovery: ASR‐01 and ASR‐02
 Software Settings Preservation: SSP‐01 through SSP‐12
 Interface Power Management: IPM‐01 through IPM‐11
 Digital Optional Features: DOF‐01 and DOF‐02
The PHY Test Group has tests OOB‐03 through OOB‐07.
2. Choose tests in the left pane and click the Add>> button.
3. Enter a value for Capture Timeout.
Note: If test running time exceeds the Capture Timeout value, the test terminates.
4. Enter the Device Name.
