Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual 101
Easy Mode (Pre‐Defined Setups) LeCroy Corporation
 The target emulator check box is not displayed at all until two or more emulator
channels are selected.

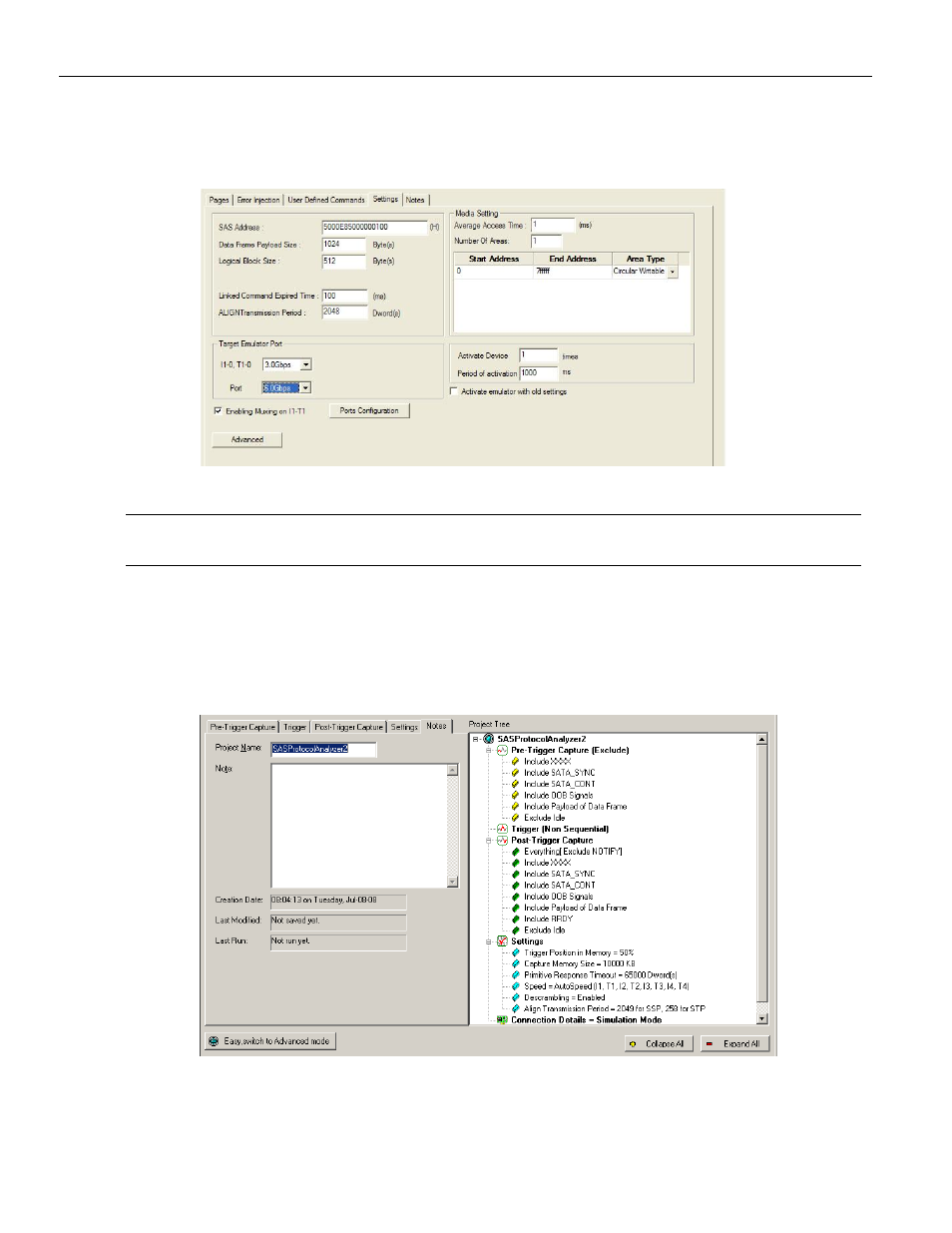

Figure 2.73: Target Emulator Check Box and Channel Speeds
Note:
Analyzer must detect MUX primitives from both host and device sides to capture traffic correctly
in Muxing mode.
Add a Project Note
To enter and save information about the current project, click the Notes tab and enter the
data about the project.
Figure 2.74: Project Notes Tab
