Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual 331
Scenario Actions LeCroy Corporation
But if the event counters are set to 1 and the Action counter is set to 5, then the Action
happens after five occurrences of EITHER Event_1 or Event_2.
Capturing a Data DWORD
InFusion provides the ability to capture individual data DWORDs and provides four
different registers to store captured DWORDs (DWORD #0, #1, #2 and #3).
To capture a data DWORD, select Capture Data DWORD from the Action Properties
screen, as shown below. Select the register to be used to store the DWORD from the
drop‐down menu under the Capture Register property.

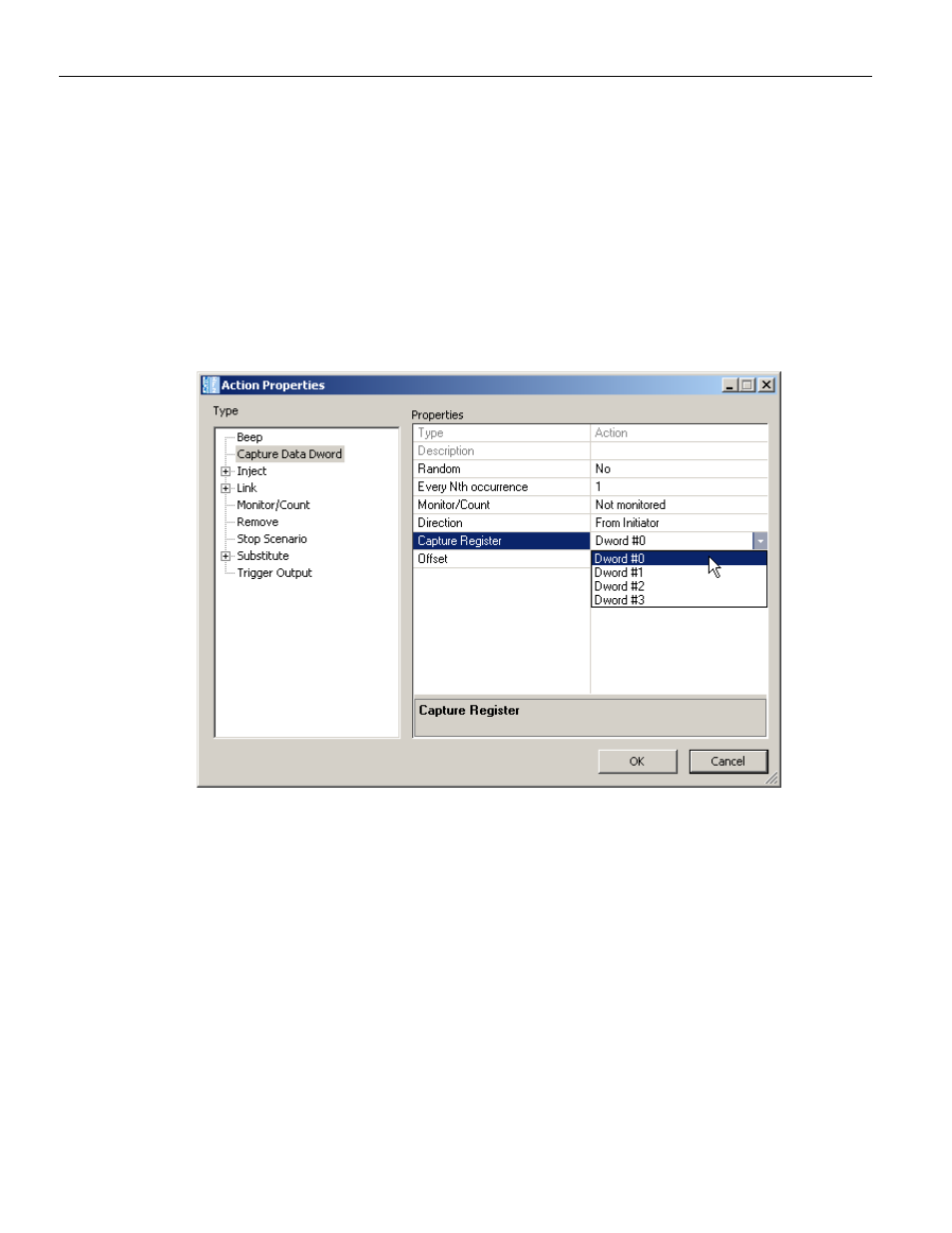

Figure 4.21: Capture Data DWORD Action
