LeCroy Corporation Switching Views
206 Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual

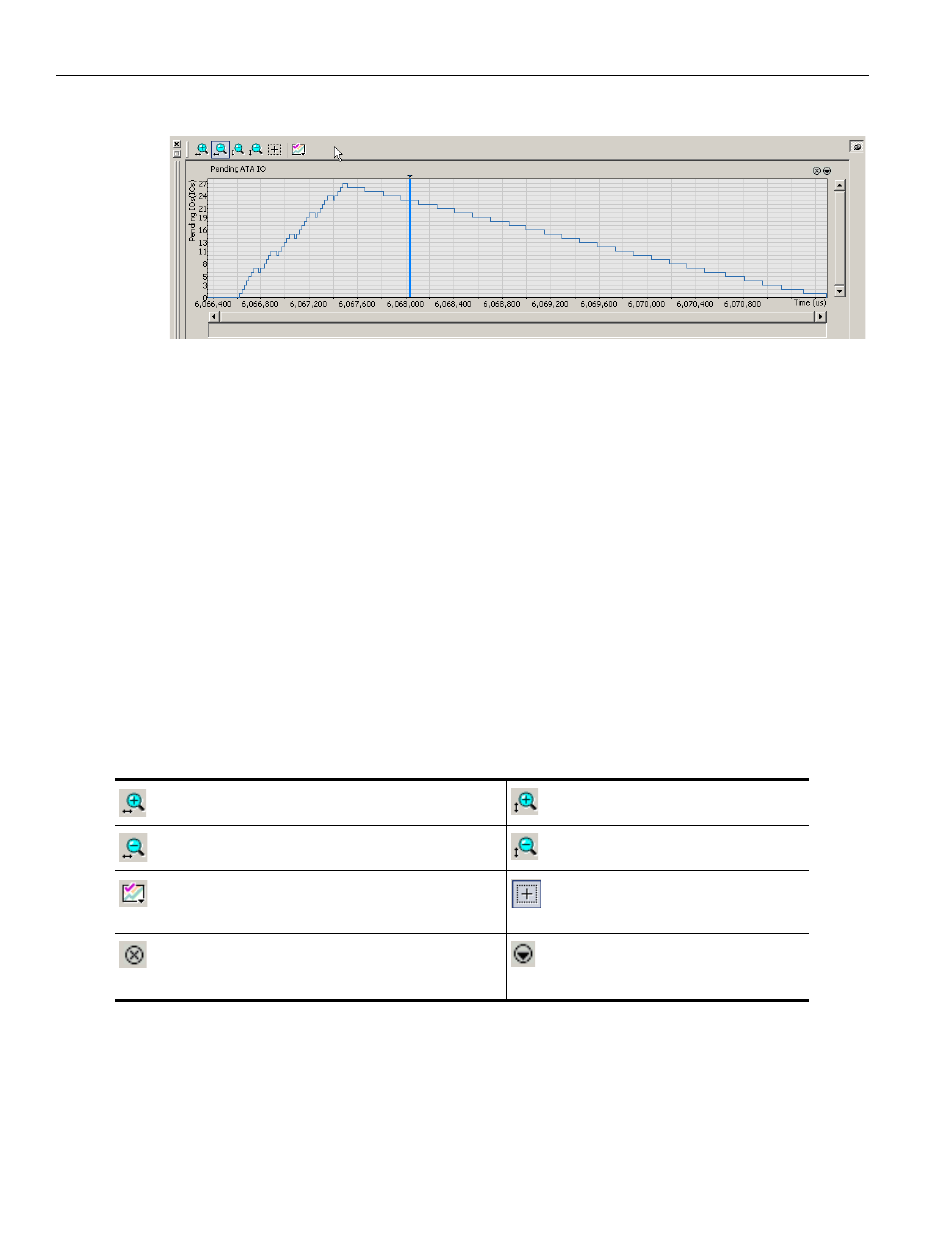

Figure 3.32: SATA: Bus Utilization View for Pending ATA IO
Available Bus Utilization Views are:
 Pending SCSI IO (for SAS)
 Pending ATA IO (for SATA)
Hovering the mouse over the graph heading displays the graph legend:
 Go to ATA/SCSI Cmd. #: Jump to command.
 Synchronize with Trace View: Synchronize all open views to that location in the
trace.
 Fit to Graph Area: Zoom to fit.
 Hide: Do not display the graph.
To synchronize all open views to that location in the trace, double‐click the graph.
Bus Utilization Buttons
The Bus Utilization window has a row of buttons for changing the format of the displayed
data. The buttons have the following functions:
Horizontal zoom in Vertical zoom in
Horizontal zoom out Vertical zoom out
Graph Areas
Presents options for displaying additional
graphs. Click and Drag zoom
Click diagonally to select and
zoom in on part of the graph.
Hide graph. Graph legend (see previous
page)
