Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual 75
Easy Mode (Pre‐Defined Setups) LeCroy Corporation
Bus Condition
Double‐click Bus Condition in the Patterns window of the Capture Project dialog to open
the Bus Conditions dialog.

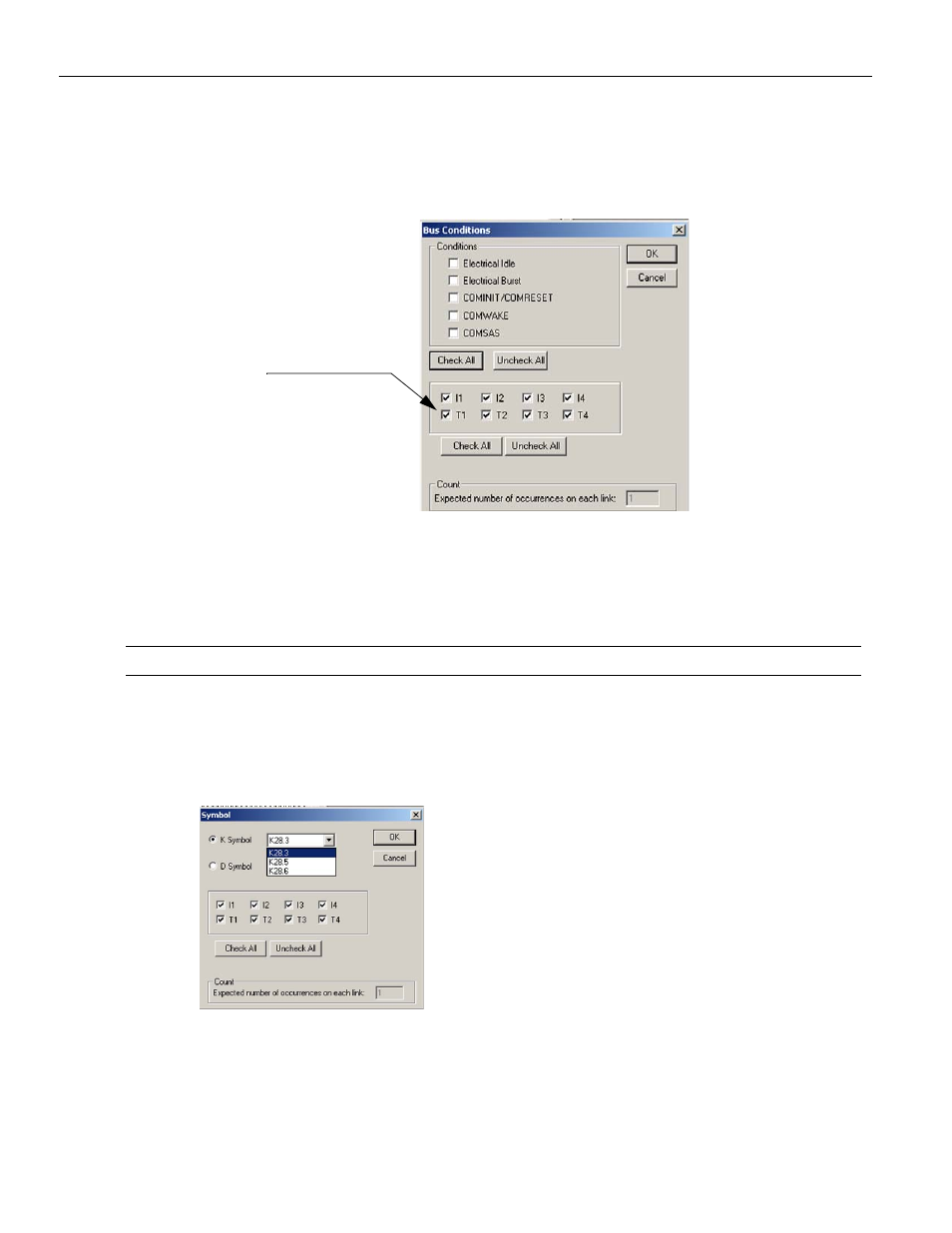

Figure 2.42: SAS: Bus Condition Dialog
SAS vs. SATA: SATA Dialog separates the COMINIT and COMRESET check boxes and
replaces COMWAKE with Host COMWAKE and COMSAS with Device COMWAKE.
Check the Conditions to trigger on and click OK.
Note: You can define triggering for specific ports by checking or unchecking Port IDs.
Symbol
Double‐click Symbol in the Patterns window of the Capture Project dialog to open the
Symbol dialog.
Figure 2.43: SAS: Symbol Dialog
Choose a symbol type by checking either the K Symbol or D Symbol option, then click the
down arrow in the Symbol dropdown list, choose a symbol to trigger on, and click OK.
Note that the D Symbol choice does not have a down arrow.
To choose a D symbol, click the D symbol option button and enter a Hex value.
Port ID
