1Ć73 Learning About the System
Cal
Slope
Ambient Air
1 1a 2
4 3
R S W
• • • • • • • • • • • • • • • • • • • • • • • •
• • • • • • • • • • • ••••••••••••••••••••
••
••••••••••••••••••
• • •
• • • • •
7.3 6.8 Wash Clean
5
CO
H SC

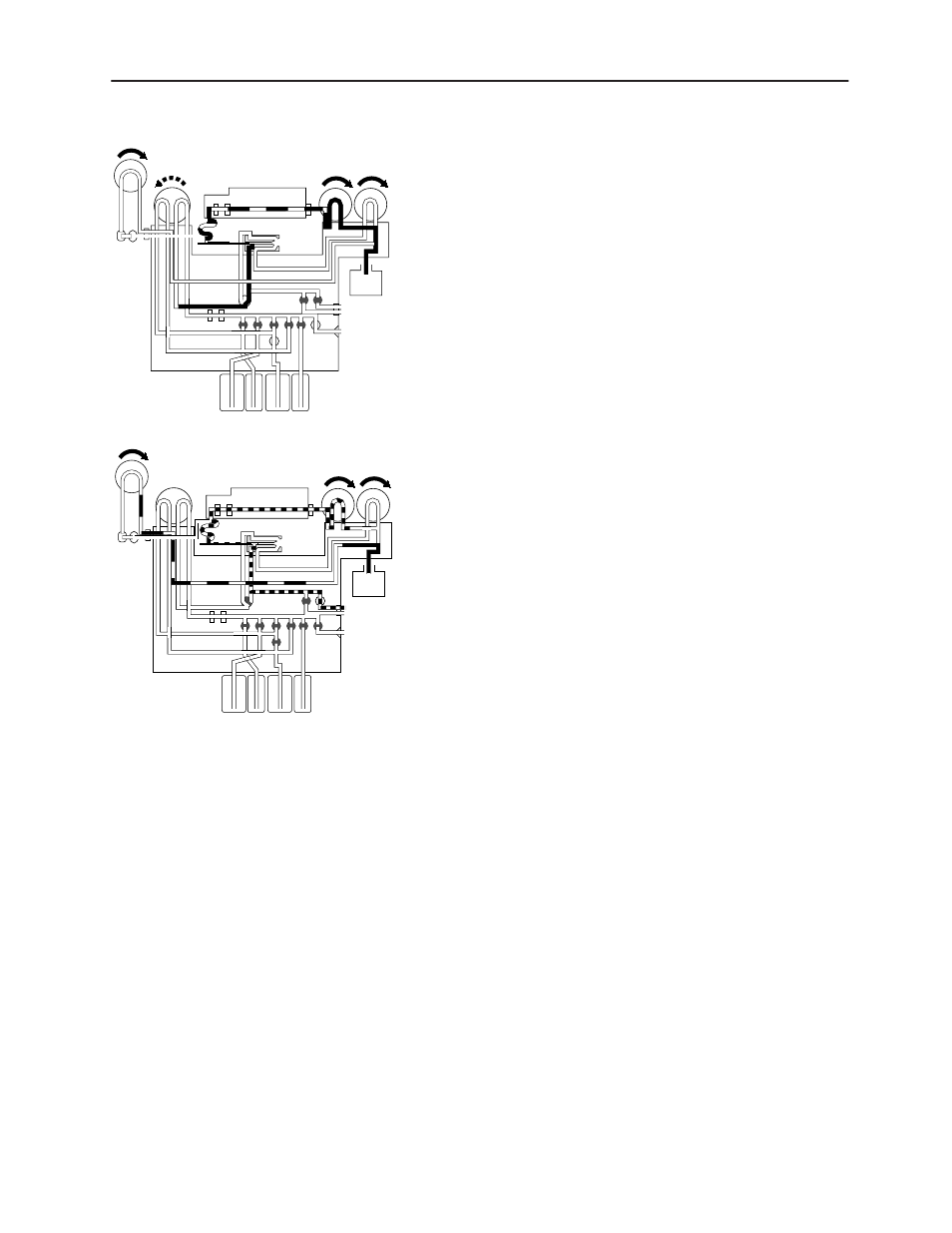

15. After the solid wash segment reaches the inner sample
port, the reagent pump stops, the waste pump remains on,
and the sample pump moves the wash segment from the
sample port into the measurement module. An air segment
follows. The wash valve opens and the reagent pump
introduces another solid wash segment into the sample
port. This sequence repeats 11 times to create wash
segments that thoroughly clean the measurement module.
Cal
Slope
Ambient Air
1 1a 2
4 3
R S W
7.3 6.8 Wash Clean
5
CO
H SC
16. After the wash segments pass through the measurement
module, the Cal gas valve opens and the sample pump
starts to move Cal gas into the measurement module. The
waste pump is on to prevent a bubble from forming at the
sample port. The sample door opens when the sequence
completes.
