Troubleshooting the System

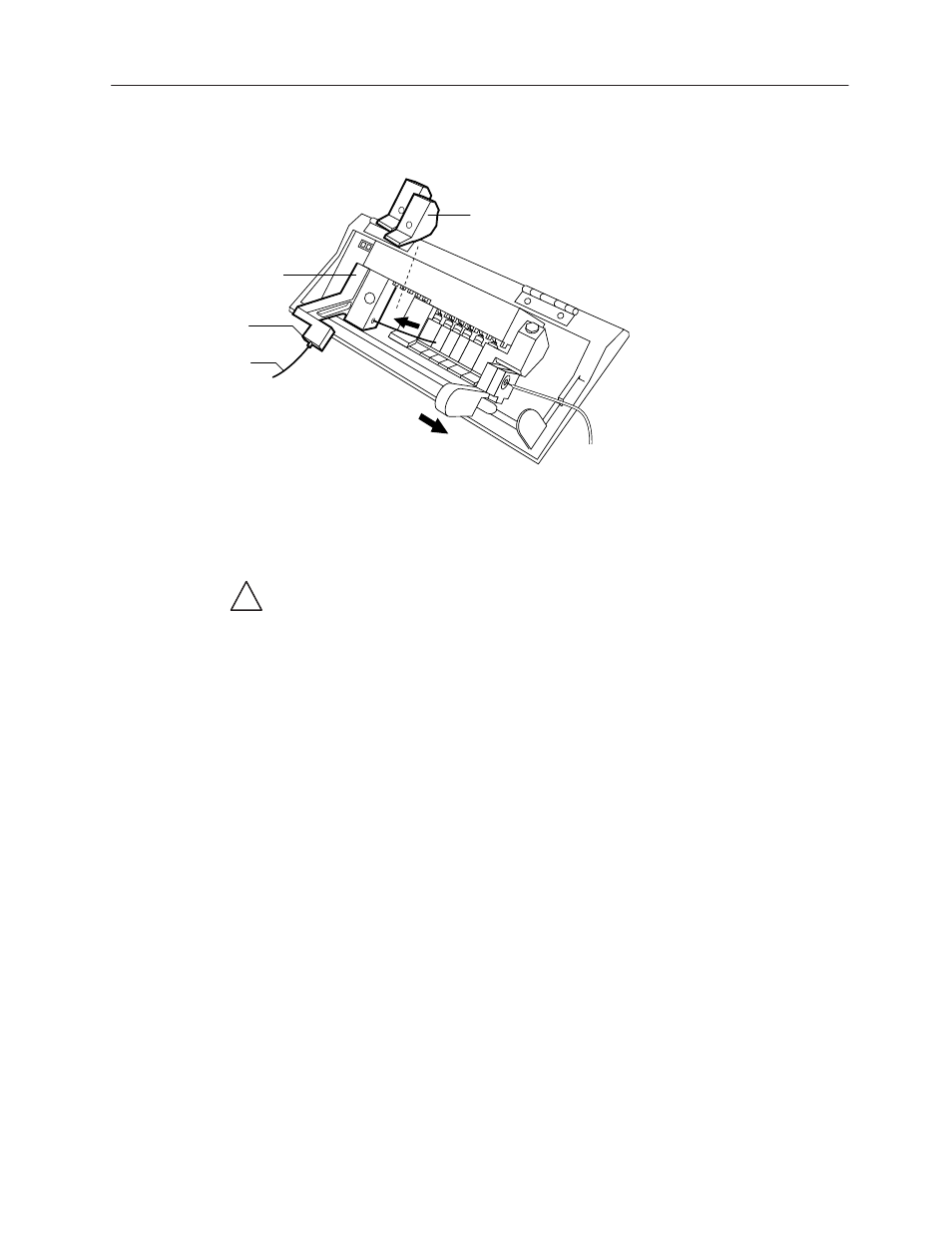

Figure 4Ć18.ā Removing Obstructions from the Preheater on an 850
Remove the gas sensors
from the measurement
module.
Clot-removal
Line
Push the spring-loaded
latch to the right.
Connector for Sample
Tubing
Preheater
d. Connect the sample tubing to the preheater.
e. Reinstall the gas sensors, ensuring that the O-rings are in place.
7.
Remove obstructions from the path through the latch, as shown in Figure 4-19:
CAUTION:ĄĂ
Do not remove or return the sensors to the measurement module
without first discharging static buildup. Touch the inner surface of the module
frame to discharge static buildup.
a. Grasp the tab on the reference sensor and pull it up and out of the
measurement module.
b. Remove the tubing from the spring-loaded latch.
c. Push a clot-removal line through the latch.
!
