3Ć72 Rapidlab 800 Operator's Manual
c. Slowly fill the electrode compartment by gently squeezing the container
until the KCl fill solution enters the KCl reservoir.

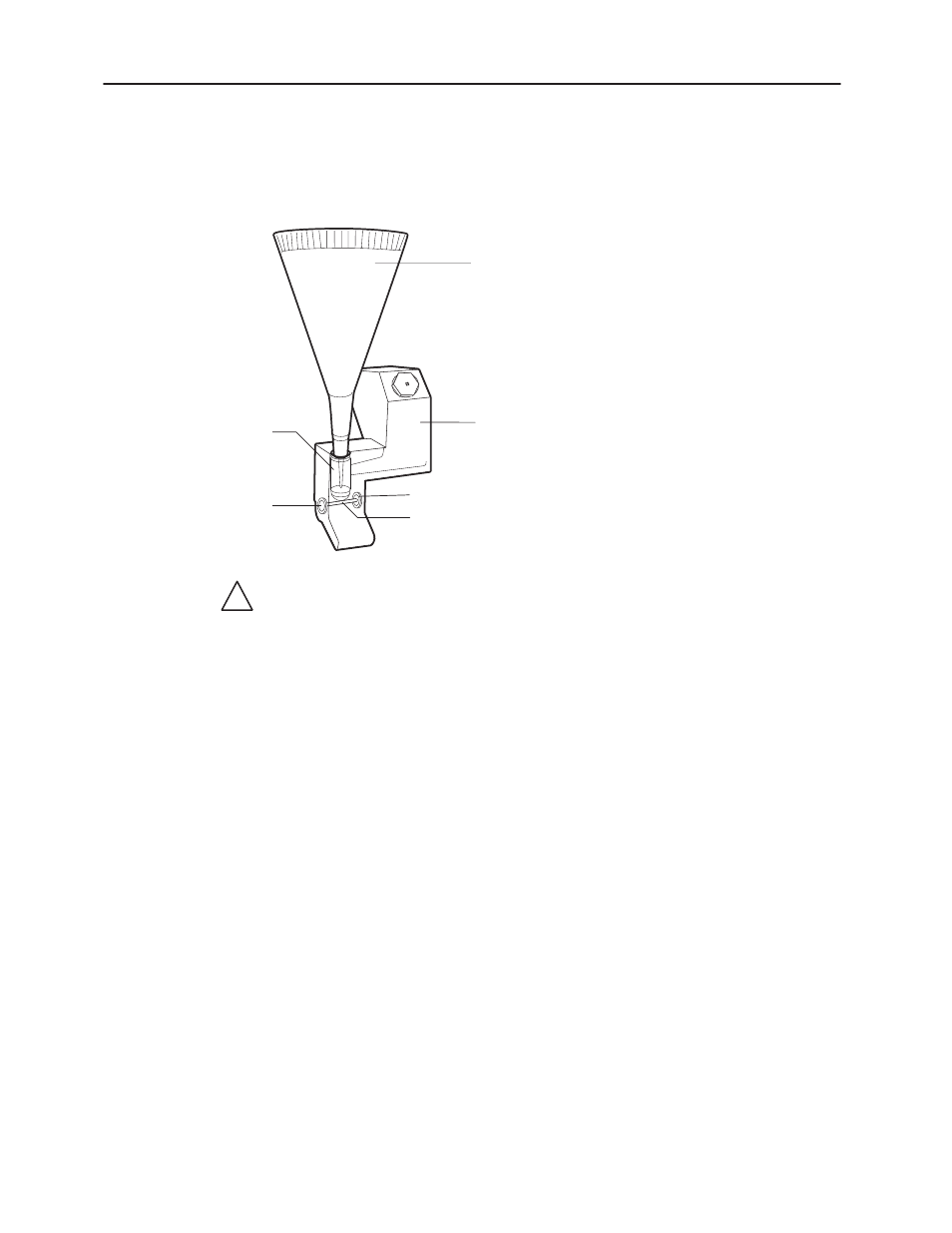

Figure 3Ć44.āăFilling the Electrode Compartment
OĆring
Sample Path
4M KCl Fill Solution
OĆring
Reference Sensor Cassette
(KCI Reservoir)
Electrode Compartment
CAUTION:ĄĂ Do not touch the internal electrode wire. The wire is fragile and is
easily damaged.
4. Install the internal electrode in the sensor:
a. Use the hex tool to remove the internal electrode from its container.
b. Insert the internal electrode into the electrode compartment.
c. Screw it into place with the hex tool, ensuring that you do not cross-thread
the electrode.
d. Tap the front face of the sensor with your knuckle to release any bubbles.
!
