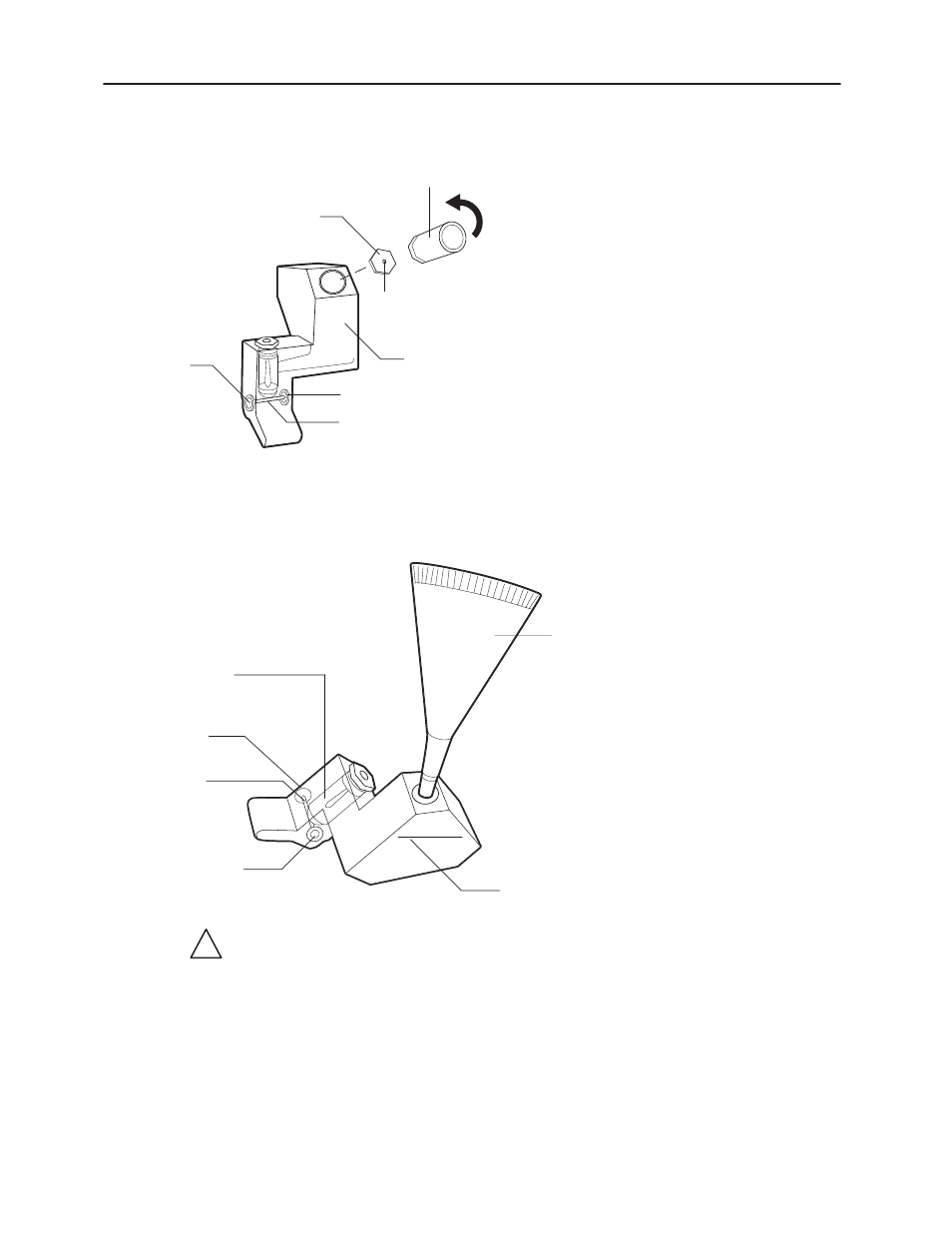

Figure 3Ć41ā.ăRemoving the Reservoir Cap with the Hex Tool
Hex Tool
Reservoir Cap
OĆring
OĆring
Sample Path
KCI Reservoir
Vent Hole
4. Add KCl fill solution to the KCl reservoir to the fill line, as shown in
Figure 3-42.
Figure 3Ć42ā.ăFilling the Reference Sensor
4M KCl Fill Solution
Fill Line
OĆring
OĆring
Sample Path
Electrode
Compartment
CAUTION: Do not overtighten the reservoir cap. Overtightening can deform the
gasket and cause leaks.
5. Reinstall the reservoir cap and hand-tighten.
6. Continue with Reinstalling a Sensor , page 3-89.
!
