3Ć41 Maintaining the System

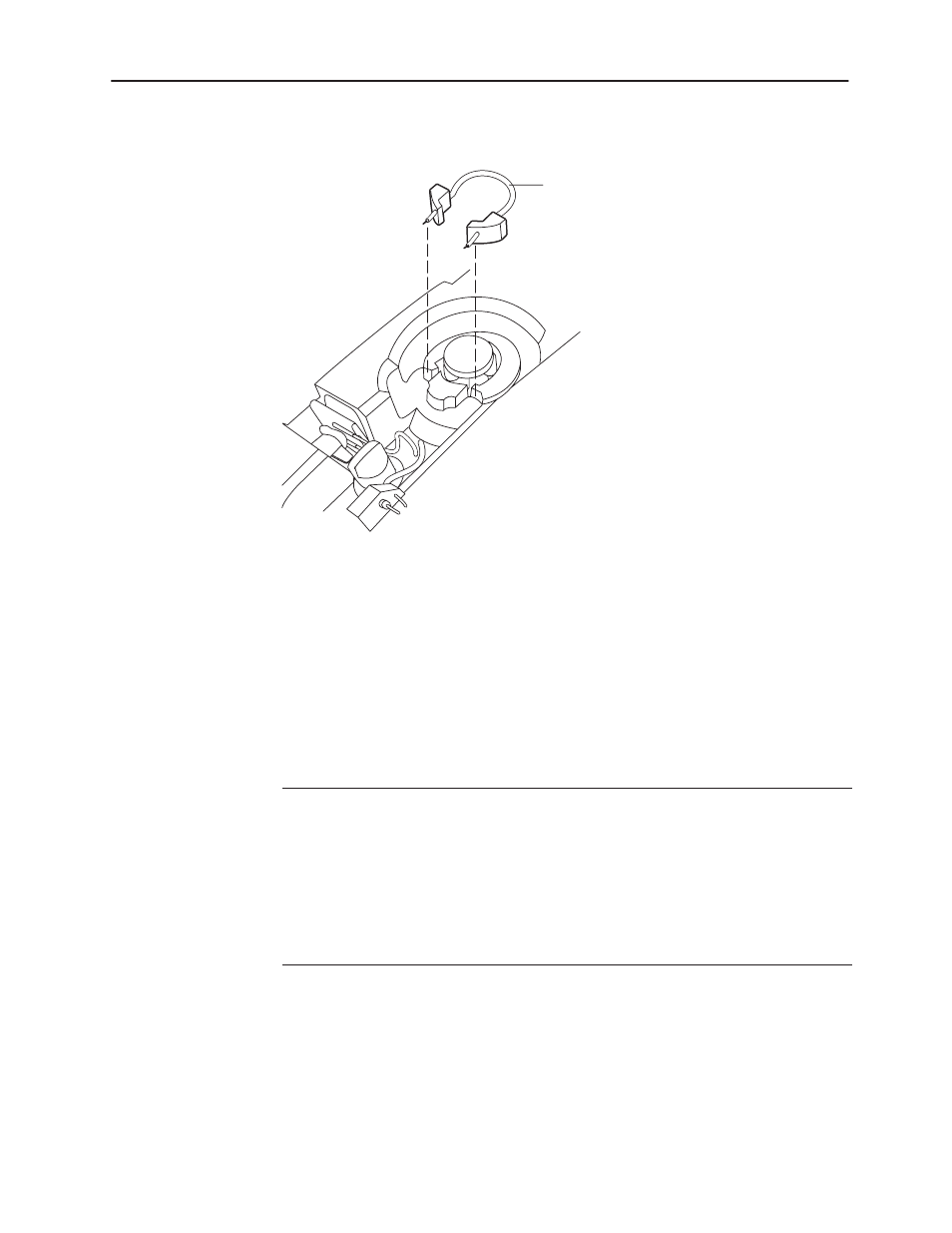

Figure 3Ć24.āăReplacing the COĆox Pump Tubing
COĆox Pump Tubing
f. Place the left tubing cuff under the left side of the platen.
NOTE:ĄĂ Do not stretch the tubing.
g. Place the tubing around the outside of the rollers.
h. Hold the right tubing cuff below the right side of the platen and turn the
roller cage clockwise to gently work the new tubing between the platen and
roller cage.
i. Place the right tubing cuff under the right side of the platen.
4. Connect the pump tubing.
If you replaced . . . Then . . .
sample pump tubing connect tubing to both connectors at position 4 on the
reagent manifold.
waste pump tubing connect tubing to both connectors at position 5 on the
reagent manifold.
CO-ox pump tubing connect sample and waste tubing connectors on CO-ox
pump tubing.
