4Ć60 800 Series Operator's Manual
c. Attach another piece of test tubing to a two-way connector, attach the
connector to the outlet tubing for the appropriate pump, and place the test
tubing in the graduated cylinder.
If you want to . . . Then connect the test tubing . . .
test the reagent pump a. to the pump inlet tubing connected to right position 1
b. and to the outlet tubing connected to left position 1.
test the sample pump a. to the pump inlet tubing connected to left position 4
b. and to the outlet tubing connected to right position 4.
test the waste pump a. to the pump inlet tubing connected to left position 5
b. and to the outlet tubing connected to right position 5.

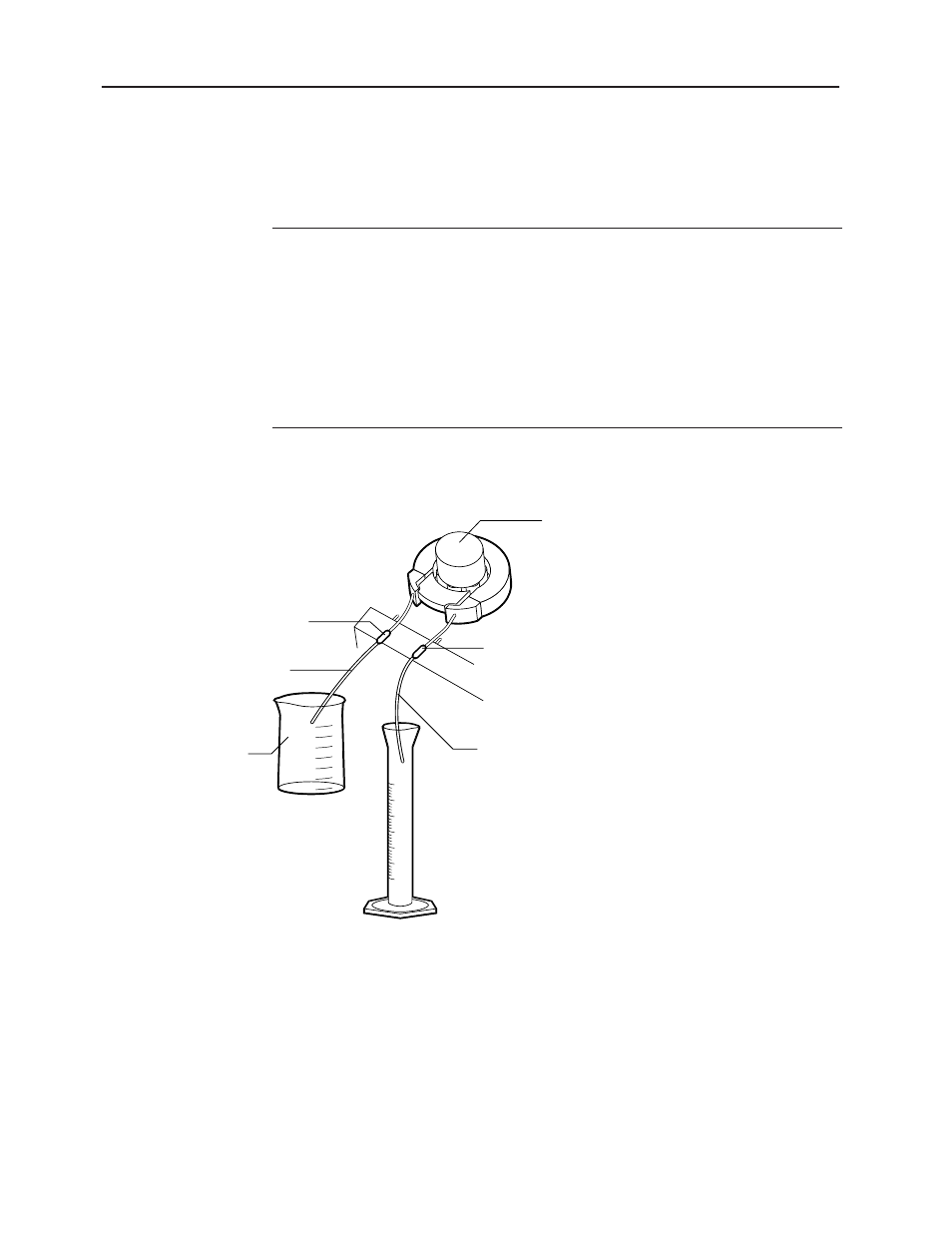

Figure 4Ć5.ā Measuring the Flow Rate for the Sample or Waste Pump
Sample or
Waste Pump
Two-Way
Connector
Tubing
Tubing
Two-Way
Connector
Reagent
Water
5. Install the test tubing on the CO-ox pump:
NOTE:ĄĂ The CO-ox pump turns clockwise.
a. Disconnect the sample and waste tubing from the pump tubing.
b. Attach one piece of test tubing to sample tubing connector on the CO-ox
pump tubing, and place the test tubing in a beaker of reagent water.
