1Ć9 Learning About the System
Description of the System
The following series of illustrations show the exterior controls and components of
the 800 system. The 860, 864, and 865 systems have five reagent bottles, and the
840, 844, 845, 850, 854, and 855 systems have four reagent bottles.

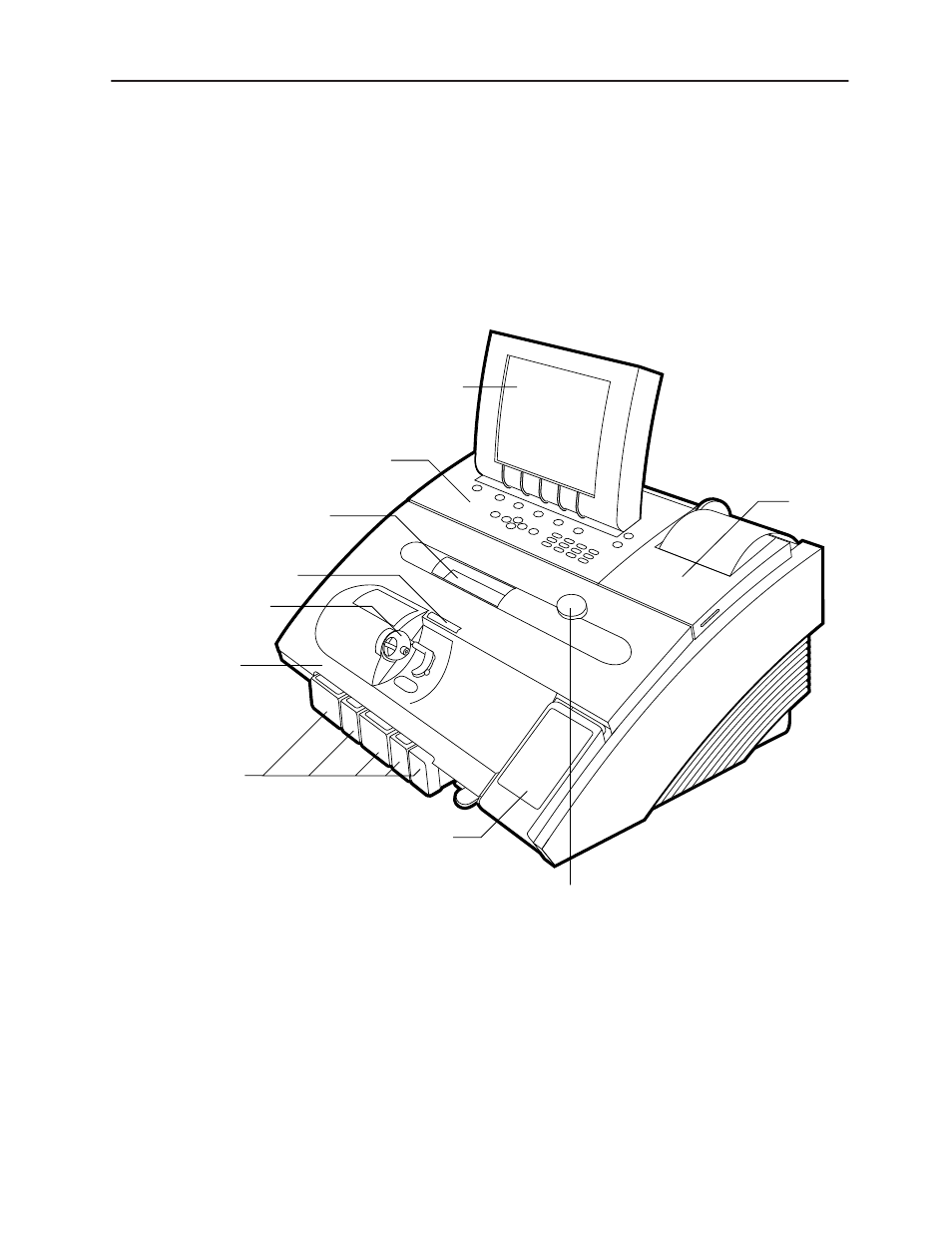

Figure 1Ć1.ā Front View (with cover) of an 860
Screen
Keypad
Measurement Module
Window
Sample Entry
Reagent Bottles
Waste Bottle
Printer
Sample Pump
Front Cover
Analyze Key
