HĆ6 800 Series Operator's Manual

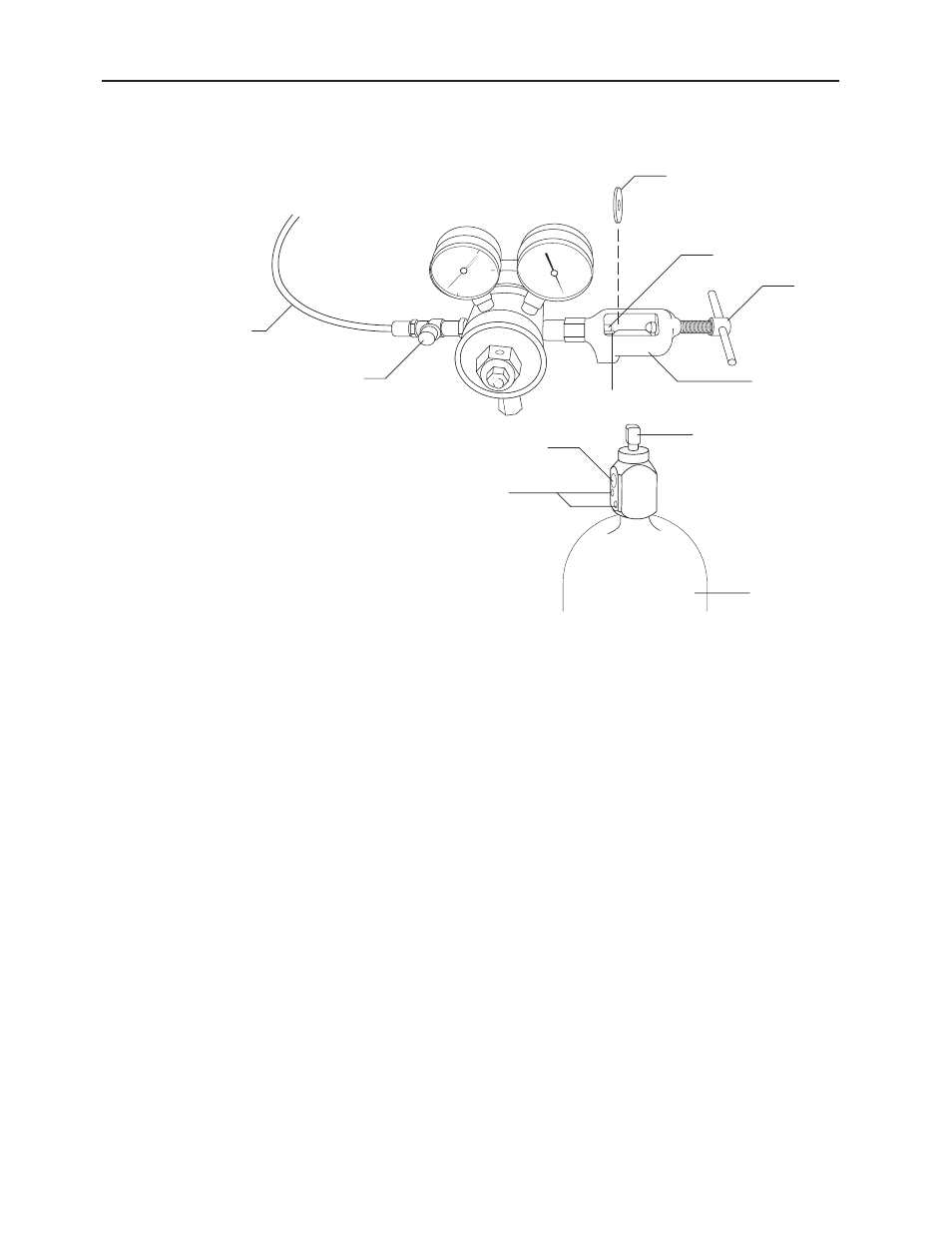

Figure HĆ4.āăInstalling the Gas Tank Regulator
Needle Valve
Adjustment
Knob
Gas Tank Seal
Regulator Nipple
Yoke
Screw
Gas Line
Yoke
Dowel Pins
Valve Stem
Valve Outlet
Dowel Pin Holes
Gas Tank
f. Attach the gas regulators to the gas tanks with the regulator nipple
engaging the opening in the tank valve.
g. Attach and tighten the yoke screws firmly.
h. Attach and tighten the tubing adapter fittings into each needle valve. Ensure
that the needle valve is fully open.
