Page 91: Continued)
1Ć69
Learning About the System
Cal
Slope
Ambient Air
1 1a
2
4
3
R
S
W
7.3
6.8
Wash Clean
5
CO
H
SC
3.

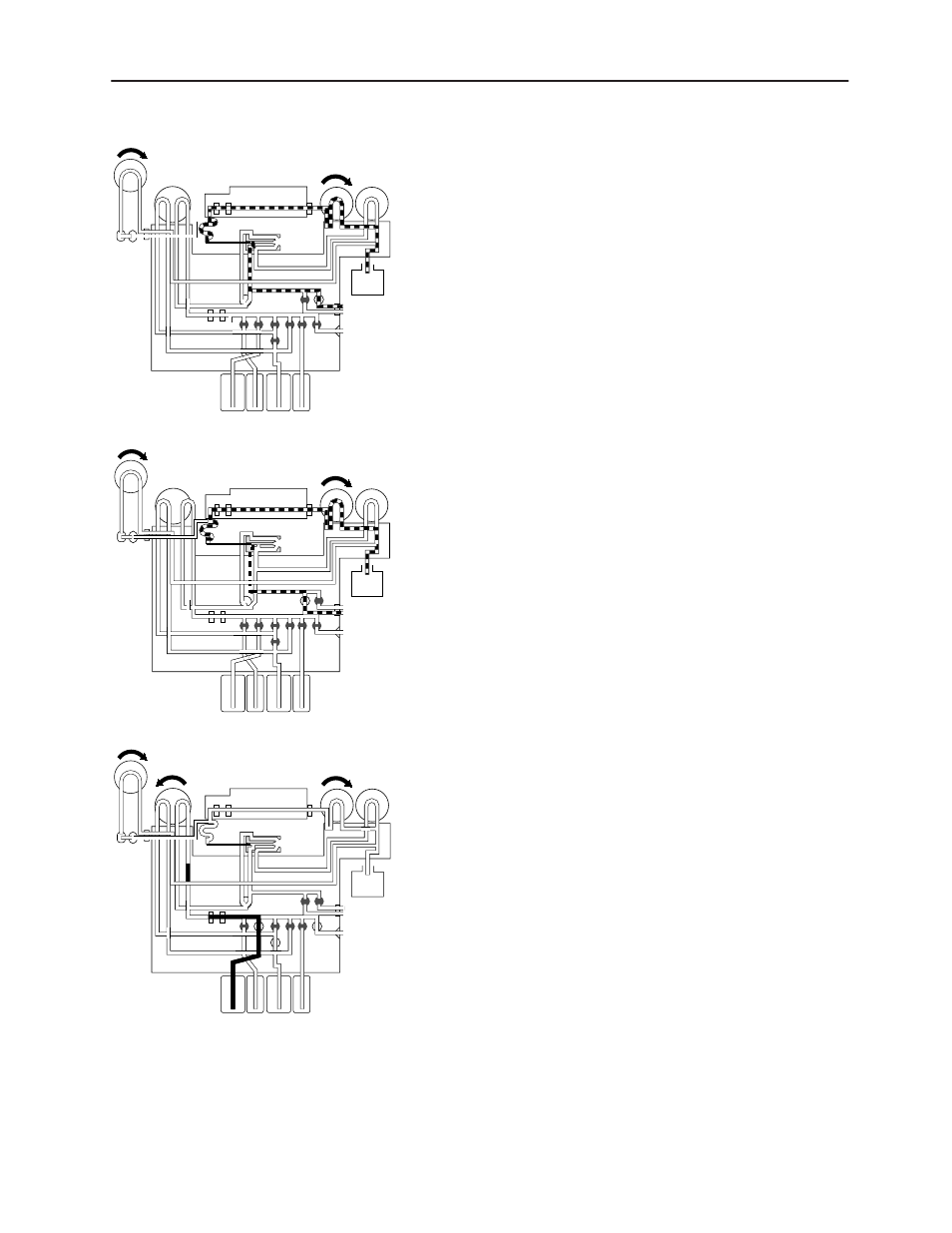

After the wash segment moves through the measurement
module, the Cal gas and diverter valves open and Cal gas
flows into the inner sample port. The sample pump
aspirates the Cal gas at a controlled rate through the
measurement module where pO
2
and pCO
2
are measured.
Cal
Slope
Ambient Air
1 1a
2
4
3
R
S
W
7.3
6.8
Wash Clean
5
CO
H
SC
4.
The Slope gas valve opens and Slope gas flows into the
inner sample port. The sample pump aspirates the Slope
gas at a controlled rate through the measurement module
where pO
2
and pCO
2
are measured. The CO-ox pumps
starts to prevent contamination of the sample connector by
ambient air.
Cal
Slope
Ambient Air
1 1a
2
4
3
R
S
W
• • • • • • • • • • •
••
• • • • •
7.3
6.8
Wash Clean
5
CO
H
SC
5.
After the gases are measured, the 7.3 valve, wash bypass
valve, and diverter valve open. The reagent pump moves a
7.3 reagent pre-segment and main segment from the
reagent manifold toward the inner sample port. The
sample pump is on.
(Continued)
