3Ć106 Rapidlab 800 Operator's Manual
3. Disconnect the power cord from the side panel of the system.
4. Remove the air filter cover.
5. With a small, flat-blade screwdriver, gently pry open the fuse compartment
door at the top, as shown in Figure 3-72.
6. Remove the fuse holders from the compartment.

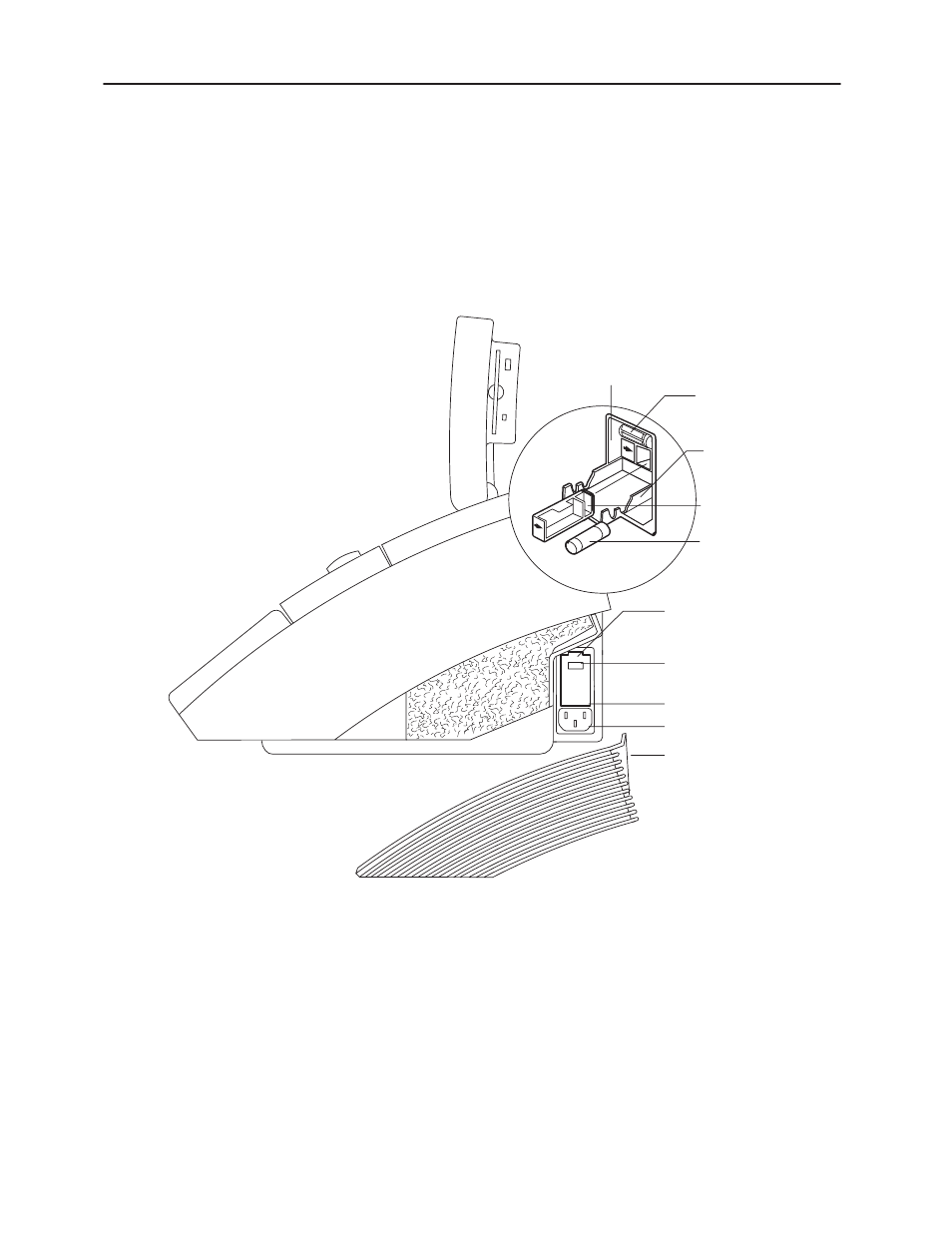

Figure 3Ć72ā.ăReplacing the System Fuses
Power Input
Fuse Compartment Door
Air Filter Cover
Fuse
Fuse Compartment
Fuse Holder
Voltage Bobbin
Fuse compartment
door in open position.
Fuse Compartment Door Notch
Voltage Selection Bobbin
Window
7. Remove the old fuses and install new fuses with the correct rating.
Refer to Table 3-2 to identify the correct fuse.
8. Slide the fuse holders into the fuse compartment with the arrows pointing to
your right.
9. Close the fuse compartment.
10. Ensure that the voltage selection bobbin is in place and the correct setting is
visible through the window.
11. Reinstall the air filter cover.
