Learning About the System
Cal
Slope
Ambient Air
1 1a
2
4
3
R
S
W
7.3
6.8
Wash Clean
5
CO
H
SC
9.

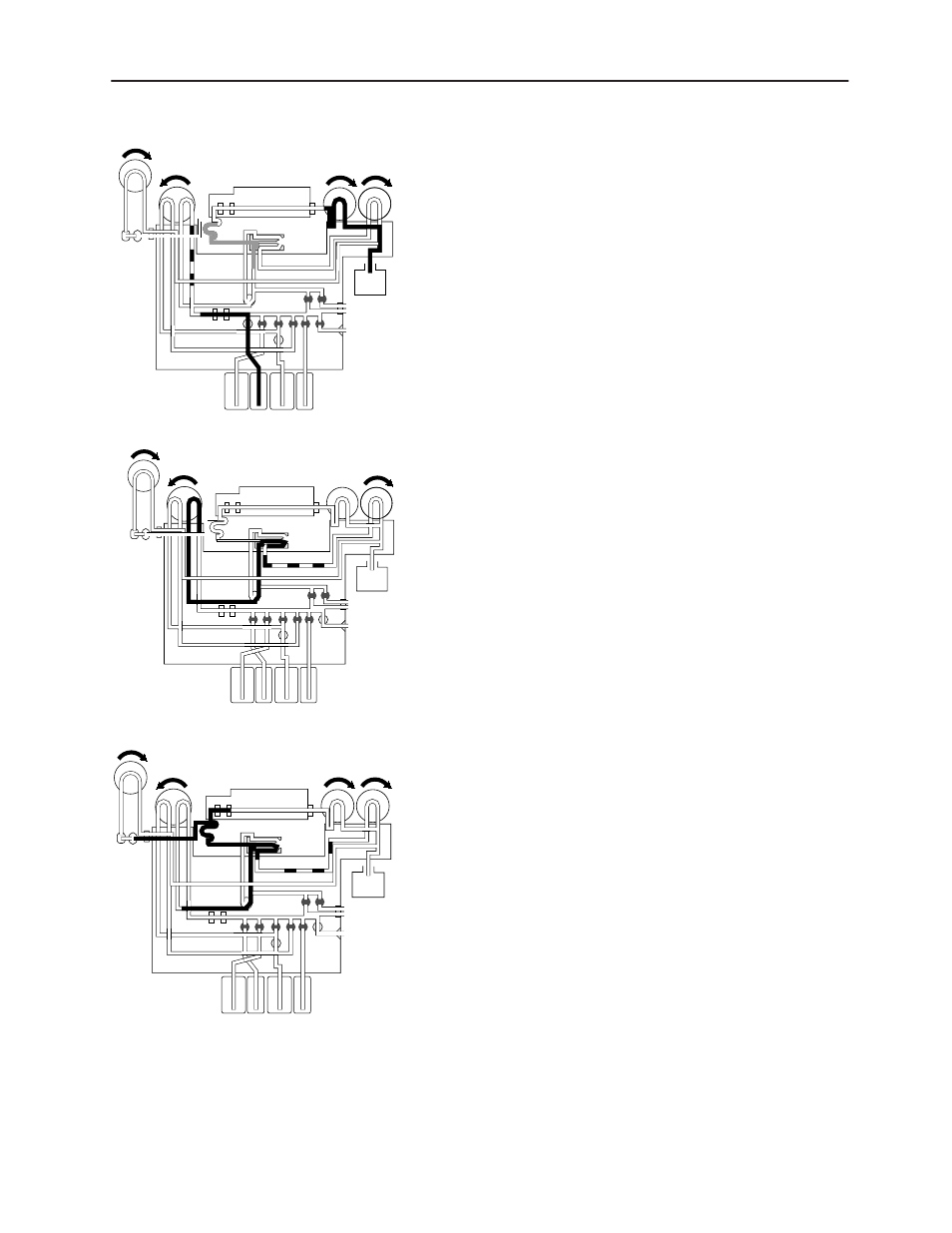

A small amount of foam wash is moved to the
measurement module to remove the 7.3 reagent. The
reagent pump then moves three 6.8 reagent pre-segments
and a main segment to the inner sample port. The
pre-segments are used to remove any residual 7.3 reagent
from the pathways.
Cal
Slope
Ambient Air
1 1a
2
4
3
R
S
W
• • • • • • • • • • • • • • • • • • • • • • • •
•••••••••••••••••
••
• • • • •
7.3
6.8
Wash Clean
5
CO
H
SC
10. The pre-segments move through the sample port into the
waste.
Cal
Slope
Ambient Air
1 1a
2
4
3
R
S
W
• • • • • • • • • • • • • • • • • • • • • • • •
• • • • • • • • • • •
••••••••••••••••••••
•••
••••••••••••••••••
• • •
• • • • •
7.3
6.8
Wash Clean
5
CO
H
SC
11. When the main segment reaches the sample port, the
sample pump starts and moves the segment to the
measurement module until it is detected by fluid detector 1
and 1A. The main segment moves toward the sample port.
The waste pump starts.
(Continued)
