3Ć40
Rapidlab 800 Operator's Manual

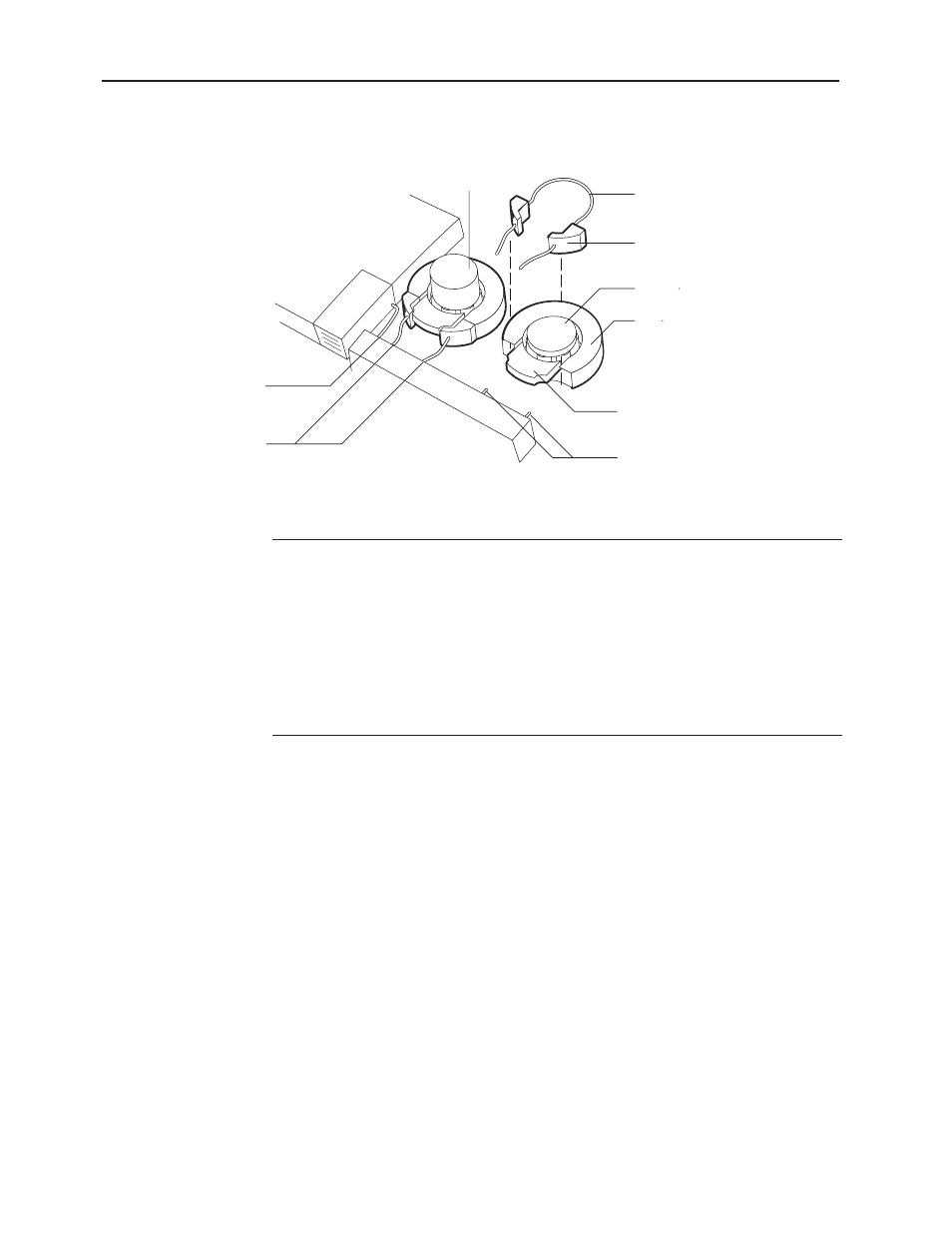

Figure 3Ć23.āăReplacing the Sample and Waste Pump Tubing
Waste Pump
Roller Cage
Platen
Tubing
Tubing Cuff
Sample Pump
Position 5 Connectors
Position 3
Connectors
Position 4
Connectors
a. Perform the appropriate step.
If you are replacing . . .
Then disconnect the . . .
sample pump tubing
tubing from both connectors at position 4 on the
reagent manifold.
waste pump tubing
tubing from both connectors at position 5 on the
reagent manifold.
CO-ox pump tubing
sample and waste tubing with two-way
connectors from the CO-ox pump as shown in
Figure 3-24.
3.
Replace the reagent pump tubing as shown in Figure 3-23:
a. Select the replacement tubing that has the tubing collar.
b. Grasp the left tubing cuff and pull it away from the platen.
c. While holding the tubing, turn the roller cage clockwise and gently pull the
tubing away from the platen and the roller cage.
d. Discard the tubing according to your laboratory protocol.
e. Hold the new tubing assembly with the tubing in front.
