3Ć69 Maintaining the System
Filling the Reference Sensor
Materials required:
S reference electrode refill
S hex tool
S lint-free tissue
BIOHAZARD: Refer to Appendix A, Protecting Yourself from Biohazards, for
recommended precautions when working with biohazardous materials.
1. Stop the system from the Menu screen:
a. Select 2 Maintenance and press Enter .
b. Select 7 Stop System and press Enter .
CAUTION: Do not remove or return the sensors to the measurement module
without first discharging static buildup. Touch the inner surface of the module
frame to discharge static buildup.
2. Remove the reference sensor as shown in Figure 3-40:
a. Push up the latches on the measurement module door and lift the door.
b. Push the spring-loaded latch to the right.
c. Grasp the tab on the reference sensor and pull the sensor up and out of the
measurement module.

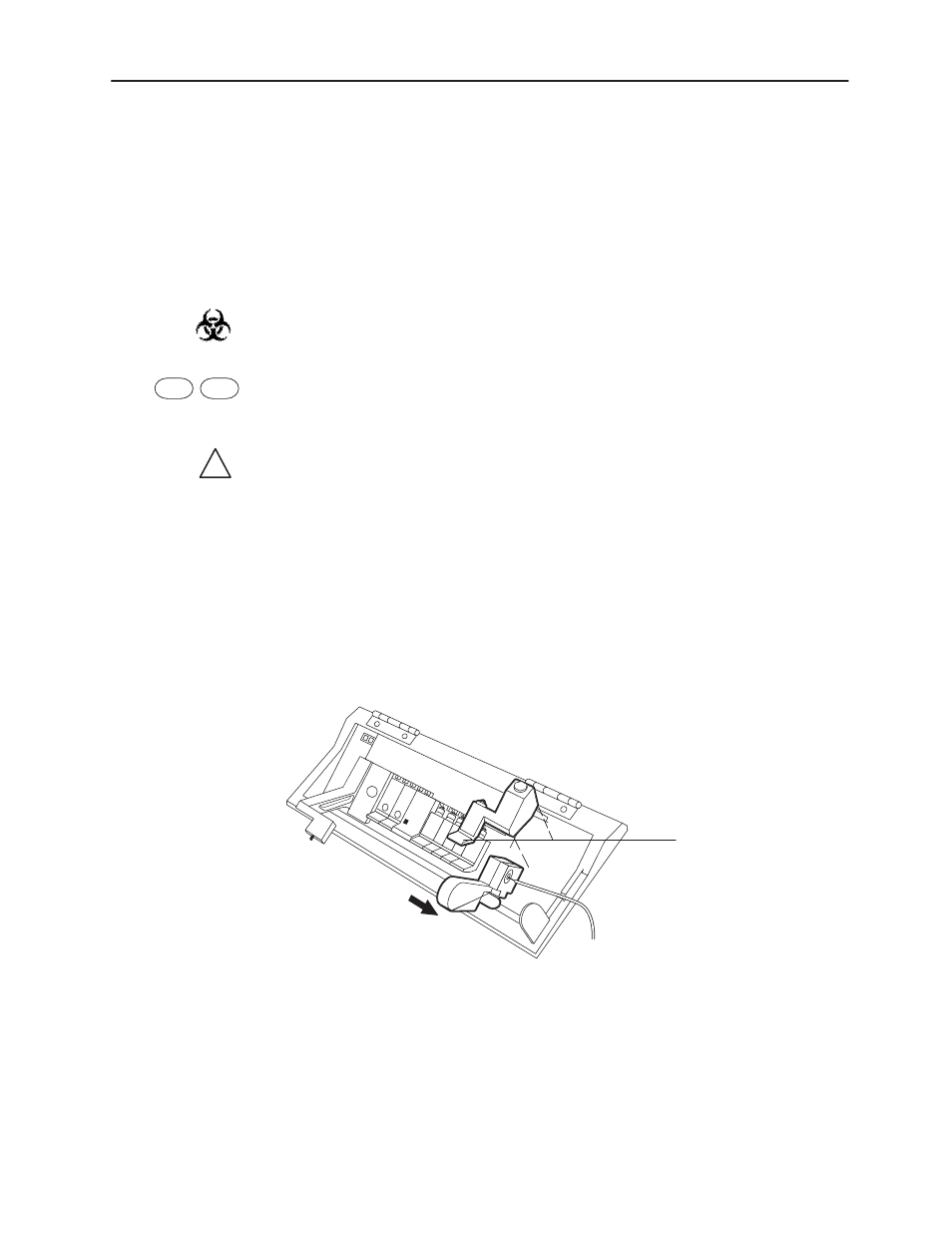

Figure 3Ć40.āăRemoving the Reference Sensor from an 850
Grasp the tab on the
reference sensor and
pull it up and out of the
measurement module.
Push the springĆloaded
latch to the right.
3. Remove the reservoir cap from the reference sensor with the hex tool and set
the cap aside as shown in Figure 3-41.
