Installation and Maintenance Volume
Octel Overture 200/300 Serenade 3.0
PB60014–01

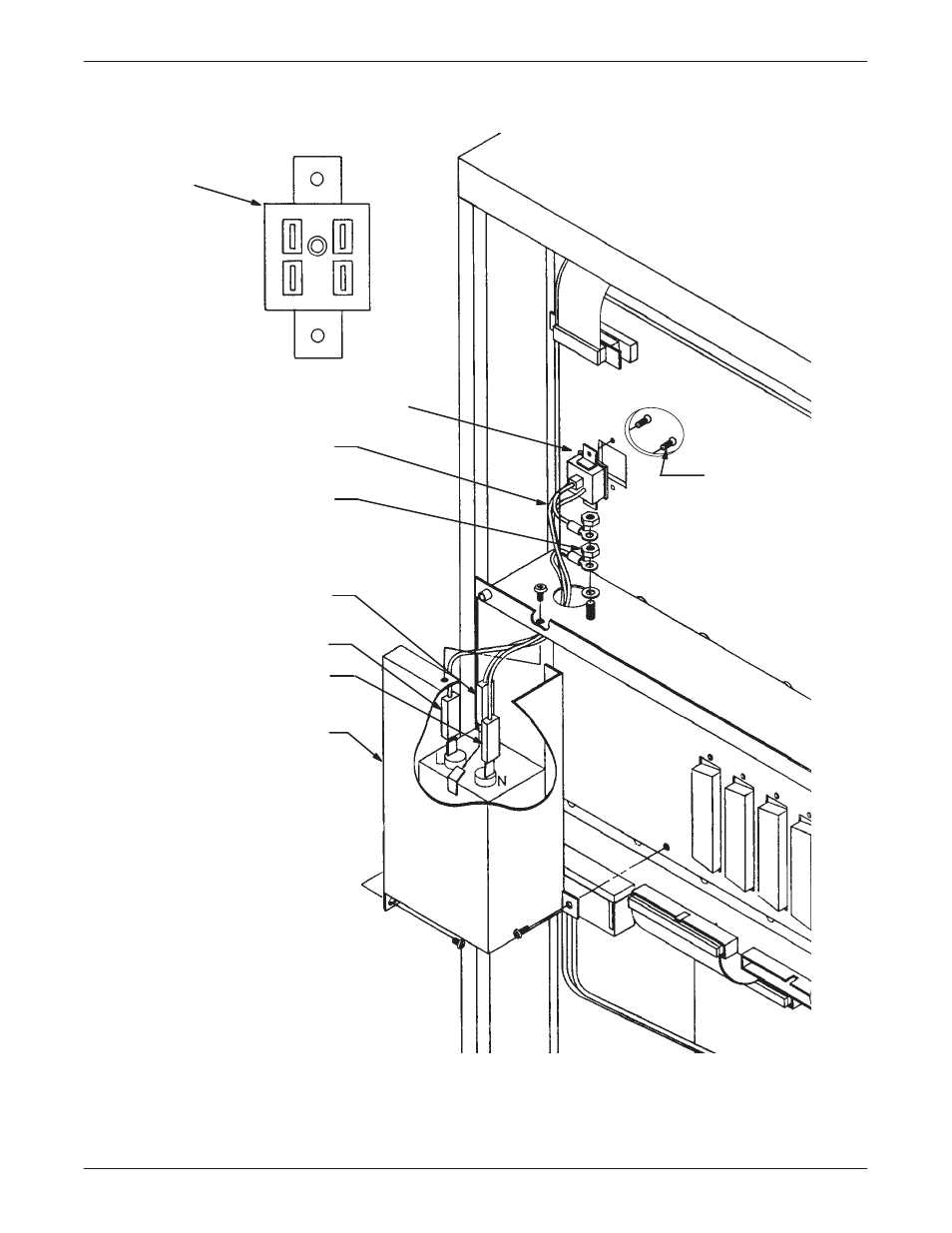

Figure 9-25 Power-Filter Assembly for 240-Vac International Octel Overture 300
Front Viewof
Connector
Connector
Mounting
Screws
Power Filter
Assembly
HarnessĆGrounding
Hardware
BackplaneĆtoĆ
Filter Harness
Green/Yellow
Brown
Blue
Connector
