4-6
Installation and Maintenance
V
olume
Octel Overture 200/300 Serenade 3.0
PB60014–01

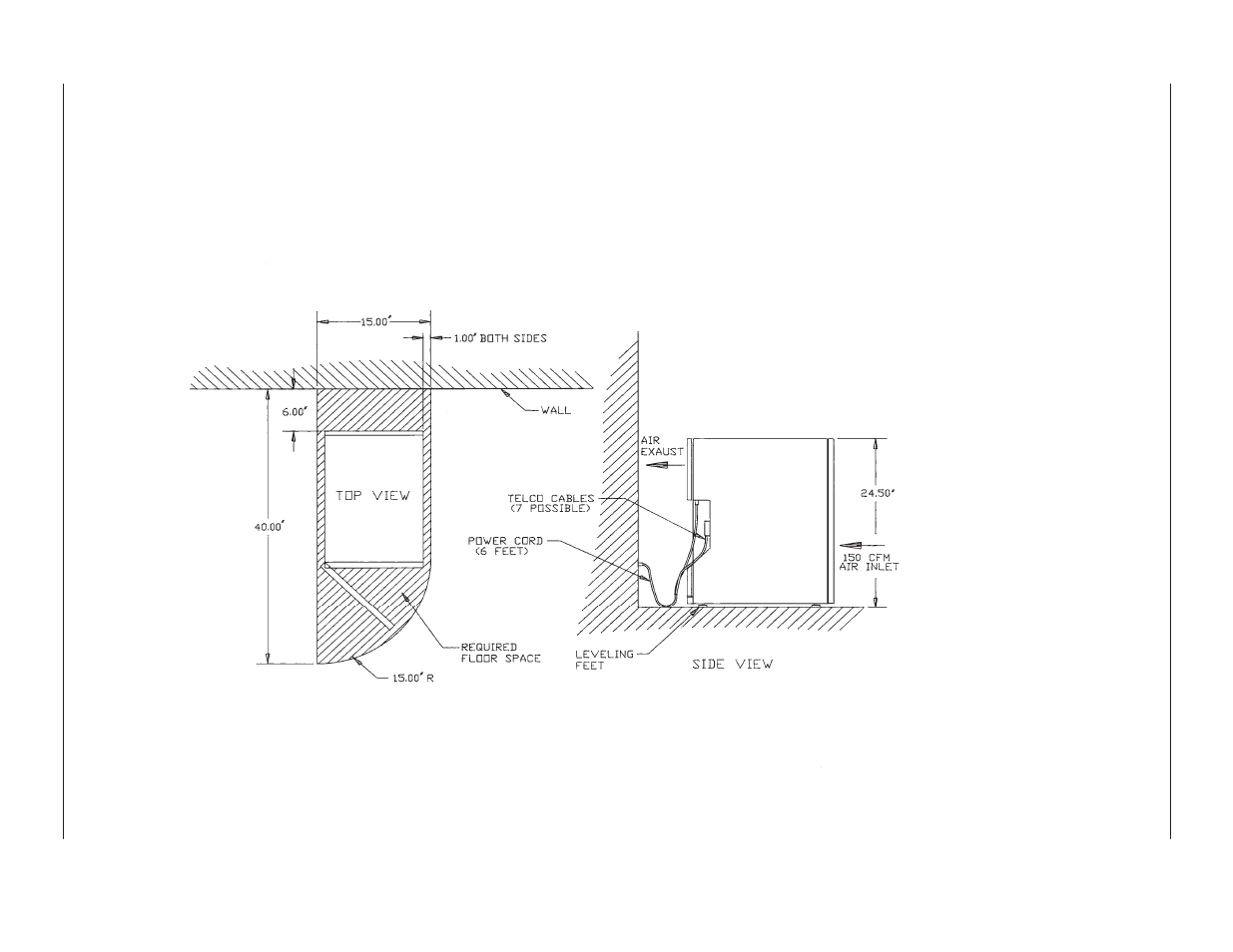

Figure 4-1
Octel Overture 200 Floor Plan for Installation in the US, Canada and Mexico
120 VAC
240 VAC
Country Specific
NEMA 5-15P
NEMA 6-15P
Country specific
USA
USA
International
- 48 VDC Permanently wired
NOMINAL
VOLTAGE
PLUG TYPE
Service Access
Rear access for system cabling
Front access for service of field
Side access not required
Acceptable Environment
Equipment room
Office environment
Maximum Heat Dissipation
1706 BTU/hr
-
-
-
-
-
-
