Hardware Replacement 9-23

Octel Overture 200/300 Serenade 3.0

PB60014–01

Transmit

Receive

Note: “Transmit ” and “Receive”
are referenced from the voice
server (i.e. DTIC–E1) side.

Grounding
Screw

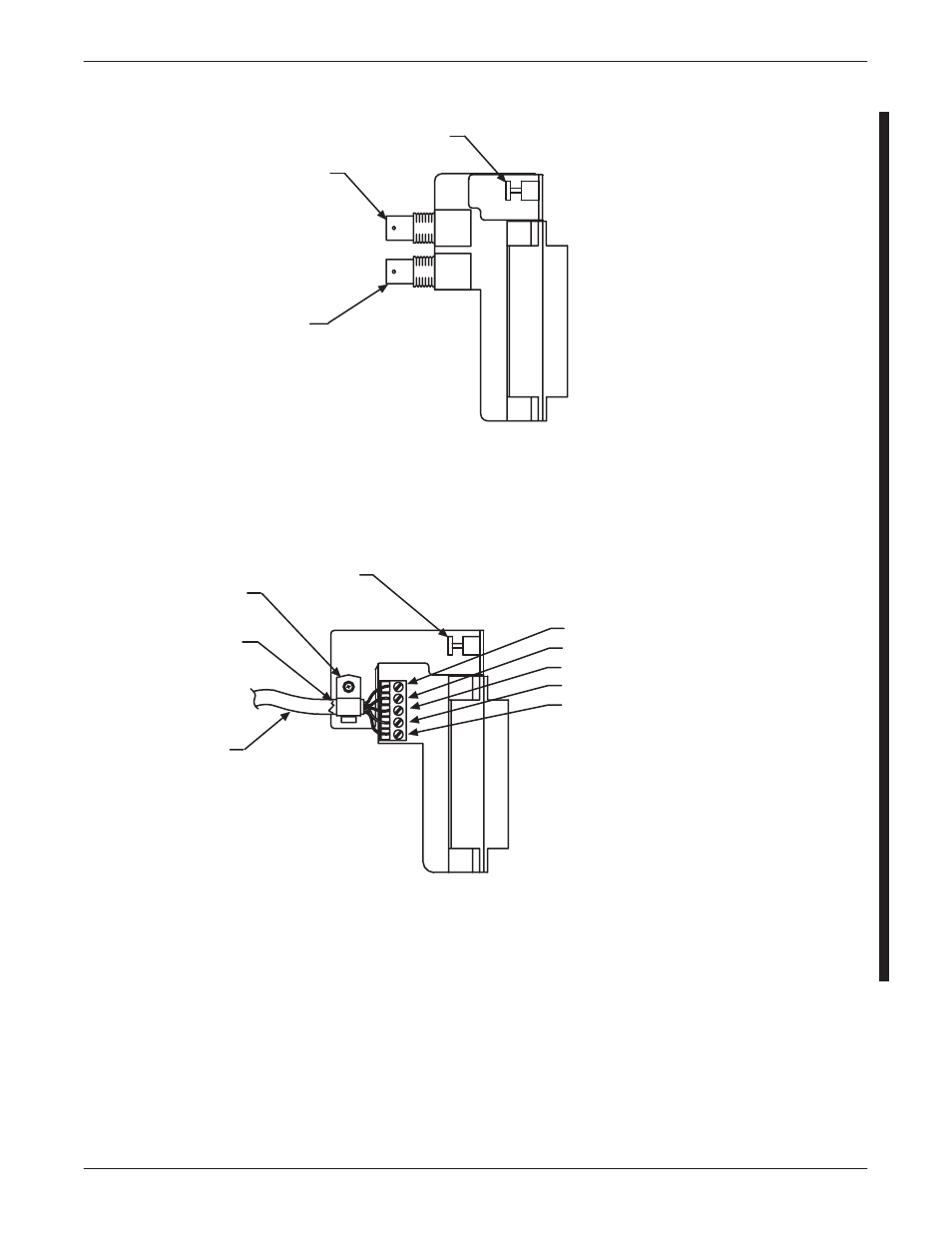

Figure 9-13 75-ohm DTIC-E1 Adapter

Folded–back
cable shield
foil or braid

Cable Clamp

I/O Cable

Tx Ring
Tx Tip
Chassis Ground
Rx Ring
Rx Tip

Note: I/O Cable bare metal
ground “drain wire” should
be connected to pin 3
(chassis ground) on the 5–
position termial block.

Tx = DTIC Transmit
Rx= DTIC Receive

Grounding
Screw

Figure 9-14 120-ohm DTIC-E1 Adapter
