Installation
4-7
Octel Overture 200/300 Serenade 3.0
PB60014–01

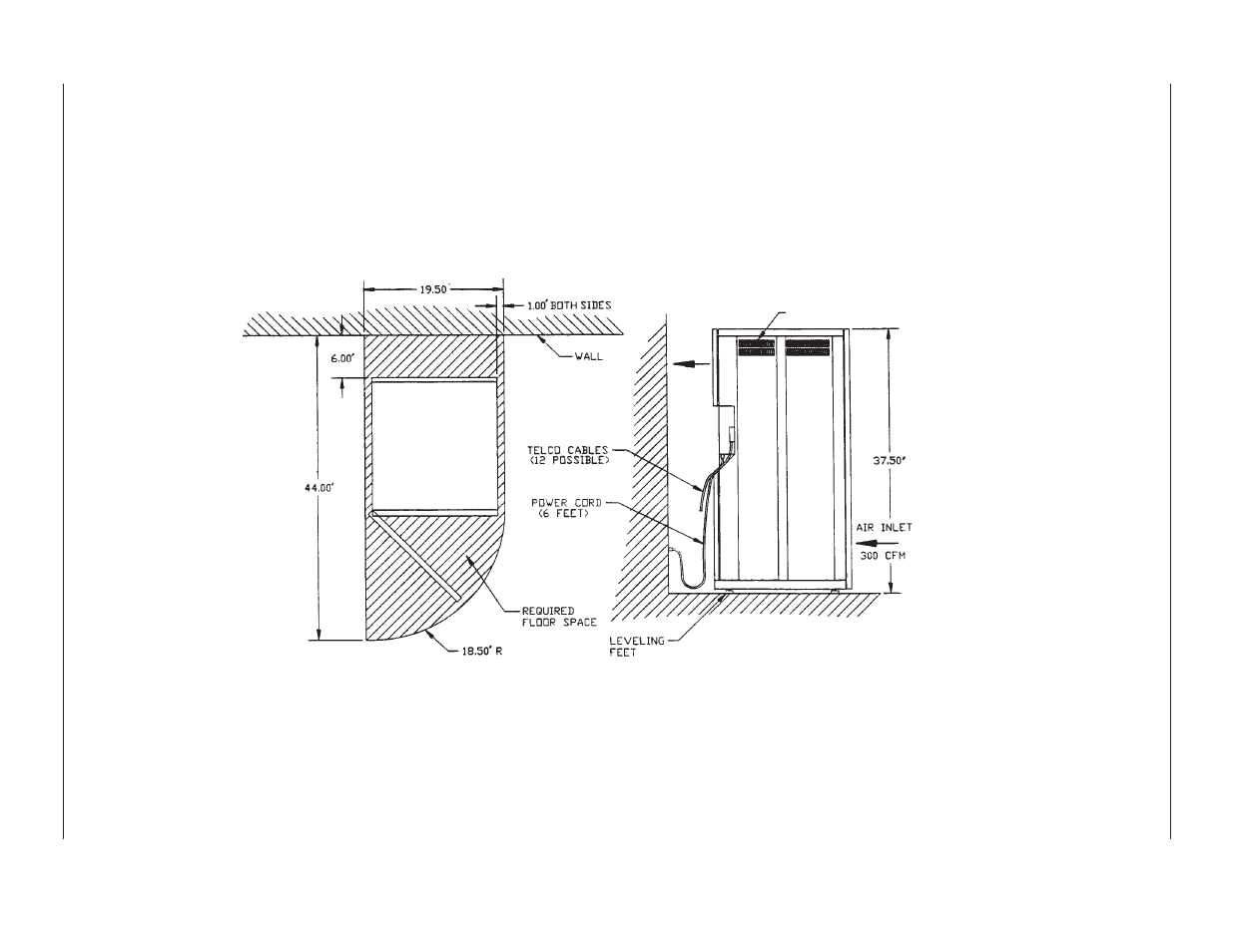

Figure 4-2
Octel Overture 300 Floor Plan for Installation for the US, Canada, and Mexico
SIDE VIEW
Service Access
Rear access for system cabling
AIR EXHAUST
AIR
EXHAUST
Front access for service of field
Side access not required
Acceptable Environment
Equipment room
Office environment
Maximum Heat Dissipation
3412 BTU/hr
-
-
-
-
-
-
TOP VIEW
120 VAC
240 VAC
Country Specific
NEMA 5-15P
NEMA 6-15P
Country specific
USA
USA
International
- 48 VDC Permanently wired
NOMINAL
VOLTAGE
PLUG TYPE
