<1. Overview>
1-70
IM 11B08A01-01E

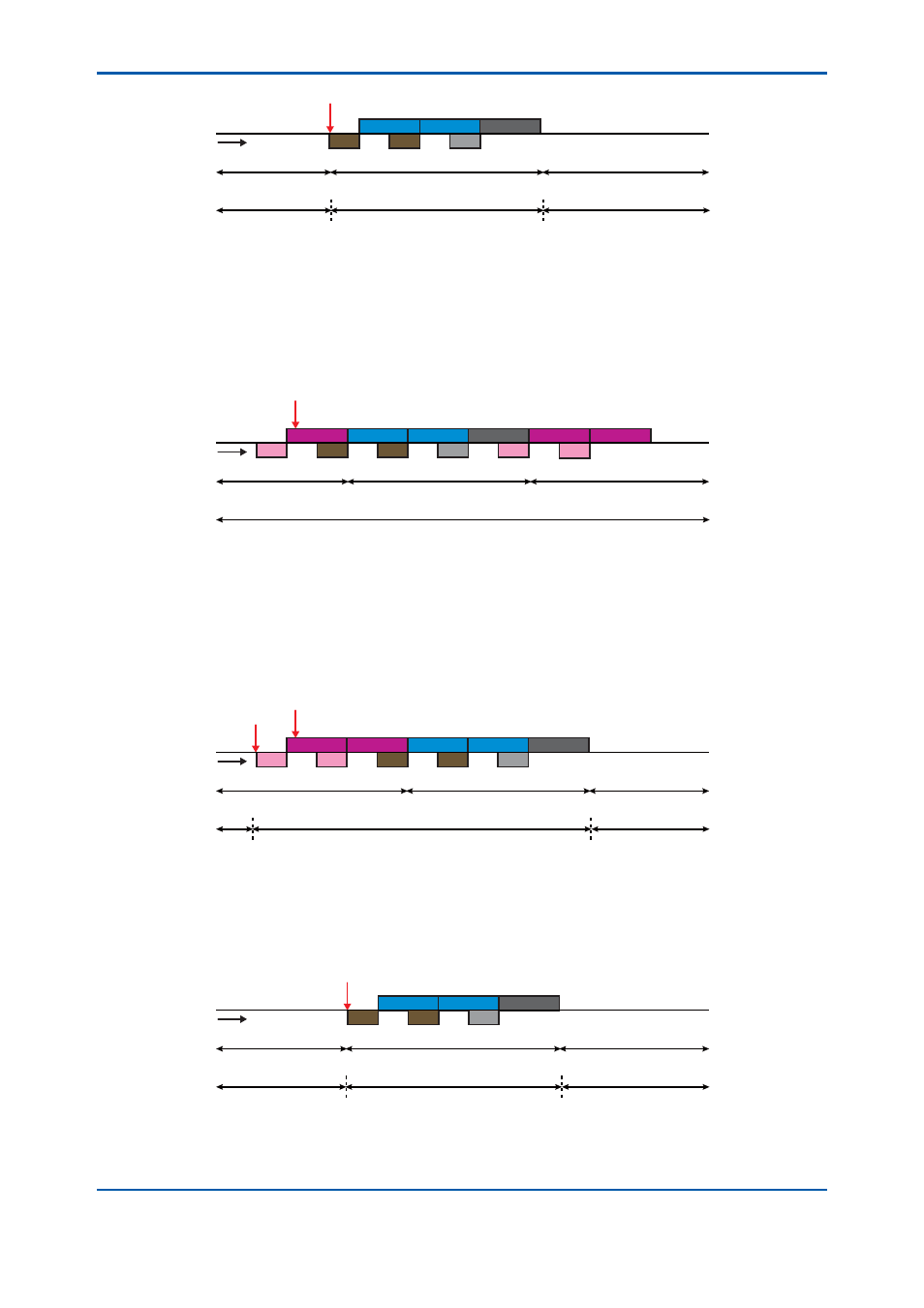

Pause Stop Run
W7 W7 W8
S8 S7 S7
Time
Stream sequence 1 Calibration 1 Stream sequence 1
Start of automatic calibration
● In the case where automatic calibration starts during the run mode in the stream
specifi cation status (for continuous measurement)
Calibration (or validation) is started when the measurement of the currently-measured
stream is completed.
When all the calibration (or validation) patterns of which automatic execution is enabled are
completed, the operation mode returns to the run mode in the stream specifi cation status
(for continuous measurement).
Run
W7 W7 W8 W1
S1 S1 S8
W1 W1
S1 S7 S7
Time
Stream specification 1 (Continuous) Calibration 1 Stream specification 1 (Continuous)
Start of automatic calibration
● In the case where automatic calibration starts during the run mode in the stream
specifi cation status (for N times of measurement)
Calibration (or validation) is started when the Nth round of the measurement of the currently-
measured stream is completed.
When all the calibration (or validation) patterns of which automatic execution is enabled are
completed, the operation mode changes to the stop mode in the stream specifi cation status
(for N times of measurement).
Run
W7 W7 W8
S8
W1
S1
W1
S1 S7 S7
Time
Stream specification 1 (Twice) Calibration 1 Stream specification 1 (Twice)
Start of automatic calibration
Run command
Stop Stop
● In the case where automatic calibration starts during the stop mode in the stream
specifi cation status
Calibration (or validation) is immediately started.
When all the calibration (or validation) patterns of which automatic execution is enabled are
completed, the operation mode returns to the stop mode in the stream specifi cation status.
Run
W7 W7 W8
S8 S7 S7
Time
Stream specification 1 Calibration 1 Stream specification 1
Start of automatic calibration
Stop Stop
● In the case where automatic calibration starts during the pause mode in the stream
specifi cation status
Calibration (or validation) is immediately started.
