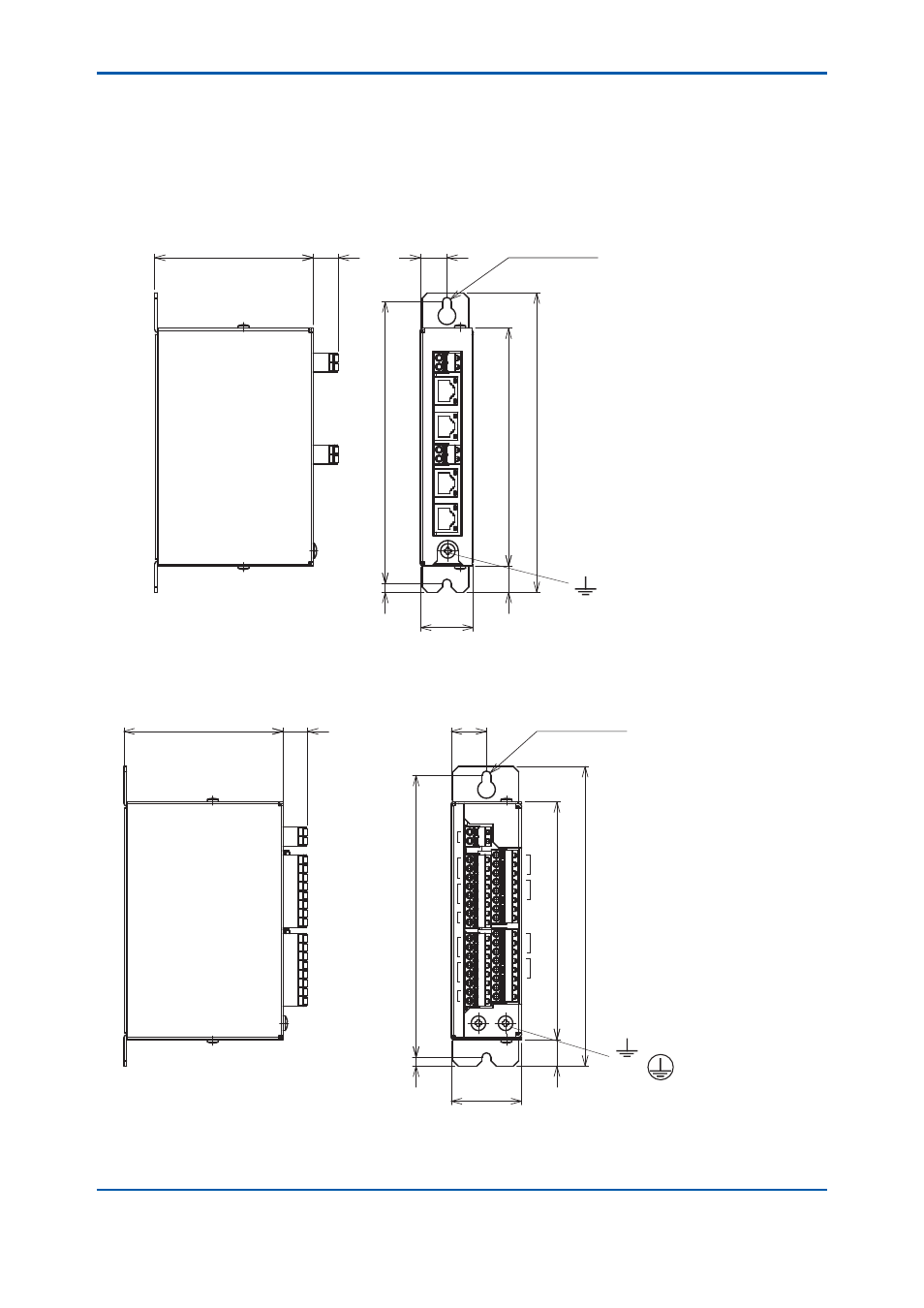

 Communication converter/Signal interrupter (disconnecter)
Rack-mounted type
• Converter for RS-422/RS-232C: K9806AS*
• Signal interrupter for Ethernet twisted pair cable: K9806AA
• Signal interrupter for RS-422 output, analog input: K9806AE
92 15
160
5
170
135
15
15
30
Unit: mm
2-holes for M4 screw
The number and the location of
the terminals depend on its part number.
• Signal interrupter for contact output (AC): K9806AN*
• Signal interrupter for contact output (DC): K9806AJ*
92 15 20
40
15
160
5
135
170
Unit: mm
2-holes for M4 screw
The number and the location of
the terminals depend on its part number.
K9806AN: Protective earth
or
Note: Rack-mounted type should be installed vertically. The space between the converters/the signal interrupters
with mark (*) should be kept more than 10 mm.
