App.F-3
IM 11B08A01-01E

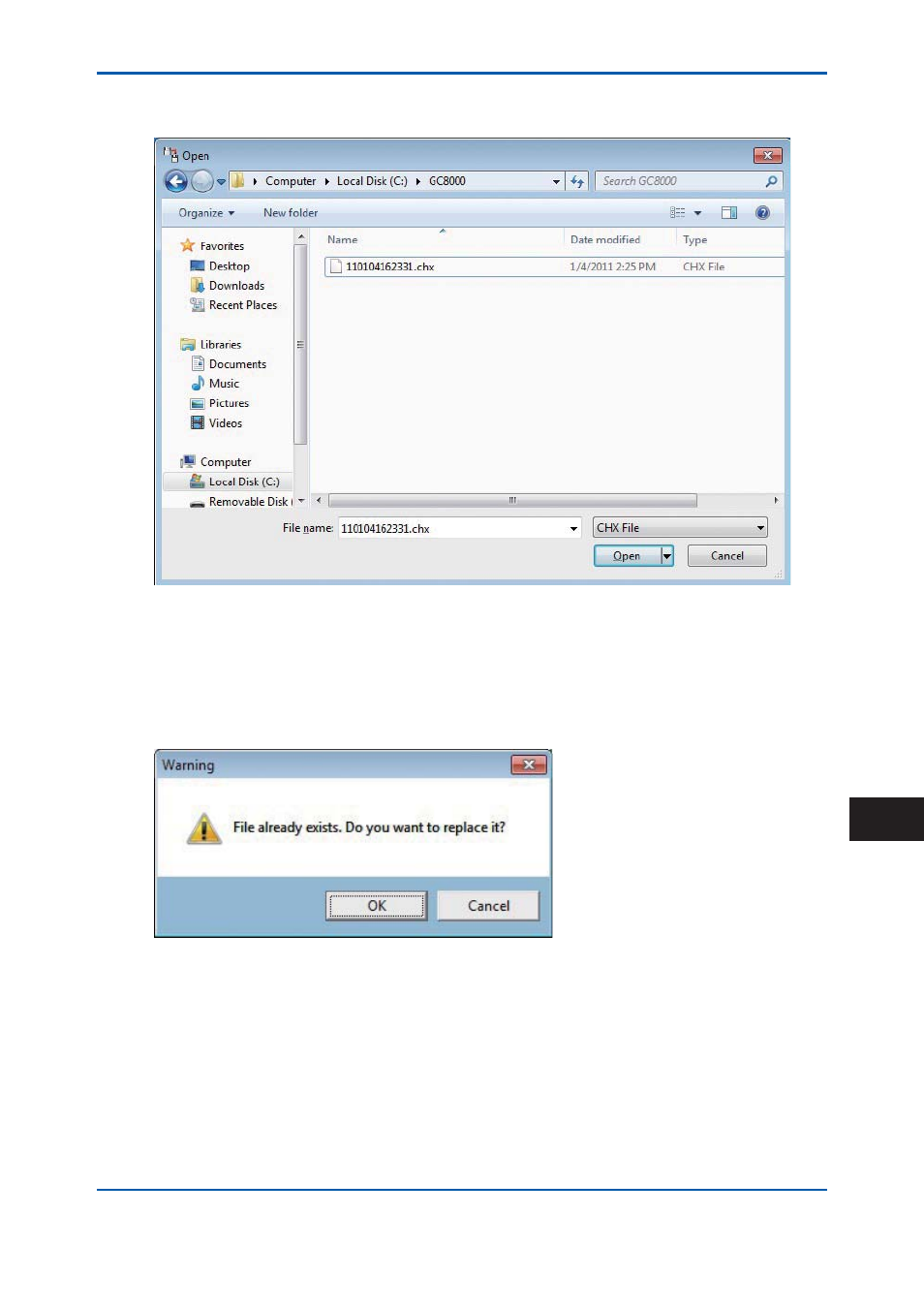

Select the chromatogram fi le of the GC8000 (*.chx).
Information about the fi le appears.
Figure 4 GCFC main window (after selecting a fi le)
Click the Convert button, and a .cdf fi le that can be read by EZChrom is created.
A .cdl fi le is also created, to be used if any error occurs. Delete it if it is not necessary.
The name and location of these two fi les are the same as those of the .chx fi le.
(The fi le extensions are “cdf” and “cdl”.)
If fi les with the same name exist, a Warning dialog box appears.
Figure 5 Warning message
 Exit
Click the Exit button, or click the Close command on the File menu.
2nd Edition : May 11, 2012-00
App.F
