4.8 Help Screen
The help screen displays explanations of buttons and icons displayed on various screens.

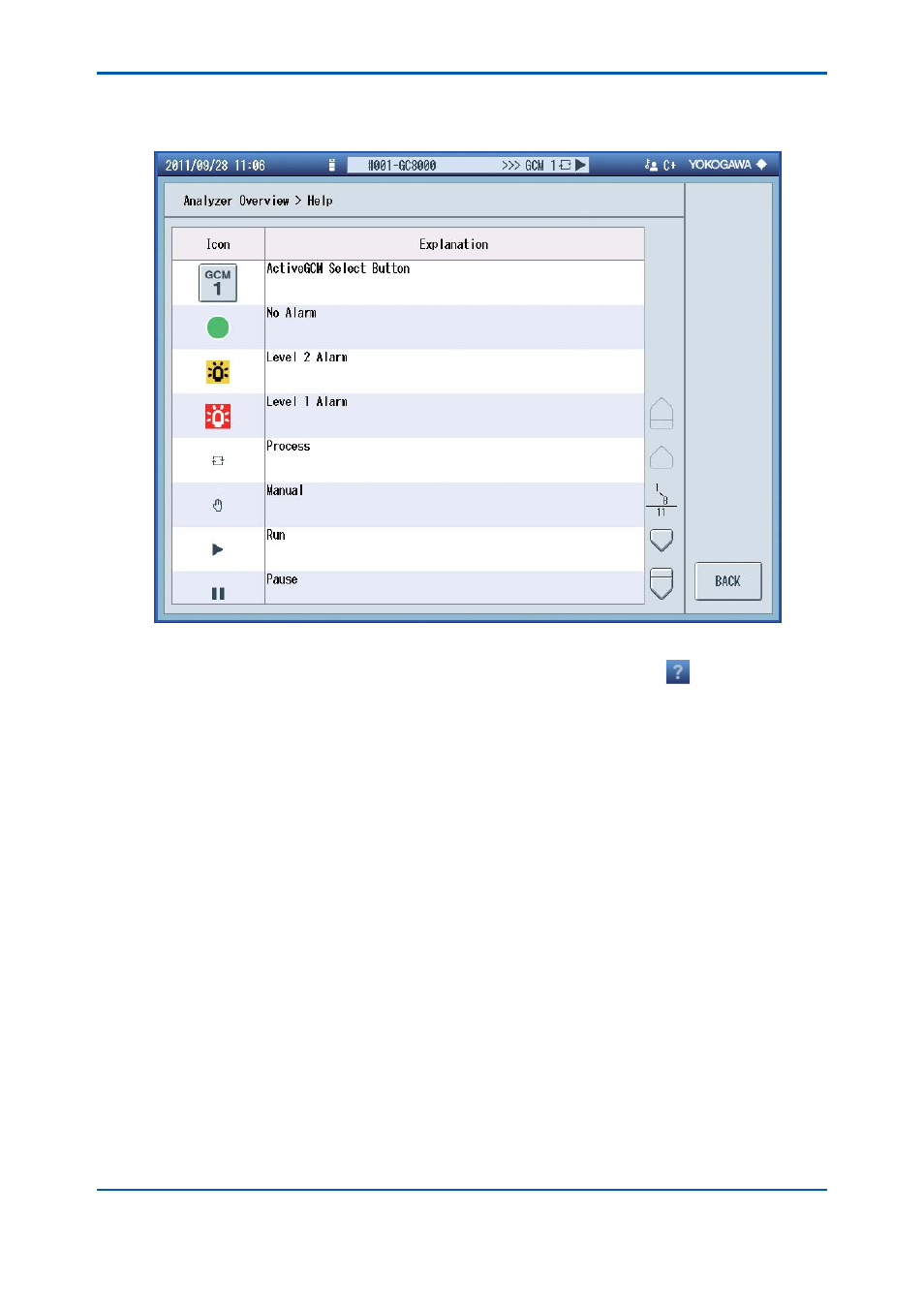

Figure 4.86 Example of Help Screen (Analyzer Overview Screen)
The help screen can be accessed from the screens listed below. Click the on the respective
screen.
Analyzer overview screen
Analyzer operation screen
Analysis result screen
Chromatogram Screen
Alarm screen
Analyzer map screen
Setting screen
Pressing the BACK button recalls the original screen.
