Calibration Set
GCM #1 Cal #1
> - Cal stream 4
- Cal times 4
- Auto cal Executed
- ValStr# before Cal 3
- ValStr# after Cal 3
- Val before Cal times 1
- Val after Cal times
1
Menu Peak Stop Main GCM# Cal#
F1 F2 F3 F4 F5 F6
Enable/disable automatic calibration with function keys.
Start (F2): Automatic calibration start command
Stop (F3): Automatic calibration stop command

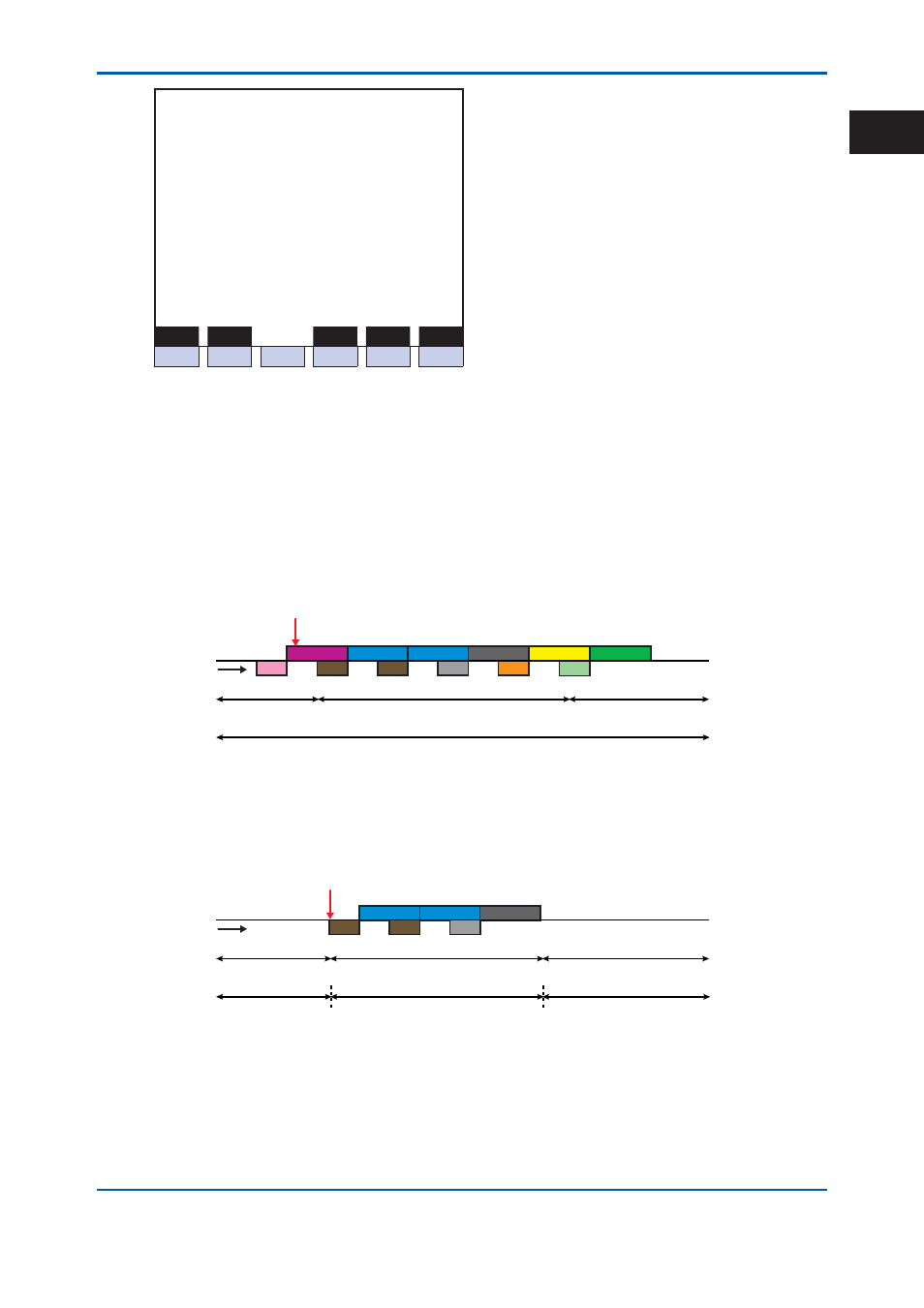

Figure 1.33 An example of the calibration/validation setting screen on the GC-HMI EtherLCD.
● In the case where automatic calibration starts during the run mode in the stream sequence
status
Calibration (or validation) is started when the measurement of the currently-measured
stream is completed.
When all the calibration (or validation) patterns of which automatic execution is enabled are
completed, measurement is resumed from the next stream in the run mode in the stream
sequence status.
Run
W7 W7 W8 W3
S2 S3 S8
W1 W2
S1 S7 S7
Time
Stream sequence 1 Calibration 1 Stream sequence 1
Start of automatic calibration
● In the case where automatic calibration starts during the stop mode in the stream sequence
status
Calibration (or validation) is immediately started.
When all the calibration (or validation) patterns of which automatic execution is enabled are
completed, the operation mode returns to the stop mode in the stream sequence status.
Stop Stop Run
W7 W7 W8
S8 S7 S7
Time
Stream sequence 1 Calibration 1 Stream sequence 1
Start of automatic calibration
● In the case where automatic calibration starts during the pause mode in the stream
sequence status
Calibration (or validation) is immediately started.
When all the calibration (or validation) patterns of which automatic execution is enabled are
completed, the operation mode changes to the stop mode in the stream sequence status.
