<2. Installation, Piping, and Wiring>
2-18
IM 11B08A01-01E
 TIIS
For TIIS explosionproof wiring connections, use cable packing adapters or sealing fi ttings (for
Ethernet cable).
A
Connection port of the protection system
Connection port of the electronics section *1
Connector *4
Cable
packing adapter
Nipple
Gasket
Nut
Detail of A
Sealing fitting
(Accessory kit)
*2
Electronic section
(Pressurized enclosure)
Protection system
(Flameproof enclosure)
Cable packing adapter
(Accessory kit) *3
*1: Any of the six connection ports of the electronics
section can be equally used.
*2: To mount the sealing fitting, remove the cable packing
adapter from one of the six connection ports of the
electronics section.
*3: To use the protection system, remove the plug from its
connection port and mount the cable packing adapter.
*4: A connector (3/4NPT) can be mounted on any of the
connection ports.

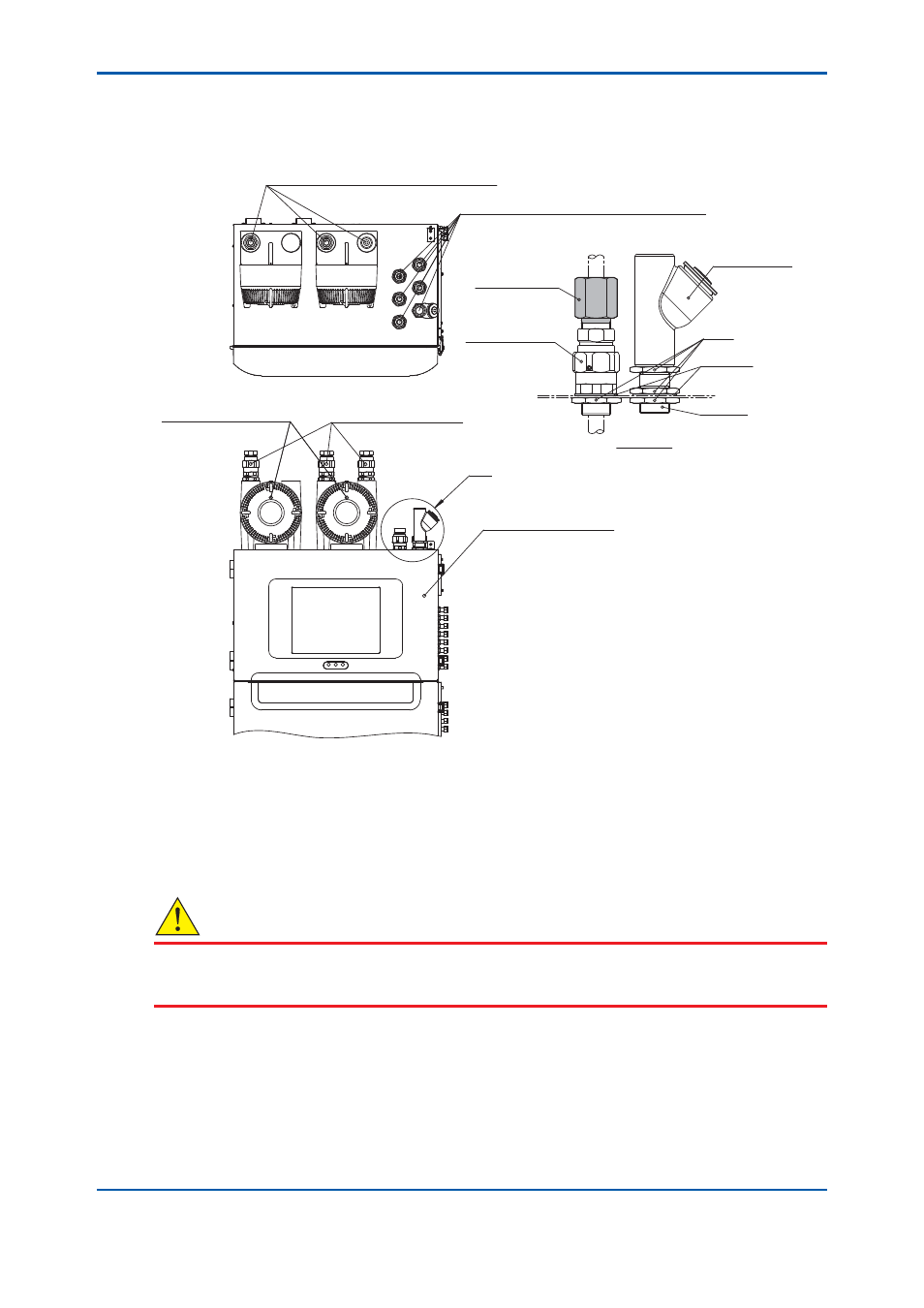

Figure 2.12 Wiring in TIIS specifi cation
 Connecting cables to the protection system
Remove the attached plug and mount the cable packing adapter (G3/4) in the accessory kit
on the connection port. Use the connector in the accessory kit for the cable packing adapter
(3/4NPT).
CAUTION
The minimum packing (for ø8.0 to ø9.0) is attached to the cable packing adapters at shipment.
Change it to an appropriate packing for the cable O.D. (See Table 2.6.)
2nd Edition : May 11, 2012-00
