Yokogawa GC8000 Process Gas Chromatograph - Manual (Page 412)

<6. Maintenance>
6-59
IM 11B08A01-01E
F0252.ai
1
9
air in
4
2
3
10
11
5
6
8
7
No. Part name Part number Quantity
K9192WQ K9192WP
1 BASE K9192WD 1 1
2 BODY K9192WR 1 1
3 CAP K9192WS 1 1
4 PISTON K9192WT 1 1
5 DIAPHRAGM K9192WL 1
K9192WV 1
6 O-RING L9817FP 1 1
7 SPRING K9192WU 4 4
8 PIN L9192WK 1 1
9 SPRING K9035AW 1 1
10 O-RING L9817MY 1 1
11 SCREW Y9335JU 4 4

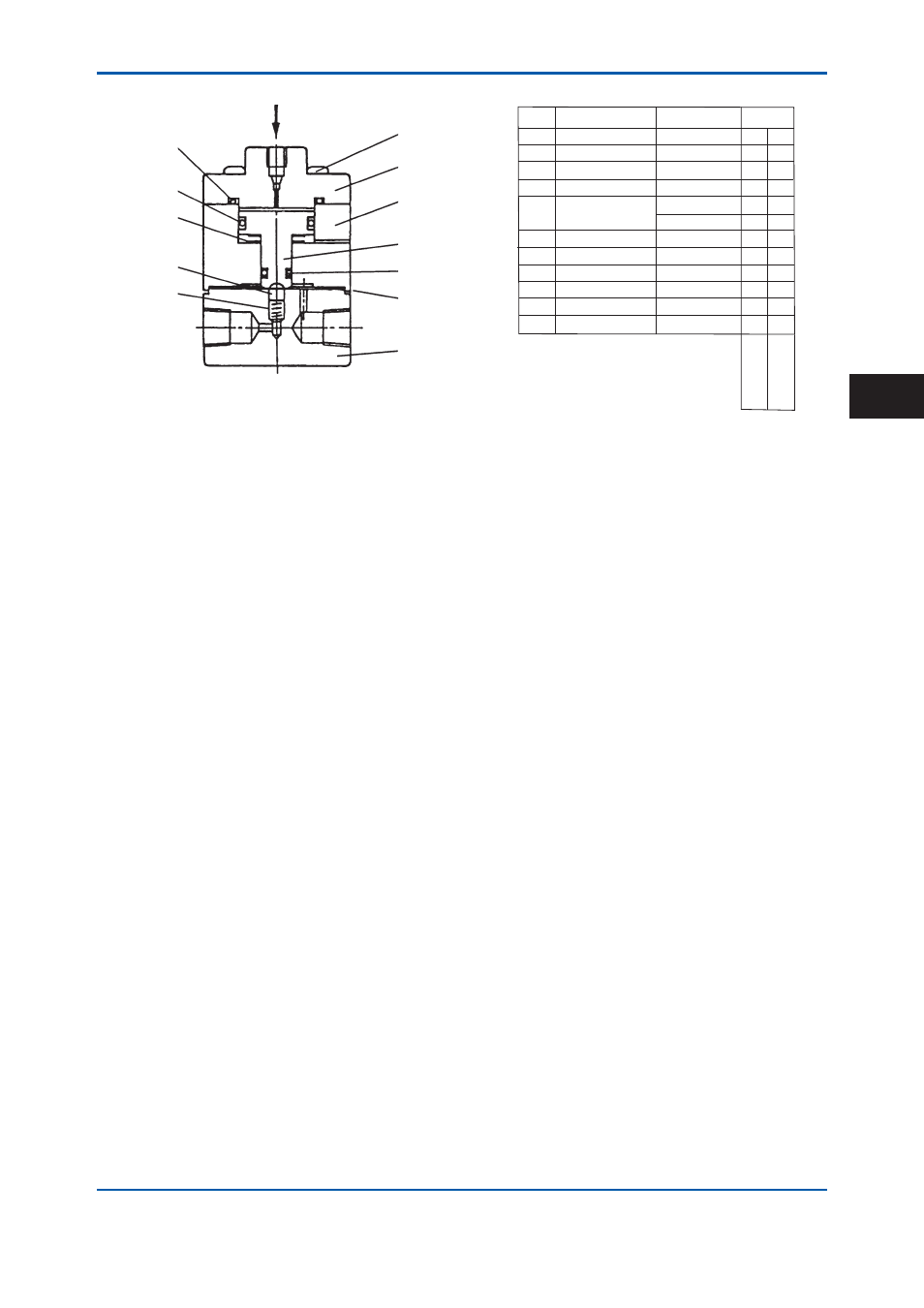

Figure 6.52 Atmospheric-Pressure Balancing Valve
