8 how to check the chromatogram, Alarm details – Yokogawa GC8000 Process Gas Chromatograph User Manual
Page 167
<3. Basic Operation and Startup>
3-16
IM 11B08A01-01E
Alarm Details

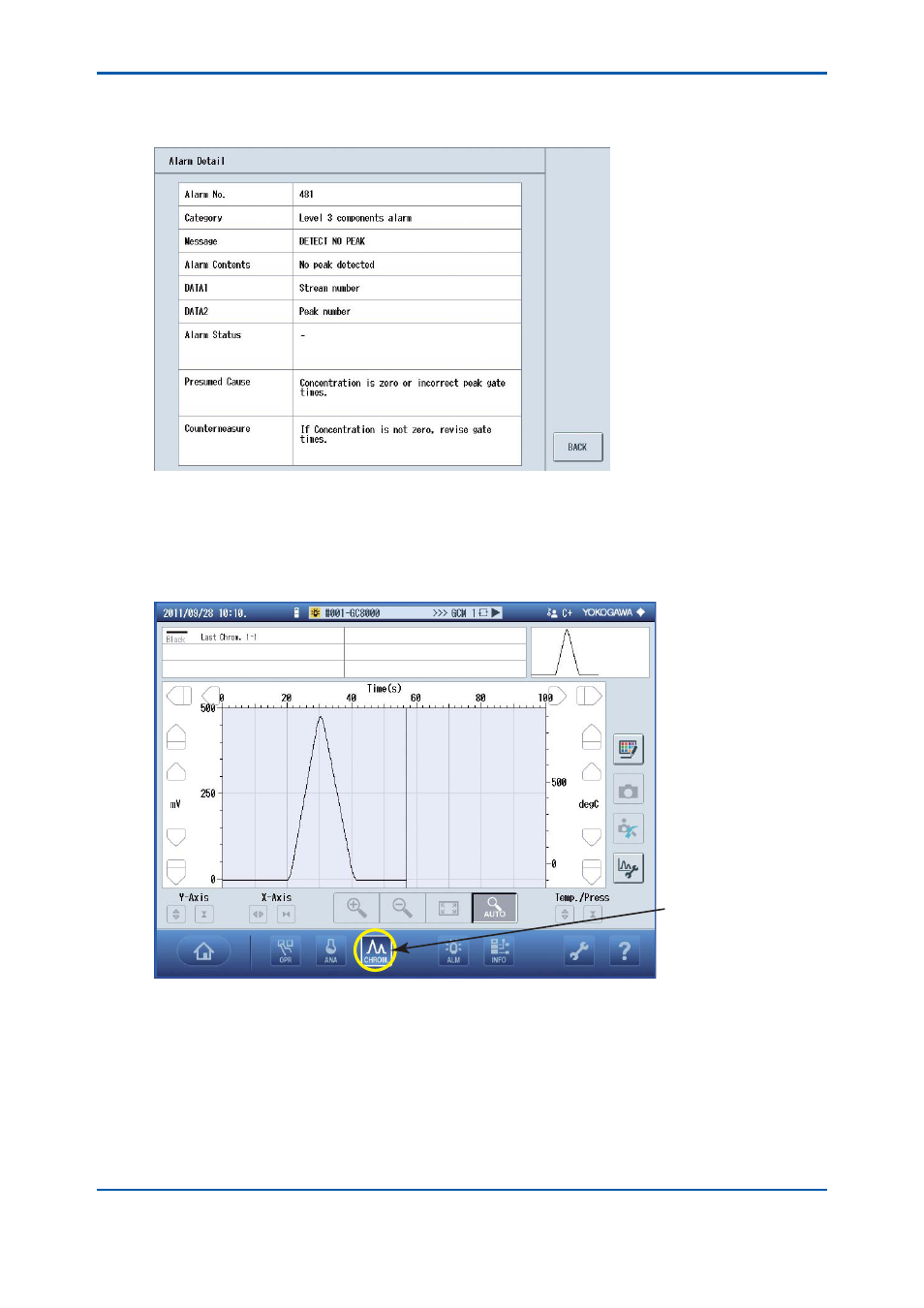

The alarm details screen displays details of alarms.
Figure 3.19
3.1.8
How to Check the Chromatogram
When the icon (5) on the navigation bar is pressed (see Figure 3.4), the Chromatogram screen is
displayed.
F0457.ai
Press this icon.
Figure 3.20
Example of Chromatogram Screen
