<3. Basic Operation and Startup>
3-15
IM 11B08A01-01E

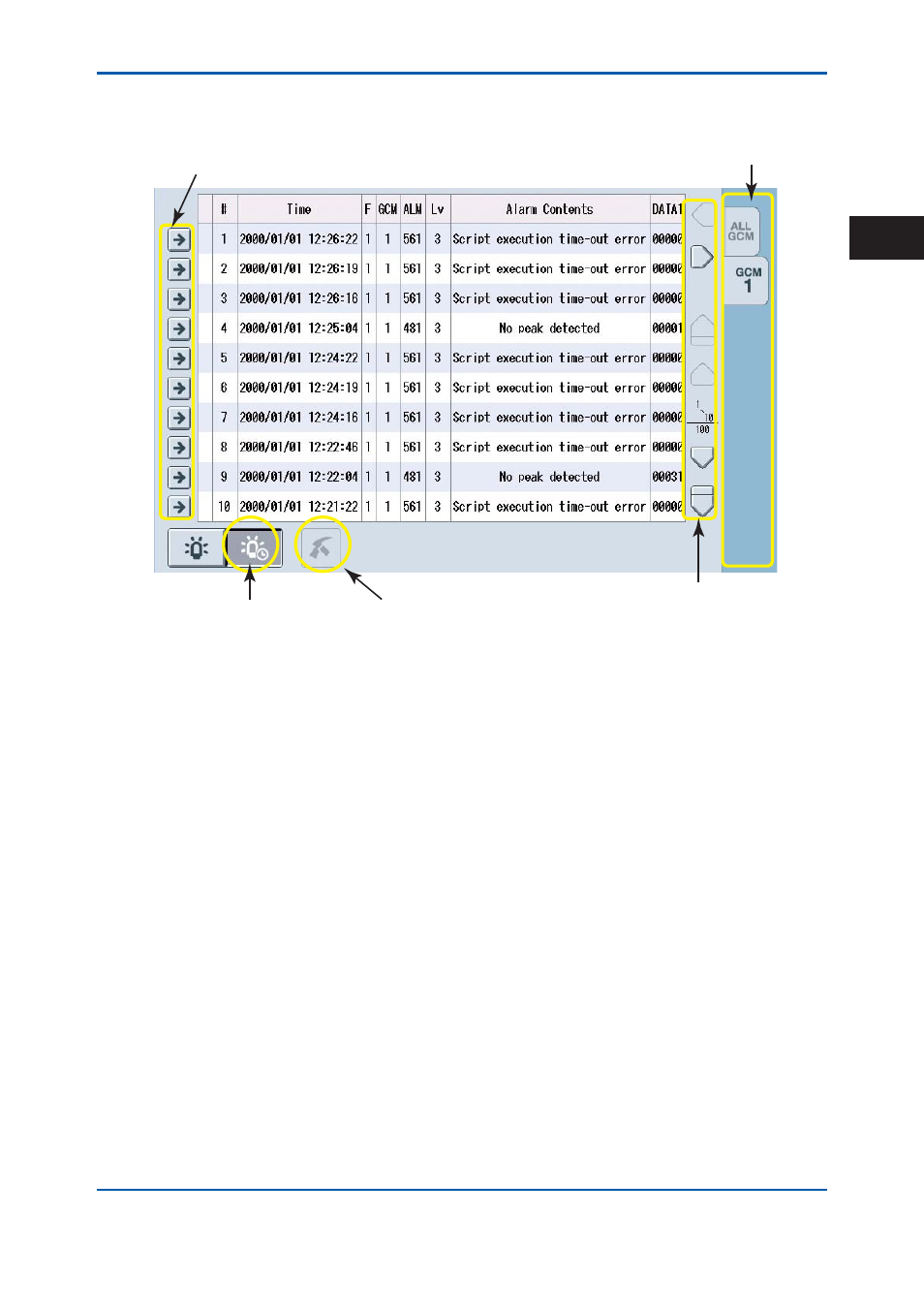

 Alarm History Screen
Screen components are as shown below.
F0483.ai
GCM tab
Table scroll button
Alarm details
Alarm history Clear alarm history
Figure 3.18
Pressing the alarm history button on the lower left of the screen causes a transition to the alarm
history screen.
This screen displays a history of alarms which occurred with the GC8000 until the alarm display
is requested, either for all GCMs or for each GCM.
Pressing the table scroll button causes scrolling through table display area.
Pressing the clear alarm history button erases the alarm history. This operation is available if the
user level is set to B or higher.
Pressing the alarm details button displays the alarm details screen. See Alarm Details.
2nd Edition : May 11, 2012-00
