<4. GC-HMI (touch panel)>
4-45
IM 11B08A01-01E
F0460.ai
Detail selection

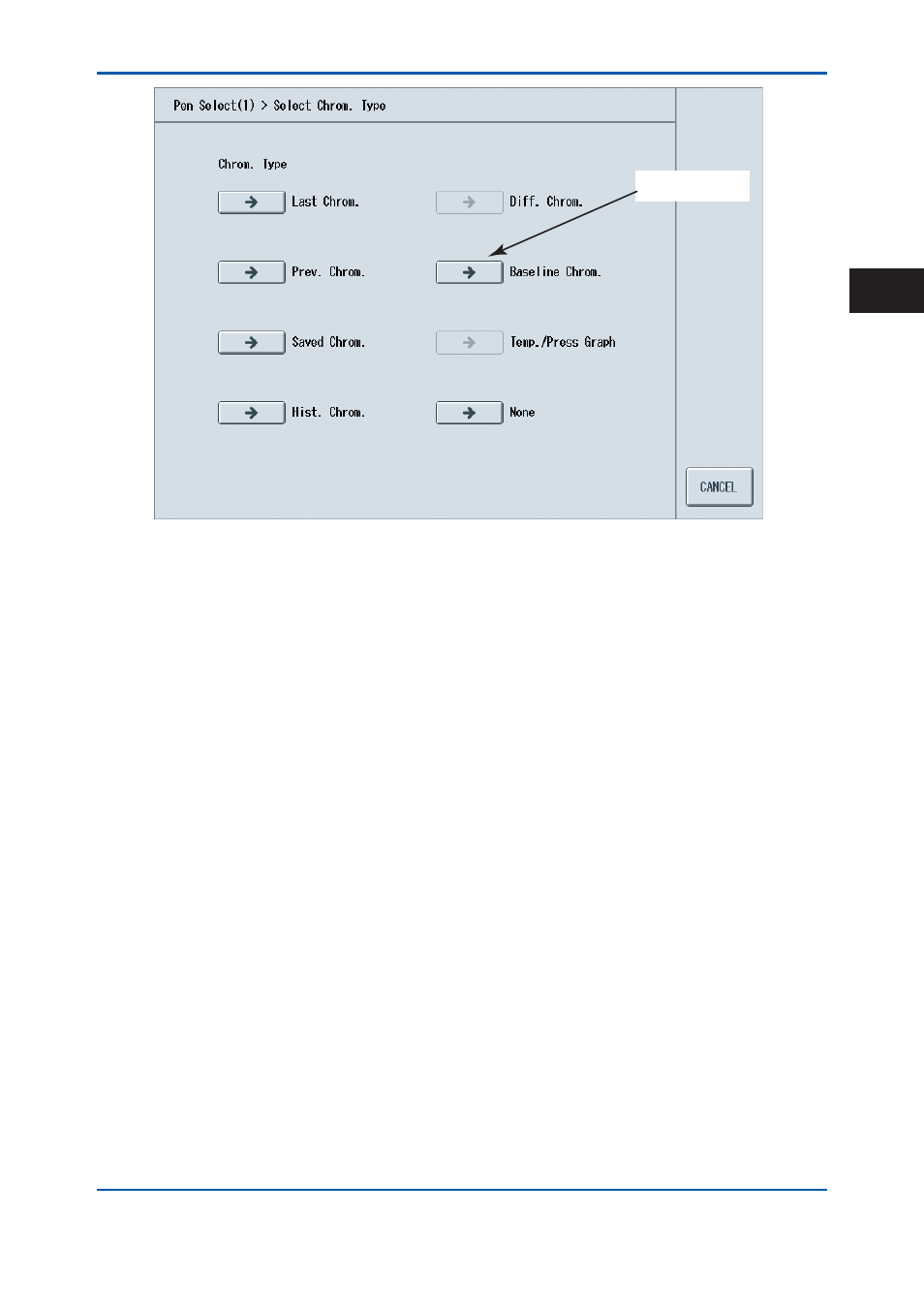

Figure 4.60 Example of Chromatogram Selector Options
Listed below are the chromatograms that can be displayed.
Last Chrom.: The chromatogram for the current measurement.
Prev. Chrom.: The chromatogram for the previous analysis.
Saved Chrom.: A chromatogram which a user saved in the GC8000.
Hist. Chrom.: A chromatogram which was automatically saved in the GC8000.
Diff. Chrom.: A chromatogram representing differences between two chromatograms.
A differential chromatogram itself cannot be selected as a differentiation
object.
Baseline Chrom.: A chromatogram which a user saved as a baseline chromatogram in the
GC8000 unit.
