<4. GC-HMI (touch panel)>
4-63
IM 11B08A01-01E

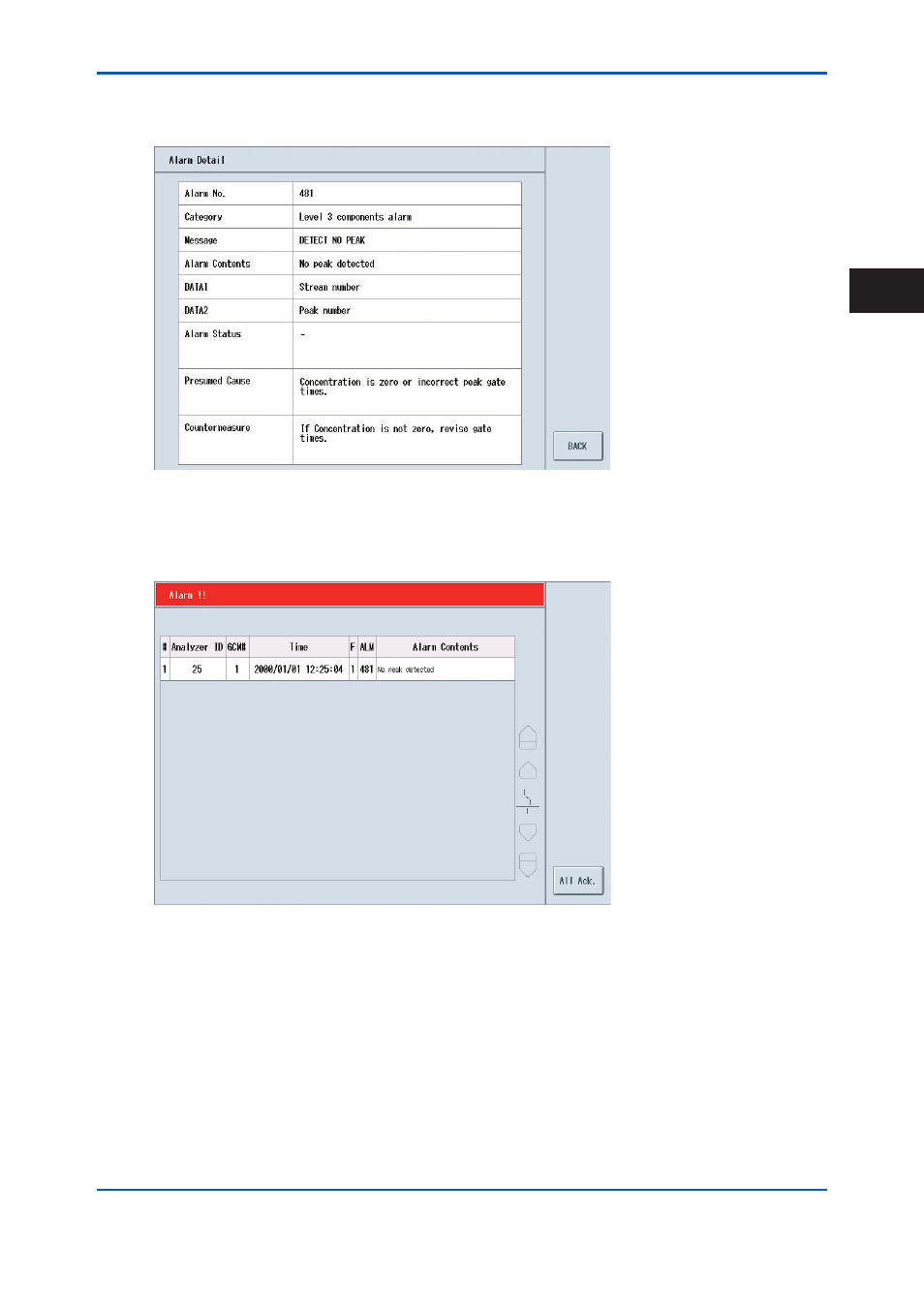

4.7.3 Alarm Details
The alarm details screen displays details of alarms.
Figure 4.84
4.7.4 Alarm Popup Screen
This screen appears automatically when an alarm occurs.
Figure 4.85
The user can confi gure which alarm level triggers the alarm popup screen. See ## Alarm Popup
Restriction on page 4-18??.
The display sequence is not related to alarm levels. The newest occurrence is added to the top of
the table.
The table contains a maximum of ten latest alarm occurrence. The table content is updated upon
occurrence of an additional alarm.
Pressing the Check all button recalls the screen that was displayed immediately before the alarm
popup.
