<3. Basic Operation and Startup>
3-3
IM 11B08A01-01E

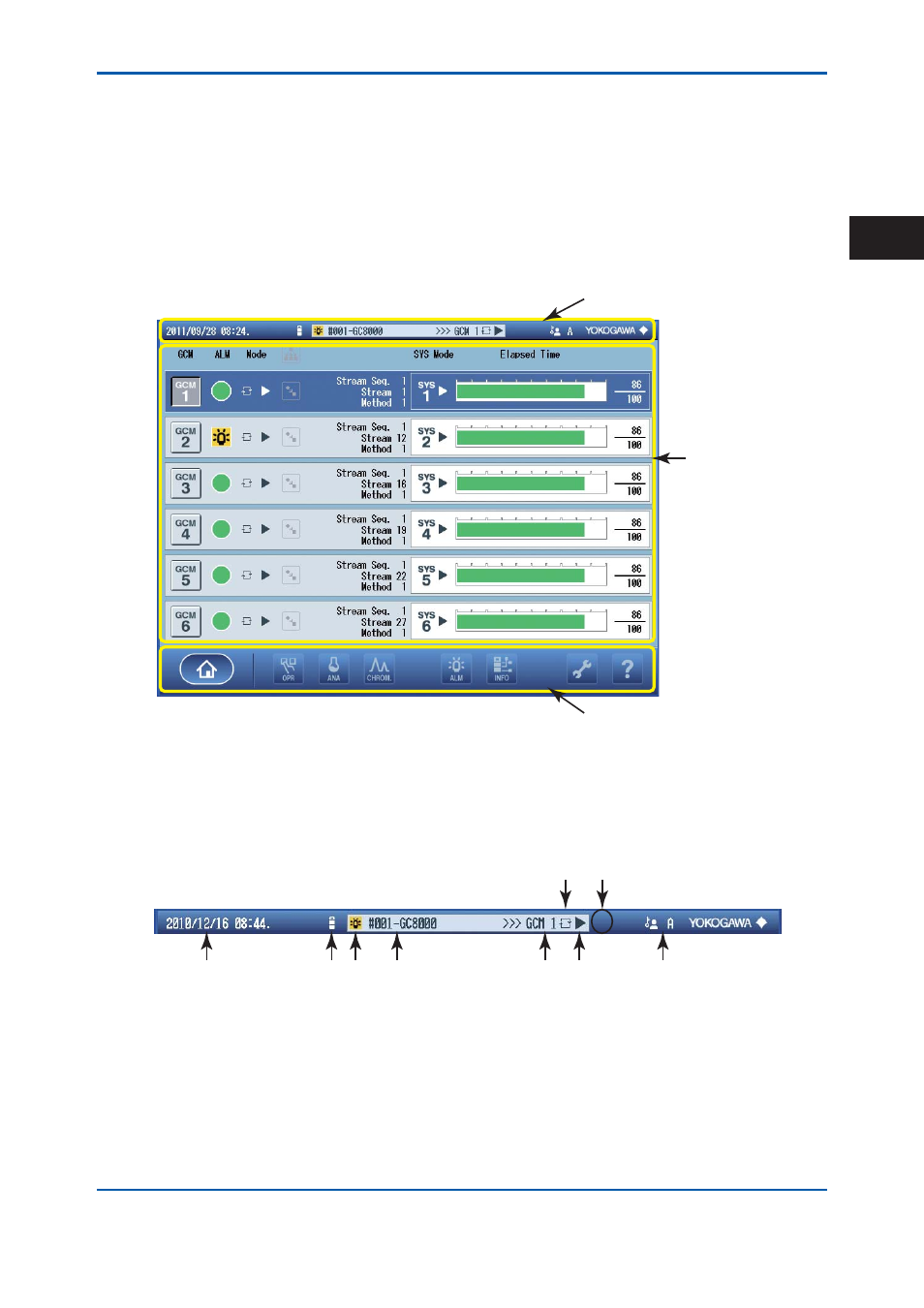

3.1.2 GC-HMI (Touch Panel)
 Screen Layout
The display screen consists of three display areas:
(A) Caption banner: Shows various items of information on the GC-HMI.
(B) Navigation bar: Displays controls to change to different screens on the contents
area, and content types.
(C) Contents area: Displays operations and status of the GC8000.
(A) Caption banner
(C) Contents area
(B) Navigation bar
F0401.ai
Figure 4.1 Screen Layout
(A) Caption banner
This banner shows various items of information on the GC-HMI. It is displayed on almost all
screens.
F0402.ai
(8)
(1)
(6)
(2) (3) (4) (5) (7) (9)
Figure 4.2 Items Displayed on the Caption Banner
2nd Edition : May 11, 2012-00
