(C) GCM operating status display area
Buttons for moving to a dialog for changing GCM settings
F0433.ai
Buttons for changing GCM operating status/mode GCM detector/valve control buttons
GCM control buttons

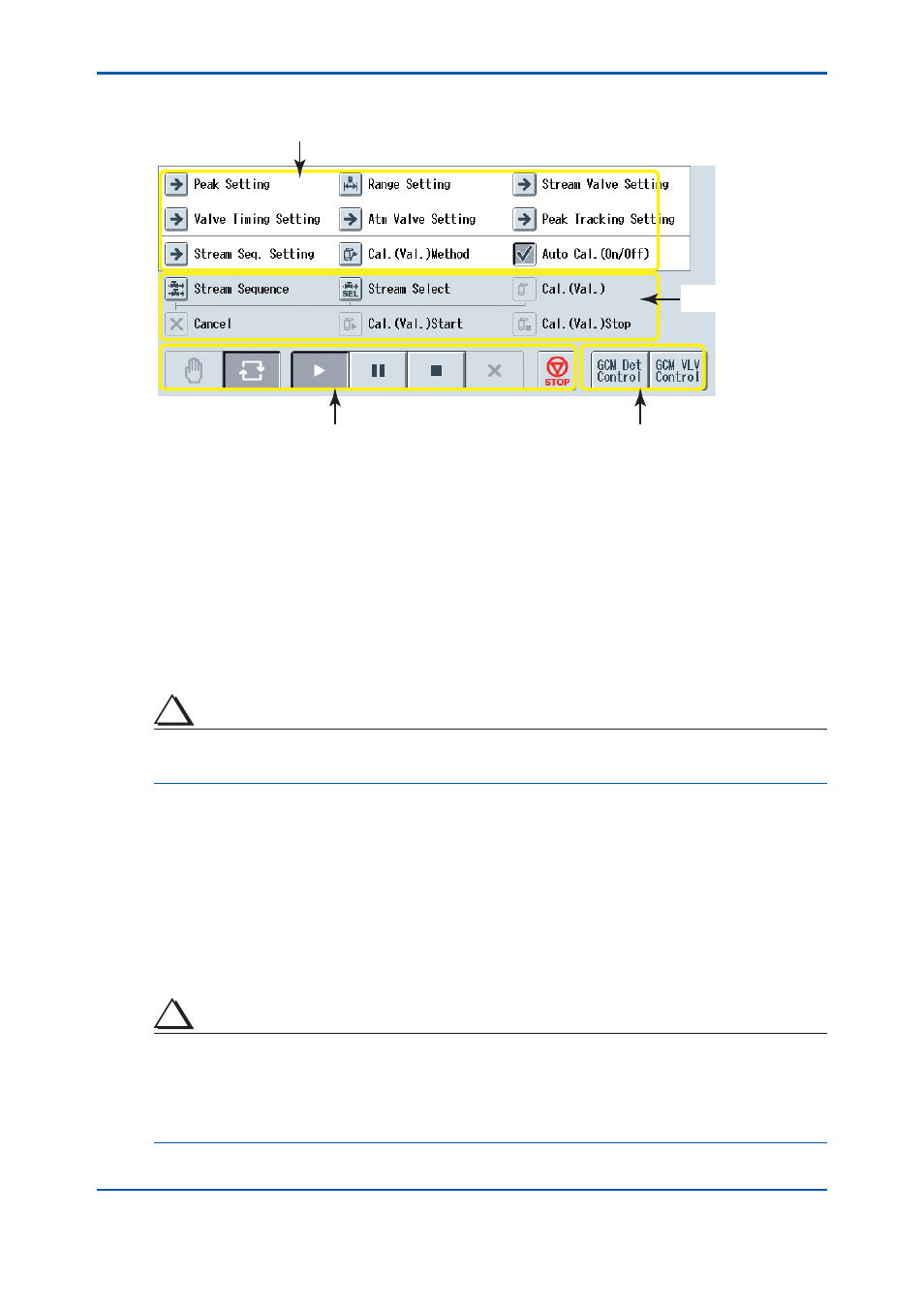

Figure 4.33 Example of GCM Operating Status Display Area
(1) Changing the operating status
This section describes how to change the operating status (GCM status/operating mode/
measurement status) of the active GCM or of each SYS.
 GCM status
Select the GCM status Process or Manual.
Process: Status for performing measurement and calibration.
Manual: Status for performing manual operation.
TIP
This operation is available if the user level is set to C or higher.
Status change is only possible when the operating mode is Stop.
 Operating mode
Select the desired operating mode of the active GCM or of each SYS from the following:
Run: Runs measurement.
Pause: Pauses the run.
Stop: Stops the run.
Cancel command: Cancels the operating mode command.
Forced stop: Forces operating mode to stop.
TIP
• The Run, Pause, Stop, and Cancel command actions are enabled for user level B or higher.
• The Forced stop action is enabled for user level C+.
• The Pause action is enabled only for the active GCM. It is disabled for each SYS.
• The operating mode can be set on the analyzer overview screen and the analyzer operation screen. The
Forced stop action can only be executed on the analyzer operation screen.
