3.1.6 How to Check the Analysis Result
When the icon (6) on the navigation bar is pressed (see Figure 3.4), the analysis result screen is
displayed.
F0472.ai
Press this icon.

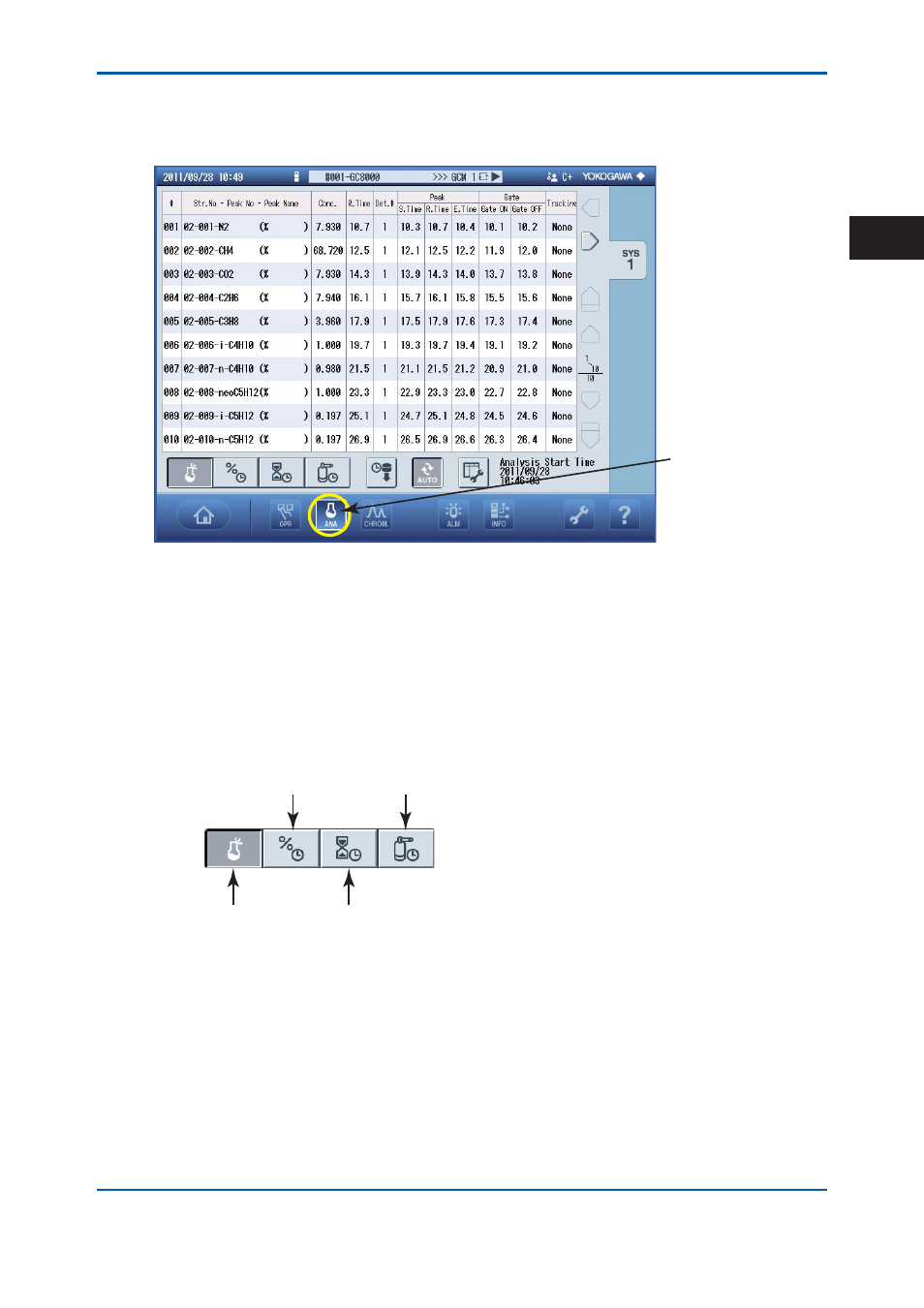

Figure 3.10 Example of Analysis Result Screen
The display screen consists of the following screens:
Analysis result screen
Concentration analysis history screen
Retention time history screen
Calibration factor history screen
The above screens are displayed by pressing the corresponding buttons located in the lower left
of the screen:
F0473.ai
Concentration analysis history
Analysis result
Calibration factor history
Retention time history
Figure 3.11 Buttons for Analysis Result Screens
