 Popup menu
Right-clicking the Watch window causes frequently-used functions to be displayed by popup.
For details, see the Debug menu.
3.4 GCM Setting/Status Window
In the GCM Setting/Status window, GCM data can be set in the GCM Setting window, while you
can check the setting details on the GCM Status window.
Although the GCM Setting and GCM Status are independent windows, they are displayed in the
same position in the initial status. Click the tab of a required window to display it.
Details of data set using the GCM Setting tab are not saved in a script fi le (*.ymb), but in a GCM
setting data fi le with the same fi le name in the same directory.

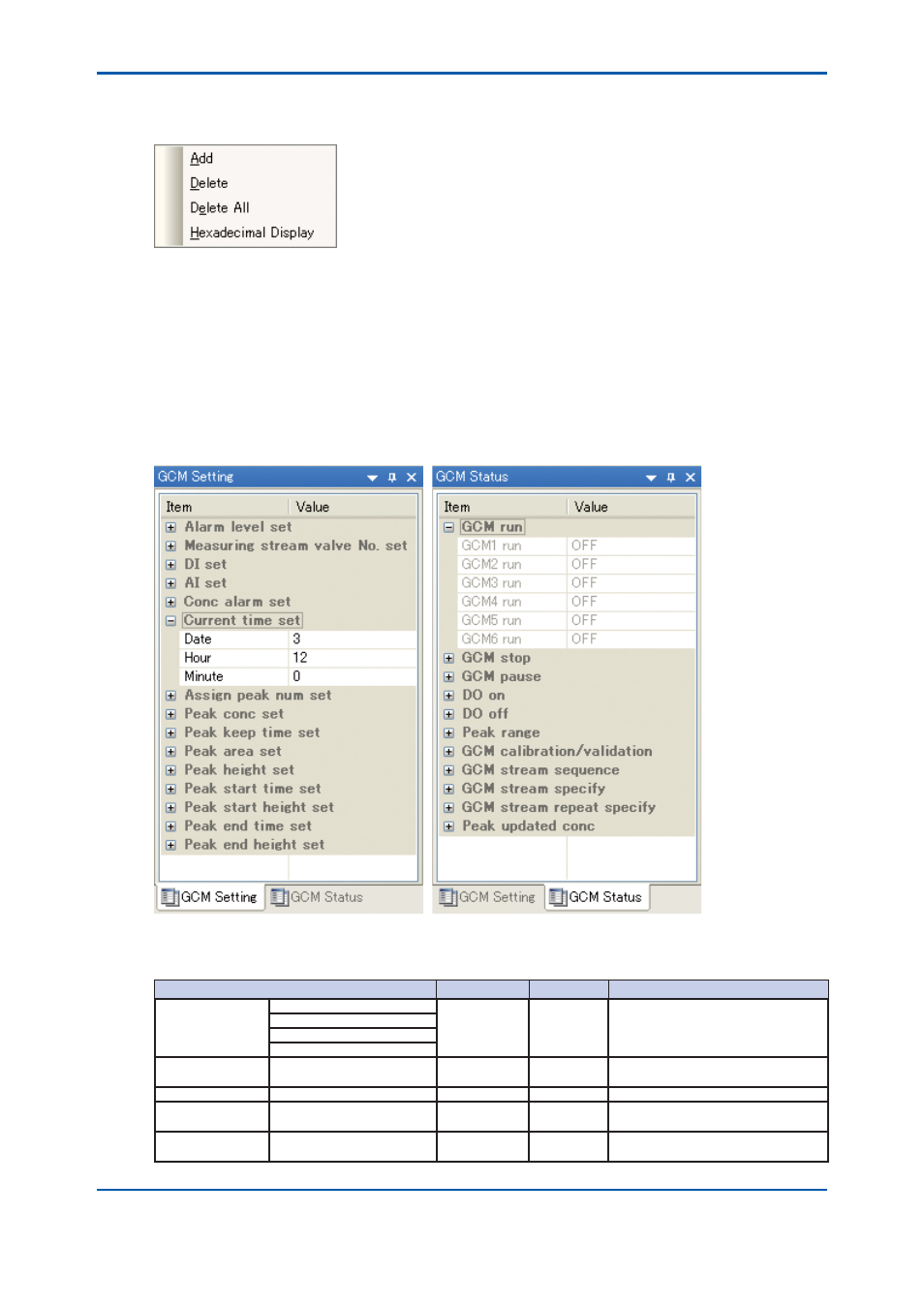

Figure 8 GCM Setting window (left) and GCM Status window (right)
Table 2 Description of the GCM Setting Window
Setting description Setting range Initial value Accuracy
Alarm level set GCM1 to 6 Level1/2 alarm ON, OFF OFF None
GCM1 to 6 Level1 alarm
GCM1 to 6 Level2 alarm
GCM1 to 6 Conc alarm
Measuring stream
valve No. set
GCM1 to 6 stream no 1 to 31 1 None
SI set DI01 to 32 status ON, OFF OFF None
AI set AI01 to 16 0.000 to 1.000 1.000 Three decimal places, signifi cant
number of digits ≤ 7
Conc alarm set Peak#001 to 999 conc
alarm
On, OFF OFF None
