Item No.
Board Name
Part Number (AS)
Note
Oven
12 Oven CPU Card
K9804AA
(I. Oven, T1)
K9084AB
(I. Oven, T2)
K9804AC
(I. Oven, T3)
K9804AD
(I. Oven, T4)
K9804AE
(P. Oven, T1)
K9804AF
(P. Oven, T2)
K9804AG
(P. Oven, T3)
K9804AK
(P. Oven, T4)
13 TCD Card
K9804BA
14 FID Card
K9804CA
(6M, Methanizer)
K9804CB
(20M, Methanizer)
K9804CC
(60M, Methanizer)
K9804CD
(200M, Methanizer)
K9804CE
(600M, Methanizer)
K9804CF
(1G, Methanizer)
K9804CG
(2G, Methanizer)
K9804DA
(6M)
K9804DB
(20M)
K9804DC
(60M)
K9804DD
(200M)
K9804DE
(600M)
K9804DF
(1G)
K9804DG
(2G)
15 TEMP Card
K9804FA
(T1)
K9804FB
(T2)
K9804FC
(T3)
K9804FD
(T4)
16 FPD Card
K9804GA
17 Oven EV Board
K9804JA
(I. Oven)
K9804JB
(P. Oven)
18 Safety Board 4
K9804LA
(LSV, FPD)
K9804LB
(Oven)
K9804LC
(ATEX, LSV, FPD)
K9804LD
(ATEX, Oven)
Pressurized
19 Safety Board 1
K9800SA
(100 V, ATEX)
K9800SB
(100 V, TIIS·FM)
K9800SC
(200 V, ATEX)
K9800SD
(200 V, TIIS·FM)
20 Safety Board 2
K9800TA
(ATEX)
K9800TB
(TIIS·FM)
21 Surge Protector Board
K9800QM

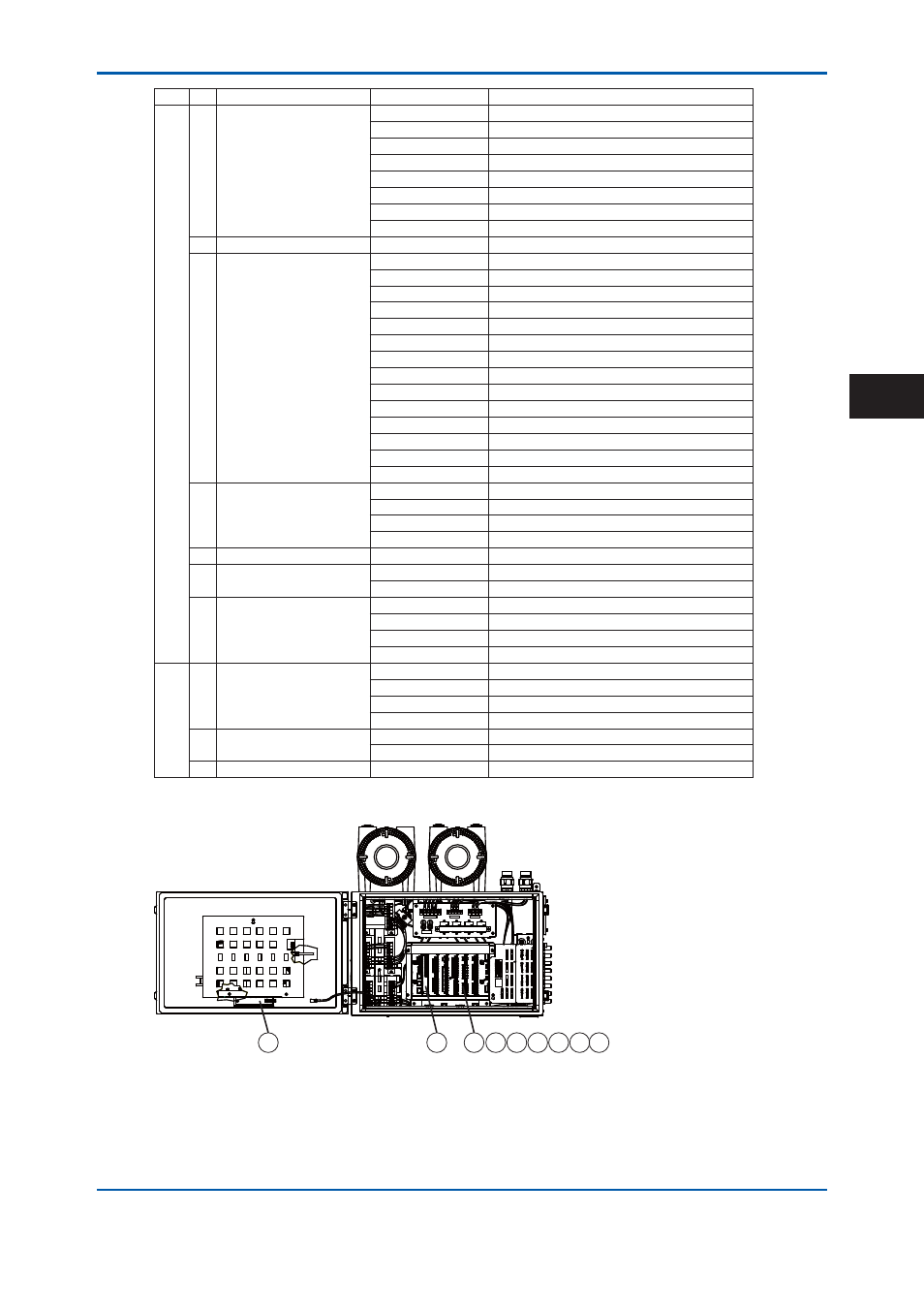

Replacement cards locations are shown in Figures 6.8 to 6.11.
1
F0608.ai
10
2
3
4
5
6
7 8
Figure 6.8
