<4. GC-HMI (touch panel)>
4-24
IM 11B08A01-01E
SEE ALSO
For operating modes, see ## Operating Mode on page 4-28.
4.3 Analyzer Map Screen
The analyzer map screen displays the GCM/SYS/stream confi guration in GC8000, as well as the
status of valves and detectors.
This analyzer map screen consists of two tabs: GCM Map tab and Stream Map tab.
Press the on the navigation bar to display the analyzer map screen.
F0426.ai
Press this icon.

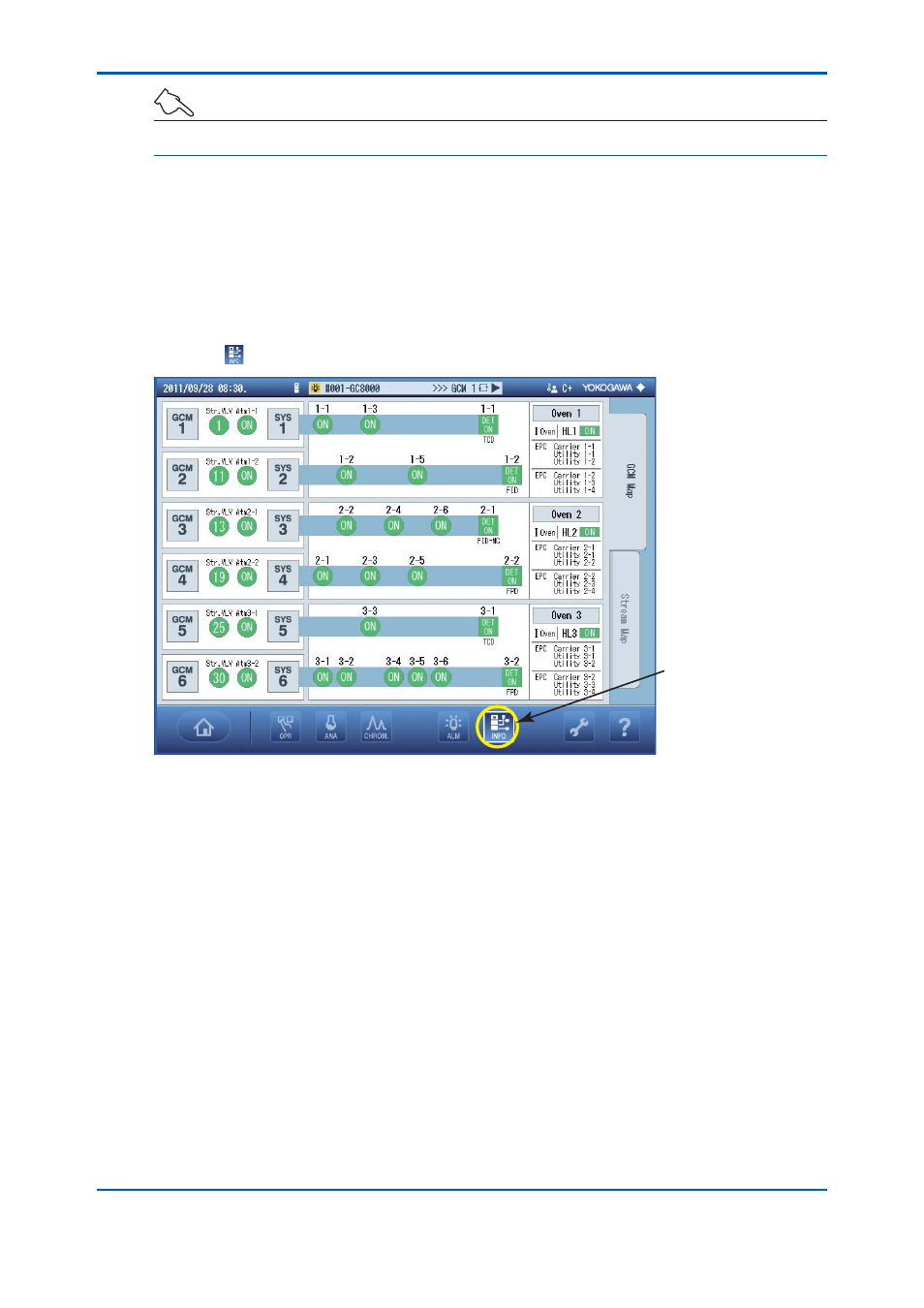

Figure 4.26 Analyzer Map Screen
4.3.1 GCM Map Tab
The GCM map tab displays the following information.
• List of valves and detectors assigned to GCM-SYS.
• List of valves and detectors associated with each oven.
• Type of oven: I for isothermal oven
• Status of stream valves: Streams 1 to 31, or OFF
• Presence and status of atmospheric pressure balancing valve
• Presence of EPC: Carrier n-1 to n-2, and Utility n-1 to n-4 (where n is oven number)
• Types of detectors: TCD, FID, FID-MC, FPD
• Presence and status of hydrogen limiting units: HLn (where n is oven number)
2nd Edition : May 11, 2012-00
