<2. Installation, Piping, and Wiring>
2-2
IM 11B08A01-01E
Unit: mm
Right side
Ventilation
opening
Carrier gas
cylinder
Piping and wiring
inlet
Drain pipe
outlet
Standard gas cylinder
Floor plan A - A’
Front
1600
1600
Window to let in
natural light
Analyzer
Standard gas
cylinder
A A’
Rear

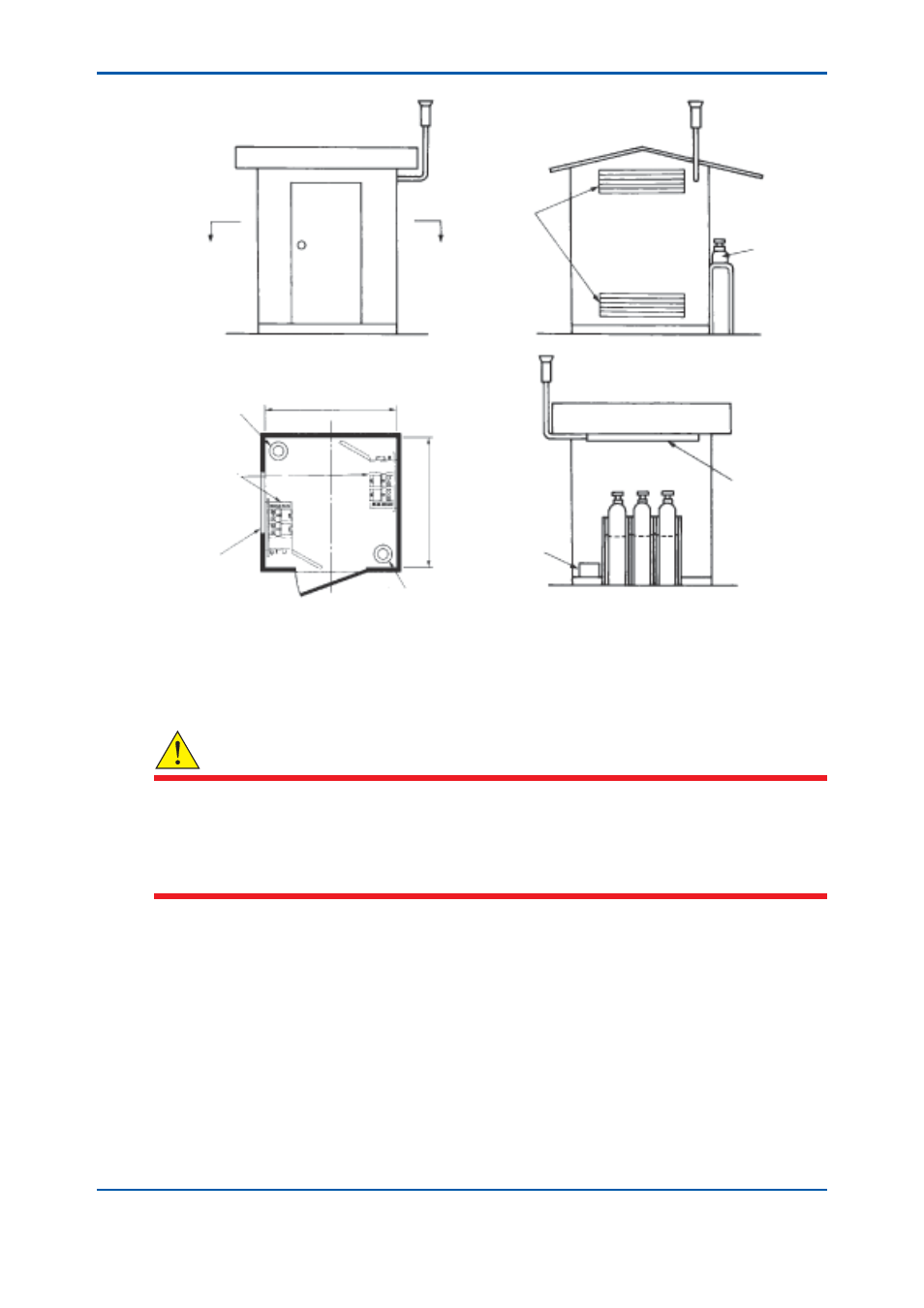

Figure 2.1 Example of analyzer house
(3) Unpacking
WARNING
• The GC8000 weighs about 100 to 220 kg. Unpack it near the installation site. Use a
transportation machine to move it. Handle it carefully to prevent it from falling.
• Up to two protection system may be included, each of which weighs approximately 7 kg, are
installed on top of the GC8000. Therefore, the center of gravity is higher than the center of
the analyzer body.
(4) Checking equipment
Check that the equipment has not been damaged during transportation. Contact Yokogawa if any
damage is found. Keep the packing such as crates.
 Model and Suffi x Codes
Check that the model and suffi x codes on the data plate on the left side of the GC8000 match
those on the order sheet. Refer to “1.6 Data Plate.”
 Accessories
Check the accessories listed in Table 2.1 and Table 2.2.
