• Man. (Center Value)
Set the Range, Center Value, and Range (+–,%).
The setting ranges are as follows:
Range: 0.001 to 9999.999
Center Value: 0.001 to 9999.999
Range (+–,%): 0.01 to 50.00
Vert. Axis Unit:
(B) Graph display
The graph is displayed based on the setup made in (A) Graph setup on page 4-57??.

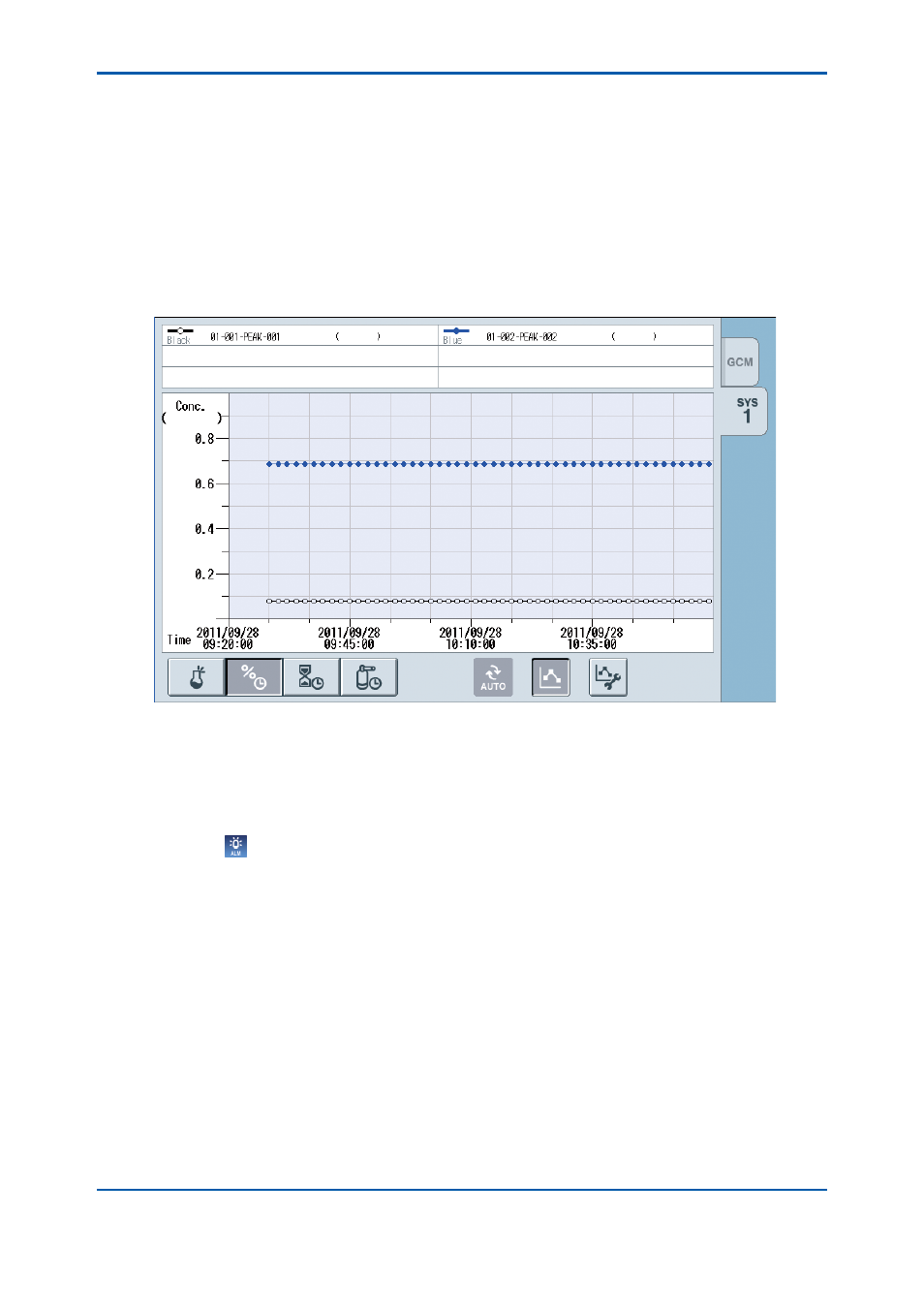

Figure 4.80
4.7 Alarm Screen
This screen displays information about the alarms that occurred with the GC8000.
Press the on the navigation bar to display the alarm screen.
