<4. GC-HMI (touch panel)>
4-4
IM 11B08A01-01E

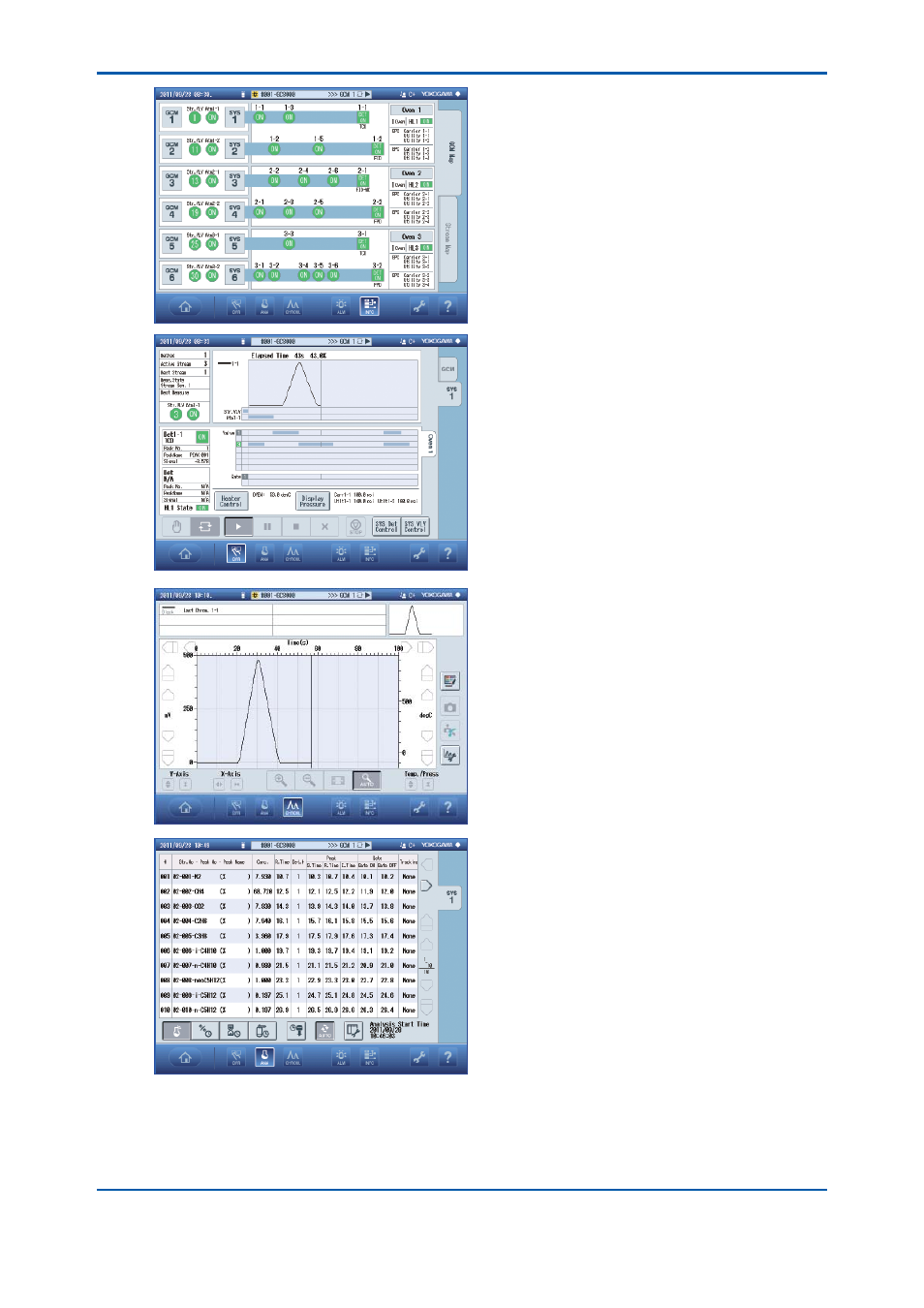

Analyzer Map Screen
Displays the GCM and SYS defi nitions,
as well as the equipment confi guration
including ovens, detectors, and valves.
(See 4.3 Analyzer Map Screen.)
Analyzer operation screen
Allows for controlling and monitoring the
operating status of the active GCM.
(See 4.4 Analyzer Operation Screen.)
Chromatogram screen
Displays the chromatogram for the active
GCM.
(See 4.5 Chromatogram Screen.)
Analysis Result Screen
Displays the analysis results (latest
analysis results, concentration analysis
history, retention time history, and
calibration factor history) obtained from the
active GCM.
(See 4.6 Analysis Result Screen.)
