<4. GC-HMI (touch panel)>
4-32
IM 11B08A01-01E

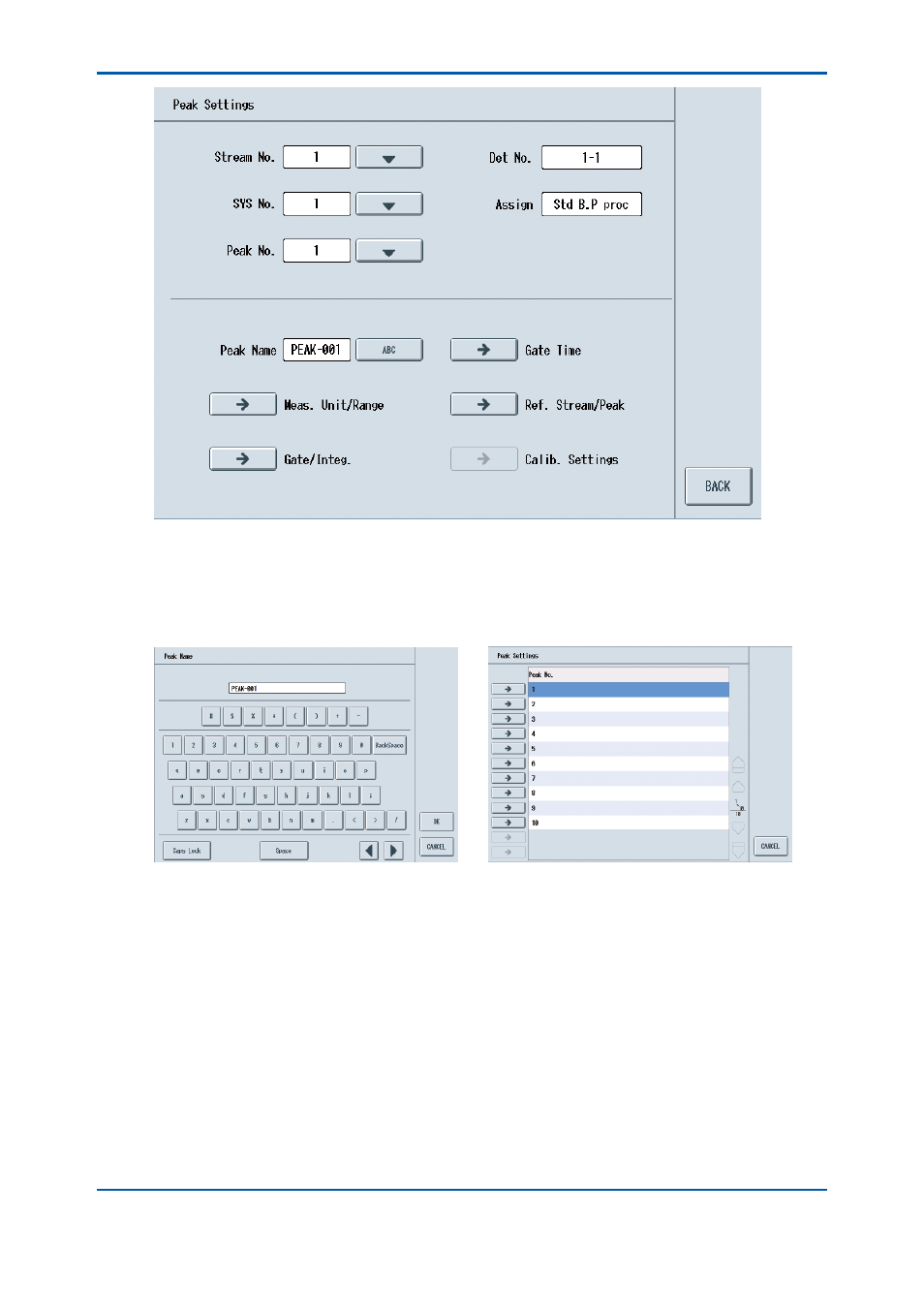

Figure 4.38 Peak Settings
 Peak Name
Set the name for the peak of the specifi ed stream number, SYS number, and peak number. The
name can be entered using up to eight ASCII alphanumeric characters.
Figure 4.39
 Peak std time/Gate times
Set the gate ON time, gate OFF time, and peak standard time for the peak of the specifi ed
stream number, SYS number, and peak number. The setting ranges are each 0.0 to 99999.9
seconds. The actual upper limit is time of its cycle time.
2nd Edition : May 11, 2012-00
