Yokogawa GC8000 Process Gas Chromatograph User Manual
Page 363
<6. Maintenance>
6-10
IM 11B08A01-01E

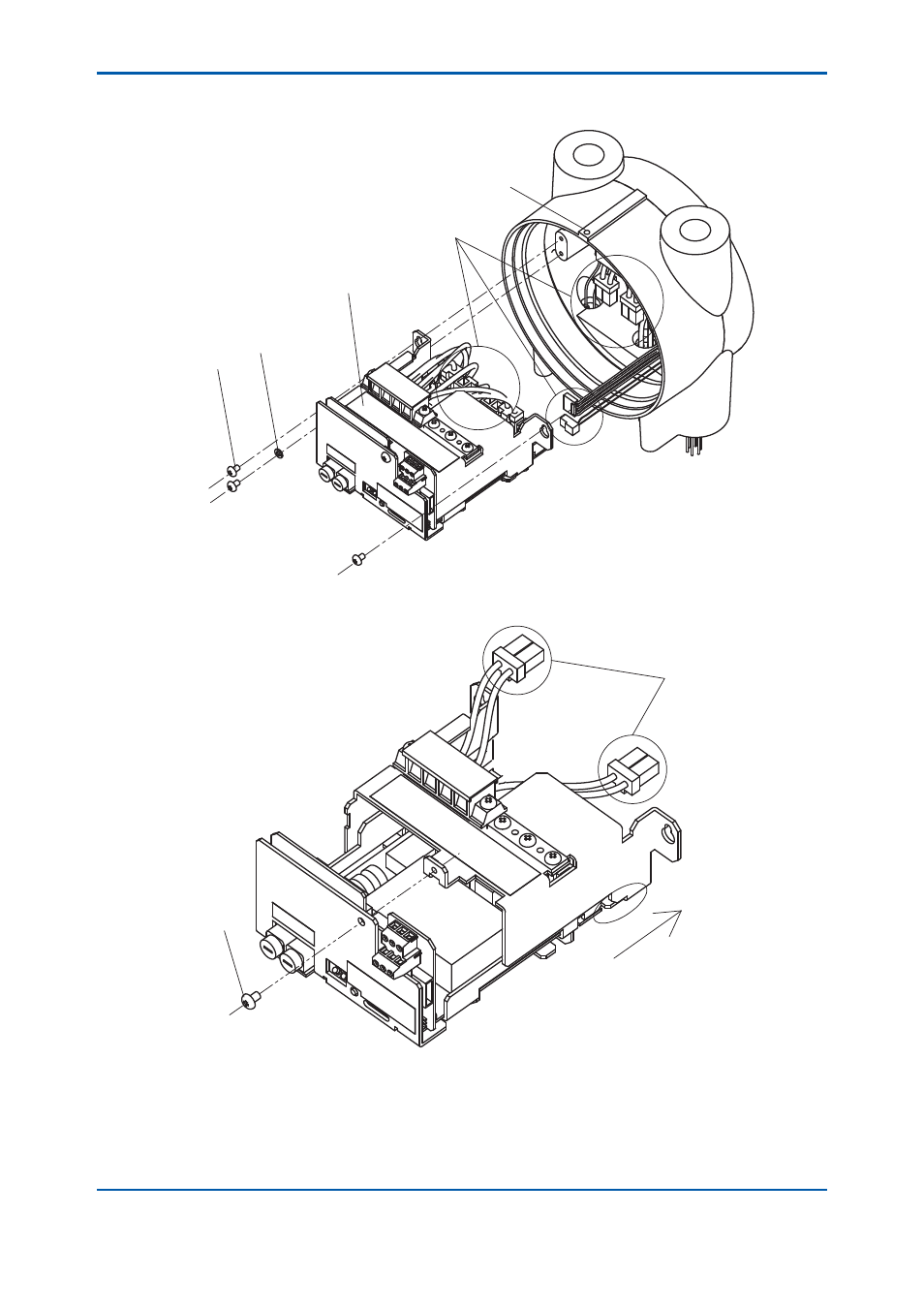

(5) Disconnect the customer wiring. Remove the screws shown below. Disconnect the wires
and remove the bracket.
Screw
Washer
Bracket
Wires
Locknut
(6) Disconnect the connectors from the board. Remove the screws. Slide out the sheet metal
part to remove.
Screw
Connectors
Slide
2nd Edition : May 11, 2012-00
