<1. Overview>
1-34
IM 11B08A01-01E
Connection
Registration
Connection
Registration
• Only one analyzer (control CPU) can be
connected to the GC-HMI at one time.
• Only one GC-HMI can be connected to
the analyzer (control CPU) at one time.

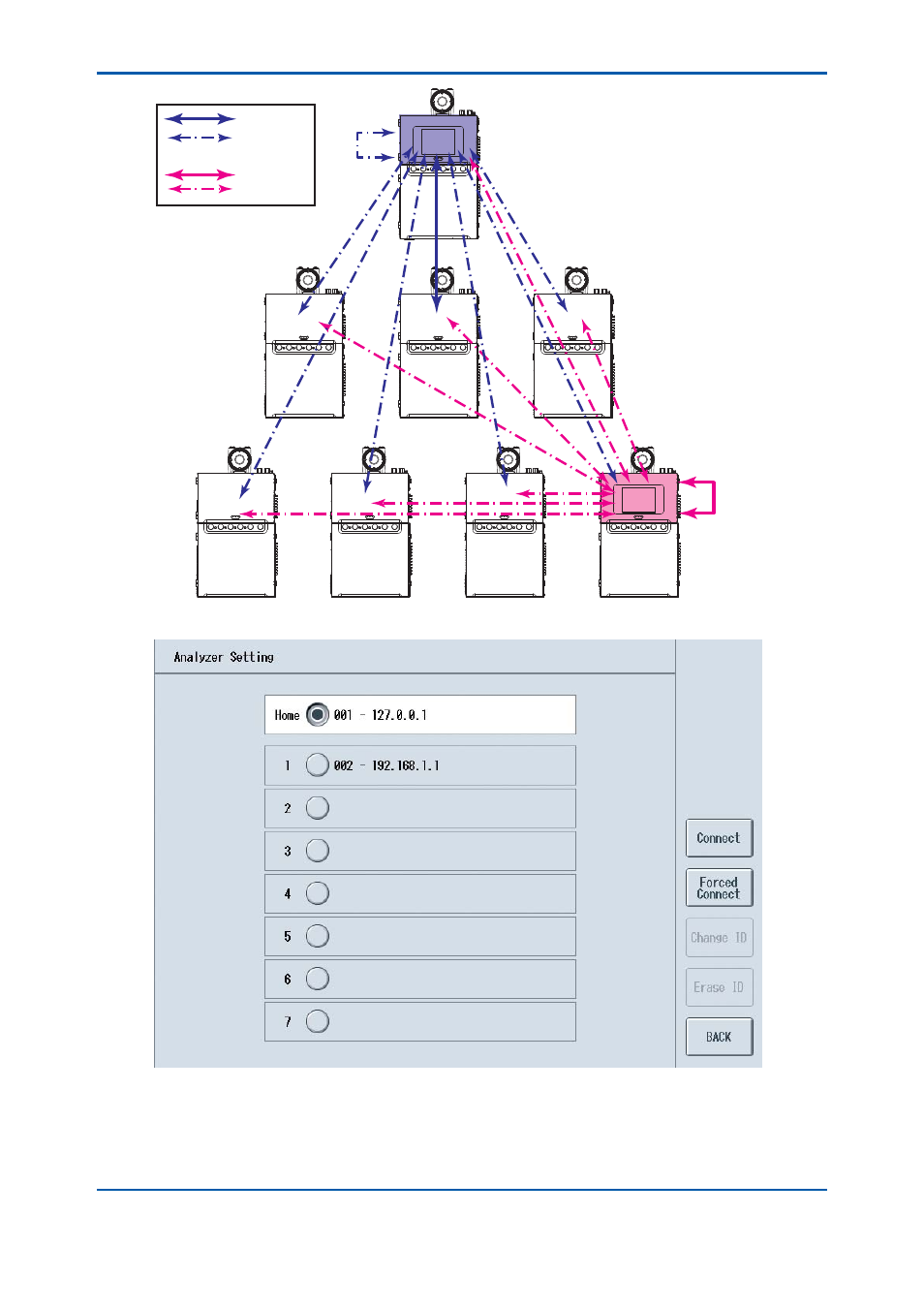

Figure 1.13 Example of registration and connection between the GC-HMI and analyzers
• Registration (including ID update/delete) of analyzers to be connected to the GC-HMI and the settings can be done on the
Analyzer Selecting screen.
• Home: the analyzer on which the GC-HMI is mounted
• 1 to 7: analyzers other than the above analyzer
Figure 1.14 Analyzer Selecting screen of the GC-HMI (touch panel)
2nd Edition : May 11, 2012-00
