<6. Maintenance>
6-29
IM 11B08A01-01E
K9409GC 120 V AC (for isothermal oven temperature of over 110°C)
K9409GH 120 V AC (for isothermal oven temperature of 110°C or below)
K9409GS 200 V AC
K9409GT 220 V AC
K9409GU 230 V AC
K9409GV 240 V AC
Heater cover
Heater
Nut
Washer
Heater guide Heater
Heater terminal
Mounting Screw (4)
Heater cover

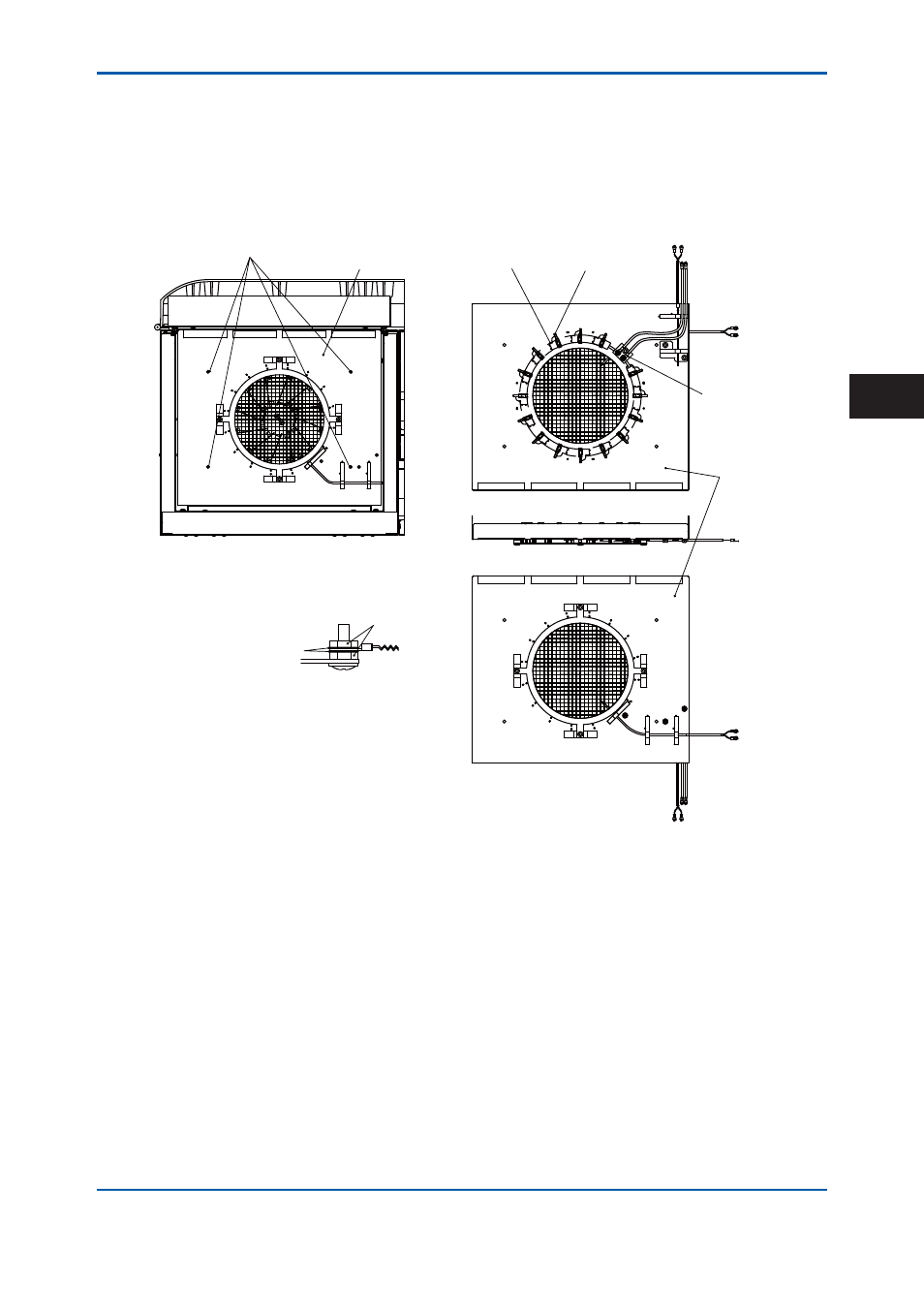

Figure 6.26 Heater for Isothermal Oven
(2) Temperature Sensor for Isothermal Oven
A single oven unit has two temperature sensors:
For control: controlling the temperature of the isothermal oven
For protection: detecting abnormally high temperature
The temperature sensor for the isothermal oven is a platinum resistance temperature detector
(Pt100 ohm).
(1) Stop the operation. (See “3.3.4 Stopping operation” for this procedure).
(2) Stop the supply of power.
